Figure 8 Fiber Optic Cable 24 48 Core Optical Fiber Cable OFC Aerial 96 Core Fiber Cable
As a self-supporting aerial fiber cable, figure 8 fiber optic cable is a kind of fiber optic cable that is suitable for
long-distance communication and inter-office communication. With steel stranded wire as the self-supporting part of the fiber
optic cable, it can meet the very high tensile strength during installation and operation.
Figure 8 shape and steel wire messenger also save the installation costs.

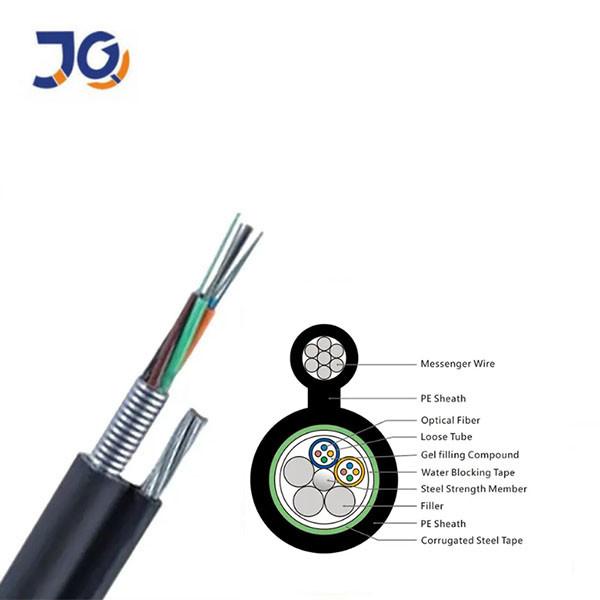

Figure 8 Stranded Lose Tube Overhead SM OS2 Single-Armored Single-Jacket 12 24 78 72 96 144 core fiber optical cable


Uni-Tube Non-Armored Figure 8 Fiber Cable 2-12 Cores



Fiber Optic G652D

Parameter	Specification
MFD (1310nm)	9.2±0.4 um
MFD (1550nm)	10.4±0.8 um
Cladding diameter	125±1.0um
Fiber diameter	235~255um, with UV coating, and colored to : 250±15um
Core/cladding concentricity error	≤ 0.5um
Coating/cladding concentricity error	≤ 12.0um
Cladding non circularity	≤ 1.0%
Cut off wavelength	λcc ≤1260nm
Attenuation coefficient	1310nm: 0.35dB/km max after cabling 1550nm: 0.21dB/km max after cabling
Bending-loss performance of optical fiber @1310nm&1550nm	≤0.05dB (100 turns around a mandrel of 50mm diameter)
Polarization mode dispersion maximum individual fibre	≤0.2ps/√km
Polarization mode dispersion link value	≤0.1ps/√km
Zero-dispersion wavelength	1300~1324nm
Zero-dispersion slope	≤0.092ps/nm2·km

Dimensions of Cable Constructions

Fiber count	Structure	Fibers per tube	Loose tube diameter (mm)	Steel wire diameter (mm)	Nominal Thickness of outer jacket (mm)	Cable diameter (mm)	Cable weight (kg/km)
4	1	4	2.0	2*1.0	1.8 ±0.2	8.0	56
6	1	6	2.0	2*1.0	1.8±0.2	8.0	58
12	1	12	2.0	2*1.0	1.8±0.2	8.0	58

Certification:

Company profile:

Guangzhou jiqian fiber optic cable co.,ltd is a high-tech company group engaged in researching, manufacturing, selling
communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable for 12years, with ISO9001, FCC, ROHS and CE certificates. We OEM or design any structure of fiber optic cable for you. The main products of our company are: optical fiber cables/FTTH Drop Cable. All of the products are widely used in telecom, railway and other communication products related department, exported to many countries and districts such as North/South America, Europe, Mideast and Southeast Asia.Africa
