Underwater Fiber Cable GYTA33 12 Cores G652D SM Stranded Steel Wire Armoured Fibre Optic Cable

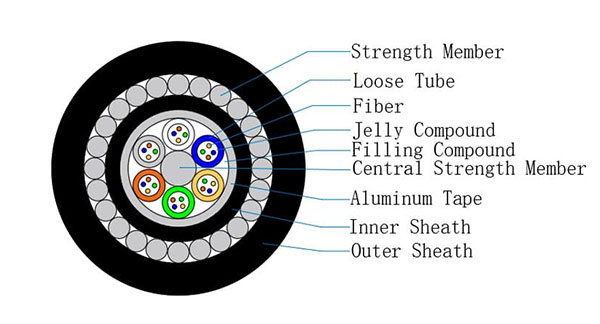

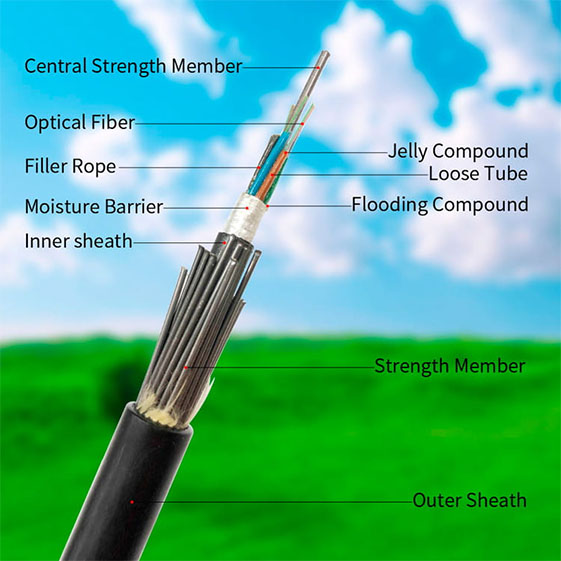

GYTA33 fiber optic cable is an underwater use fiber optic cable it is steel wires armored to be suitable for installation in harsh environment, GYTA33 armored optical fiber cable can also be direct buried underground.GYTA33 is with loose tube technology which makes the fibers good secondary excess length and allows the
fibers free movement in the tube. These features keep the fiber stress free while the cable is subjected for longitudinal stress.
Optimum mechanical protection such as high tensile, crush and impact resistant performances are achieved by the steel wire armor and the double jacket structure.

Fiber Parameters:

Item		Unit	Specification
Fiber Type			G.652D
Mode field diameter	1310nm	μm	9.2±0.4
	1550nm	μm	10.4±0.8
Cladding diameter		μm	125.0±1
Cladding non-circularity		%	≤1.0
Core/cladding concentricity error		μm	≤0.5
Coating diameter		μm	245±5
Coating non-Circularity		%	≤6.0
Coating/cladding concentricity error		μm	≤12.0
Cable cut-off wavelength		nm	≤1260
Attenuation Coefficient	1310nm	dB/km	≤0.36
	1550nm	dB/km	≤0.22
Proof stress level		kpsi	≥100

Lead time:Usually 7days,it depends on order quantity

Shipping methods:by sea LCL/FCL,It depends on order quantity

Company profile:

Guangzhou jiqian fiber optic cable co.,ltd is a high-tech company group engaged in researching, manufacturing, selling
communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable for 13 years, with ISO9001, FCC, ROHS and CE certificates. We OEM or design any structure of fiber optic cable for you. The main products of our company are: optical fiber cables/FTTH Drop Cable. All of the products are widely used in telecom, railway and other communication products related department, exported to many countries and districts such as North/South America,Mideast and Southeast Asia.Africa etc

PppPrinting:

Cable Printing:

Exhibition

Certification:

FAQ:

1.Are you the real manufacturer?
Yes. We are the real manufacturer with 13 years history.

2.What is your fiber brand ?
YOFC/Fiberhome



3.Do you provide samples?is it free or charged?Yes,samples are for free,just pay for freight

4.Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.

5.What is your warranty period?
25-30 years for outdoor fiber optic cable

6.Which kind of certification you have ?
ISO9001,FCC,ROHS,CE

7.What is your delivery time?
Usually 5-7 working days,it depends on order quantity

8.What is your payment way?
T/T, L/C, Western Union

9.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.

 Guangzhou jiqian fiber optic cable Co., Ltd (Guangzhou haiso fiber optic cable co.,ltd) is a fiber optic communication Manufacturer that started in 2011 is located at Guangzhou city ,and provides a professional fiber optic cable design and after-sales service for all over the world.

Our team full of spirituality and vitality, bloody and soulful!! For the cutsomer to the colleague must be the customer's service!!

All of our encounters are sincere links heart to heart!

Our advantage, with a history of over 10years, 5years export experience, ship to more than 30countries, more than 40 employees.

Choosing JQ is not only our success,but also yours!!!
