Product Description:

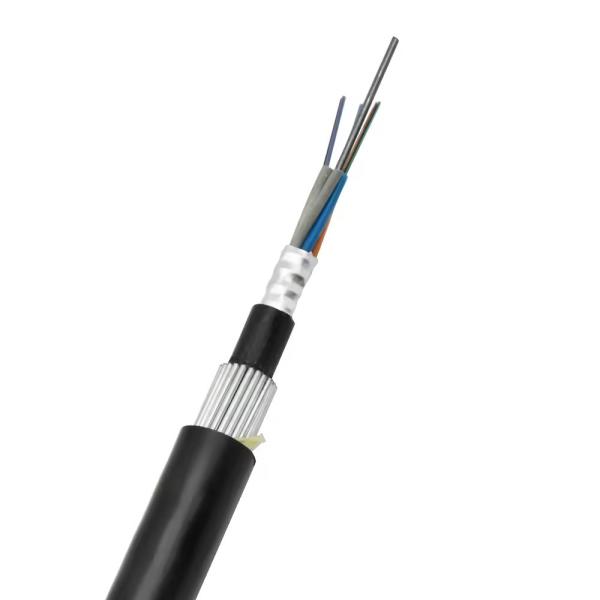

The structure of the GYTA33 optic cable is to sleeve the optical
fiber into the PBT loose tube and fill with the thixotropic
compound. The central reinforcement of the cable core is a steel
wire (a large core number structure optical cable needs to be
extruded with a layer of PE cushion), and the loose tube is twisted
around the central reinforcement by SZ stranding. The gaps in the
cable core are filled with water-blocking compounds. The outer
sheath is armored with a single thin round steel wire and extruded
with a layer of polyethylene outer sheath.
Features:
1.High quality optical fiber provides good transmission
performance.
2.Accurate fiber excess length control ensures excellent mechanical
and temperature performance.
3.Special filling gel filled loose tubes provide perfect optical
fiber protection.
4.All section water blocking ensure the cable core reliable
performance of moisture-proof and water block.
5.Corrosion resistance phosphated steel wire with high Young's
modulus as central strength member gives desirable tensile
strength.
6.Longitudinally Armor with both side coated aluminum tape and
stranded steel wires armoring meet the requirements of high crush
resistance, tensile strength, bulletproof property, heavy duty
direct bury underwater installation.
7.Strict craft and raw material control enable lifespan over 30
years.
Application:
* Long distance communication
* Communication between central offices
* underwater area.
Specification:
| Mechanical and Environmental Characteristics |
| Items | Unite | Specifications |
| Tension(Long Term) | N | 4000 |
| Tension(Short Term) | N | 10000 |
| Crush(Long Term) | N/10cm | 3000 |
| Crush(Short Term) | N/10cm | 5000 |
| Min. Bend Radius(Dynamic) | mm | 20D |
| Min. Bend Radius(Static) | mm | 10D |
| Installation Temperature | ℃ | -10～+60 |
| Operating Temperature | ℃ | -40～+60 |
| Storage Temperature | ℃ | -40～+60 |
| Item | Unit | Specification |
| Fiber Type | G.652D |
Mode field diameter | 1310nm | mm | 9.2±0.4 |
| 1550nm | mm | 10.4±0.8 |
| Cladding diameter | mm | 125.0±1 |
| Cladding non-circularity | % | ≤1.0 |
| Core/cladding concentricity error | mm | ≤0.5 |
| Coating diameter | mm | 245±5 |
| Coating non-Circularity | % | ≤6.0 |
| Coating/cladding concentricity error | mm | ≤12.0 |
| Cable cut-off wavelength | nm | ≤1260 |
Attenuation Coefficient | 1310nm | dB/km | ≤0.36 |
| 1550nm | dB/km | ≤0.22 |
| Proof stress level | kpsi | ≥100 |
