    Photoelectric Hybrid fiber optic cable GDTS armoured with corrugated steel tape

    Ask Lasest Price
    Brand Name : JQ/OEM
    Model Number : GDTS
    Certification : CE/ISO9001
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 8000 kilometers per month
    Delivery Time : 2-5days
    • Product Details
    • Company Profile

    Photoelectric Hybrid fiber optic cable GDTS armoured with corrugated steel tape

    Product Description:

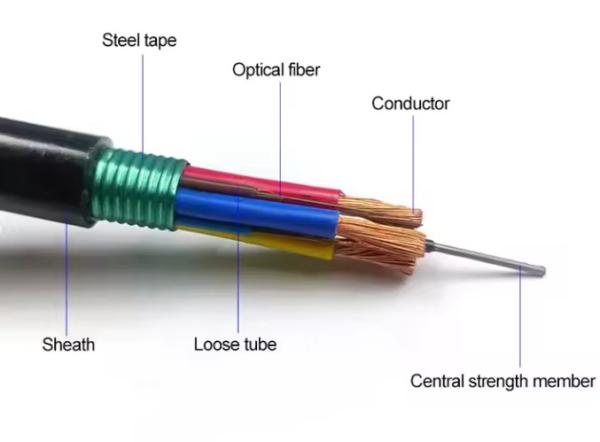

    The structure of the GDTS photoelectric hybrid cable is that single mode or multi-mode fiber is packed into a loose tube made of a high-modulus polyester material, and the tube is filled with a waterproof compound. At the center of the cable core is a metal reinforcement core, and for some cables with a number of cores, a layer of polyethylene needs to be squeezed on the outside of the metal reinforcement core. A compact circular cable core is formed by stranding the loose sleeve and the required insulating copper wire around the central reinforcing core, and the gap in the cable core is filled with water-blocking filler. Double chrome coated plastic steel strip (PSP) rolled longitudinally and extruded polyethylene sheath to form cable.

    Photoelectric Hybrid fiber optic cable GDTS armoured with corrugated steel tape


    Characteristics:

    • Photoelectric integration, solve the problem of equipment power consumption and signal transmission, and provide centralized monitoring and maintenance of equipment power supply

    • Improve power supply manageability and reduce power supply coordination and maintenance

    • Reduce procurement costs and save construction costs

    • Precisely controlled fiber residual length ensures good tensile and temperature characteristics of the cable

    • Mainly used in distributed base station DC remote supply system, connecting BBU and RRU.

    Application:

    he cable Laying method:

    Suitable for self-supporting Aerial.

    Suitable for long-distance communication, local trunk line, CATV & computernetworks system.

    Specification:

    itemvalue
    Model NumberGDTS
    TypeOutdoor Fiber Optic Cable
    Place of OriginGuangdong,China
    Brand Namejiqian
    Number of Conductors≥ 10
    Fiber count2-288 Cores
    Fiber TypeG652D Single mode or as your request
    Central strength membersteel wire
    Loose tubeJelly filled
    Loose Tube MaterialPBT
    ArmouredSteel tape
    Outer SheathPE
    Cable StructureMulti-Loose Tube Steel Tape armor
    ColorBlack or as your need
    PackagePlywood Reel/customized
    Installationaerial, in duct
    operating temperature-40 to +70
    CertificationCE/ROHS/ISO9001 /ANATEL
    Structure and Technical Specifications:
    FiberNominalNominalMax FiberMax No.Allowable TensileAllowable Crush
    CountDiameterWeightPer Tubeof(Tubes+Load(N)Resistance(N/100mm)
    (mm)(kg/km)fillers)Short TermLong TermShort TermLong Term
    2~3610.31096615006001000300
    38~7211.514512615006001000300
    74~9613.517512815006001000300
    98~12014.8209121017006001000300
    122~14416.6249121220006001000300
    146~21616.72541218(2 layers)20006001000300
    218~288193251224(2 layers)25006001000300
