Brand Name : | JQ/OEM |
Model Number : | GYTZA / GYTZS |
Certification : | CE/ISO9001 |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 8000 kilometers per month |
Delivery Time : | 2-5days |
Product Description:

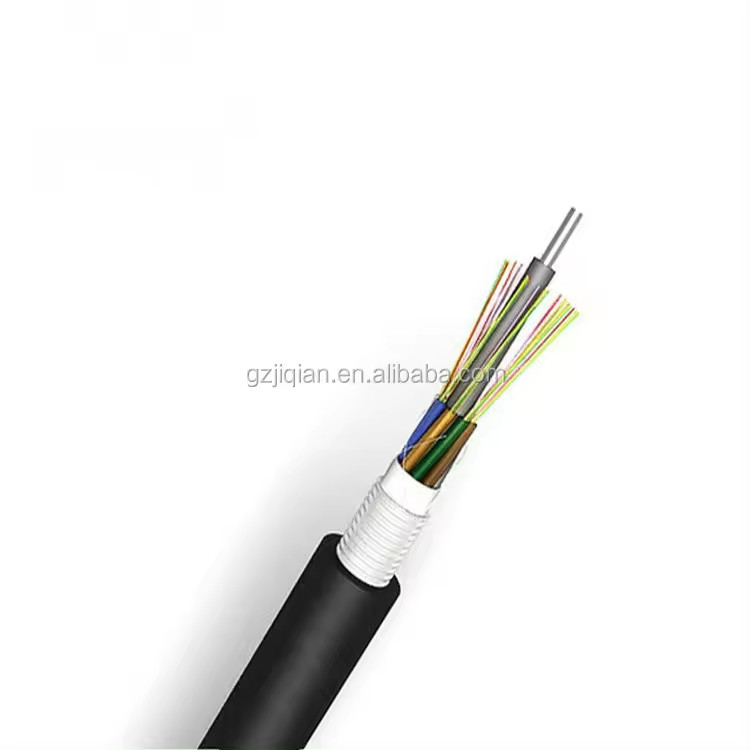

The GYTZS cable is constructed by placing 250µm of fiber in a loose tube made of a high modulus material, which is filled with a waterproof compound. At the center of the cable core is a metal reinforcement core, and for some cables with a number of cores, a layer of polyethylene (PE) needs to be squeezed on the outside of the metal reinforcement core. The loose sleeve and the filling rope are twisted around the central reinforcing core to form a compact and circular cable core, and the gap in the cable core is filled with water-blocking filler. Two sided coated plastic steel tape (PSP) longitudinally wrapped and extruded flame retardant sheath to form a cable.
GYTZA type cable loose jacket layer stranding, key protection cable, full cross section water resistance structure, double coated aluminum strip longitudinal wrap, to ensure the radial moisture resistance of the cable, improve the resistance to side pressure of the cable, the center steel wire reinforcement core, the cable core filled with special oil paste double coated aluminum strip bonded to PE inner sheath, rolled steel strip bonded to flame retardant outer sheath.
Characteristics:
• Good mechanical properties and temperature characteristics.
• The loose tube material itself has good hydrolysis resistance and high strength.
• The tube is filled with special oil paste, which provides critical protection for the optical fiber.
• Specially designed tight cable structure, effectively prevent sleeve retraction.
• Good compression resistance and flexibility.
• Special sheath with excellent flame retardant performance.
Application:
■Adapted to Outdoor distribution.
■Long distance and local area network communication.
■Suitable for aerial ,in duct.
■Suitable for long distance, LAN communication.
Specification:
item | value |
Model Number | GYZTS/GYZTA |
Type | Outdoor Fiber Optic Cable |
Place of Origin | Guangdong,China |
Brand Name | jiqian |
Number of Conductors | ≥ 10 |
Fiber count | 2-288 Cores |
Fiber Type | G652D Single mode or as your request |
Central strength member | Steel wire |
Armoured | Steel /Al tape |
Outer Sheath | LZSH |
Cable Structure | Multi-Loose Tube Steel /Al Tape armor |
Color | Black or as your need |
Installation | aerial, in duct |
Certification | CE/ROHS/ISO9001 /ANATEL |
Fiber | Nominal | Nominal | Max Fiber | Max No. | Allowable Tensile | Allowable Crush | ||
Count | Diameter | Weight | Per Tube | of(Tubes+ | Load(N) | Resistance(N/100mm) | ||
(mm) | (kg/km) | fillers) | Short Term | Long Term | Short Term | Long Term | ||
2~36 | 10.3 | 109 | 6 | 6 | 1500 | 600 | 1000 | 300 |
38~72 | 11.5 | 145 | 12 | 6 | 1500 | 600 | 1000 | 300 |
74~96 | 13.5 | 175 | 12 | 8 | 1500 | 600 | 1000 | 300 |
98~120 | 14.8 | 209 | 12 | 10 | 1700 | 600 | 1000 | 300 |
122~144 | 16.6 | 249 | 12 | 12 | 2000 | 600 | 1000 | 300 |
146~216 | 16.7 | 254 | 12 | 18(2 layers) | 2000 | 600 | 1000 | 300 |
218~288 | 19 | 325 | 12 | 24(2 layers) | 2500 | 600 | 1000 | 300 |
Company Profile:
Guangzhou Jiqian Fiber Optic Cable Co.Ltd. is located in 2nd
Floor,Building B3,Building 3 No.43 Lixin 9th Road,Xintang
Town,Zengcheng District,Guangzhou city,Guangdong province,China.It
is a large-scale high-tech specialized joint-stock enterprise that
integrates scientific research, development,production, and sales.
It specializes in producing various types and specifications of
optical cables with 2-288 cores. The company adheres to the
corporate spirit of "integrity, speed, flexibility, efficiency, and
innovation", and strives for perfection, appreciation for
customers, and paving the way for success, Adhere to the standard
that "customer satisfaction is the most important measure of our
performance". We promise to work together with you with
high-quality products, discounted prices,and first-class services
to create a brilliant career.
We sincerely welcome customers all over the world to visit our
factory and build long term relationship with each other.
WHY CHOOSE US:
Certification:
FAQ:
1. who are we?
We are based in Guangdong, China, start from 2017,sell to
Africa(33.00%),South America(17.00%),Western Europe(17.00%),Mid
East(17.00%),Southeast Asia(9.00%),South Asia(7.00%). There are
total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fiber Optic Cable, FTTH Drop Cable, Communication Cables,
Outdoor/Indoor Fiber Cable
4. what services can we provide?
Accepted Delivery Terms: FOB,EXW;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western
Union,Cash;
Language Spoken:English,Chinese
![]() |
