24 Cores Figure 8 GYTC8A GYTC8S Self- supporting Aerial Armored Fiber Optic Cable

Guangzhou Jiqian Fiber Optic Cable Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 24 Cores Figure 8 GYTC8A GYTC8S Self- supporting Aerial Armored Fiber Optic Cable from wholesalers

    Buy cheap 24 Cores Figure 8 GYTC8A GYTC8S Self- supporting Aerial Armored Fiber Optic Cable from wholesalers
    • Buy cheap 24 Cores Figure 8 GYTC8A GYTC8S Self- supporting Aerial Armored Fiber Optic Cable from wholesalers
    • Buy cheap 24 Cores Figure 8 GYTC8A GYTC8S Self- supporting Aerial Armored Fiber Optic Cable from wholesalers
    • Buy cheap 24 Cores Figure 8 GYTC8A GYTC8S Self- supporting Aerial Armored Fiber Optic Cable from wholesalers
    • Buy cheap 24 Cores Figure 8 GYTC8A GYTC8S Self- supporting Aerial Armored Fiber Optic Cable from wholesalers
    • Buy cheap 24 Cores Figure 8 GYTC8A GYTC8S Self- supporting Aerial Armored Fiber Optic Cable from wholesalers

    24 Cores Figure 8 GYTC8A GYTC8S Self- supporting Aerial Armored Fiber Optic Cable

    Ask Lasest Price
    Brand Name : JQ/OEM
    Model Number : GYTC8S GYTC8A
    Certification : CE/ISO9001
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 8000 kilometers per month
    Delivery Time : 2-5days
    • Product Details
    • Company Profile

    24 Cores Figure 8 GYTC8A GYTC8S Self- supporting Aerial Armored Fiber Optic Cable

    Product Description:

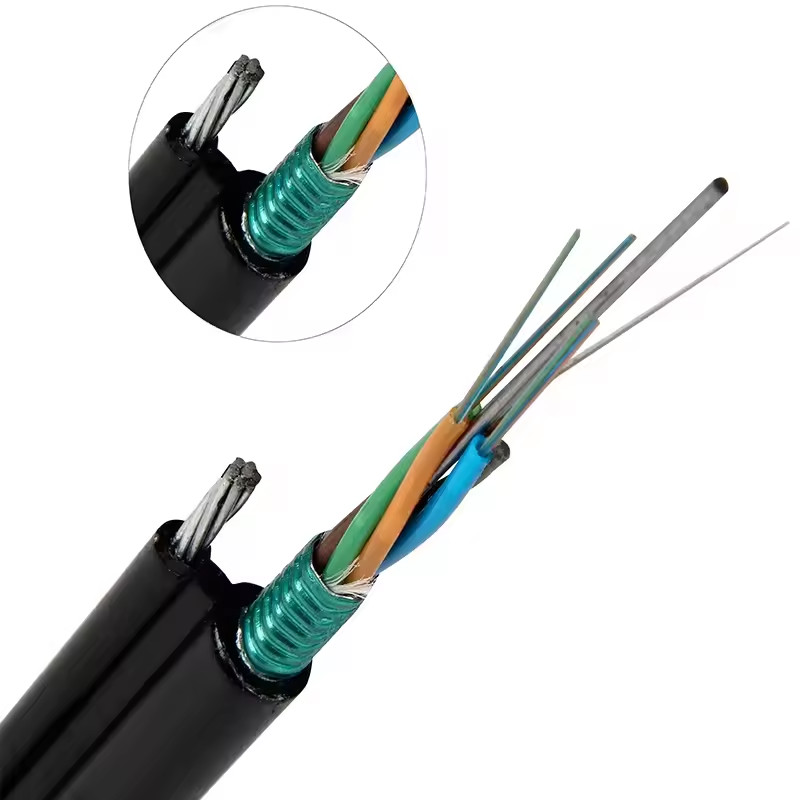

    GYTC8A Aerial Self-supporting Fiber Optic Cable
    The fibers, 250 um, are positioned in a loose tube made of a high modulus plastic.The tubes are filled with a water-resistantfilling compound. A steel wire locates in the center of core as a metallic strength member. The tubes (and fillers) are strandedaround the strength member into a compact and circular cable core. After an Aluminum Polyethylene Laminate(APL) moisture barrieris applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed witha polyethylene (PE) sheath to be figure 8 structure.

    24 Cores Figure 8 GYTC8A GYTC8S Self- supporting Aerial Armored Fiber Optic Cable24 Cores Figure 8 GYTC8A GYTC8S Self- supporting Aerial Armored Fiber Optic Cable

    Characteristics:

    ■ High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cast. ■ Good mechanical and temperature performance High strength loose tube that is hydrolysis resistant.
    ■ Special tube lling compound ensure a critical protection
    ■ Small cable diameter, light cable weight, self-supporting, easily to install

    The following measures are taken to ensure the cable watertight:
    -Steel wire used as the central strength member.
    -Loose tube lling compound 100% cable core lling.
    -APL moisture barrier.

    Application:
    * Adopted to outdoor distribution.
    * Suitable for aerial.
    * Long distance and local area network communication.

    Specification:

    itemvalue
    Model NumberGYTC8A/GYTC8S
    TypeOutdoor Fiber Optic Cable
    Place of OriginGuangdong,China
    Brand Namejiqian
    Structuremulti loose tube
    Number of Conductors≥ 10
    Fiber count2-144 Cores
    Fiber TypeG652D Single mode or as your request
    Central strength membersteel wire
    Loose tubeJelly filled
    Loose tubePBT
    ArmorAl /Steel tape armored
    Jacket SheathPE
    ColorBlack or as your need
    PackagePlywood Reel/customized
    ApplicationAerial,Overhead
    operating temperature-40 to +70
    CertificationCE/ROHS/ISO9001 /ANATEL


    Structure and Technical Specifications:

    ItemsUnitSpecifications
    Tension(Long Term)N600
    Tension(Short Term)N1500
    Crush(Long Term)N/10cm300
    Crush(Short Term)N/10cm1000
    Min. Bend Radius(Dynamic)mm20D
    Min. Bend Radius(Static)mm10D
    Installation TemperatureºC-20~+60
    Operating TemperatureºC-40~+70
    Storage TemperatureºC-40~+70
    Cable TypeFiber CountCable DiameterCable Weight Kg/kmSupporting Wire SpecConnection Diameter mmTensile StrengthCrush Resistance N/100mBending Radius
    mmNmm
    GYXTC8S2~127.0×14.0118ф1.0mm×7High * width3500/70001000/300015D/30D
    steel strand3.0×2.5
    GYXTC8S14~248.0×15.1129ф1.0mm×7High * width 3.0×2.53500/70001000/300015D/30D
    steel strand

    Company Profile:

    Guangzhou Jiqian Fiber Optic Cable Co.Ltd. is located in 2nd Floor,Building B3,Building 3 No.43 Lixin 9th Road,Xintang Town,Zengcheng District,Guangzhou city,Guangdong province,China.It is a large-scale high-tech specialized joint-stock enterprise that integrates scientific research, development,production, and sales. It specializes in producing various types and specifications of optical cables with 2-288 cores. The company adheres to the corporate spirit of "integrity, speed, flexibility, efficiency, and innovation", and strives for perfection, appreciation for customers, and paving the way for success, Adhere to the standard that "customer satisfaction is the most important measure of our performance". We promise to work together with you with high-quality products, discounted prices,and first-class services to create a brilliant career.
    We sincerely welcome customers all over the world to visit our factory and build long term relationship with each other.

    24 Cores Figure 8 GYTC8A GYTC8S Self- supporting Aerial Armored Fiber Optic Cable24 Cores Figure 8 GYTC8A GYTC8S Self- supporting Aerial Armored Fiber Optic Cable

    WHY CHOOSE US:

    24 Cores Figure 8 GYTC8A GYTC8S Self- supporting Aerial Armored Fiber Optic Cable

    Certification:

    24 Cores Figure 8 GYTC8A GYTC8S Self- supporting Aerial Armored Fiber Optic Cable

    FAQ:

    1. who are we?
    We are based in Guangdong, China, start from 2017,sell to Africa(33.00%),South America(17.00%),Western Europe(17.00%),Mid East(17.00%),Southeast Asia(9.00%),South Asia(7.00%). There are total about 11-50 people in our office.
    2. how can we guarantee quality?
    Always a pre-production sample before mass production;
    Always final Inspection before shipment;
    3.what can you buy from us?
    Fiber Optic Cable, FTTH Drop Cable, Communication Cables, Outdoor/Indoor Fiber Cable
    4. what services can we provide?
    Accepted Delivery Terms: FOB,EXW;
    Accepted Payment Currency:USD,CNY;
    Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
    Language Spoken:English,Chinese

    5.MOQ: what is your minimum quantity?
    -MOQ : 1KM
    6.Can I get a sample?
    -Yes, we provide FREE sample and you just need to pay for express freight.
    7.Accept OEM or ODM?
    -Yes,we're manufacturer. And we have our own Engineering Department. You just need to tell us your requirements.
    8.What is your delivery time?
    -The general delivery time is 3-7 days after order confirmed. It depends on the order quantity.
    We Support OEM and Customize products.
    Welcome to your inquiry! Welcome to visit our facotry!
