Product Description:

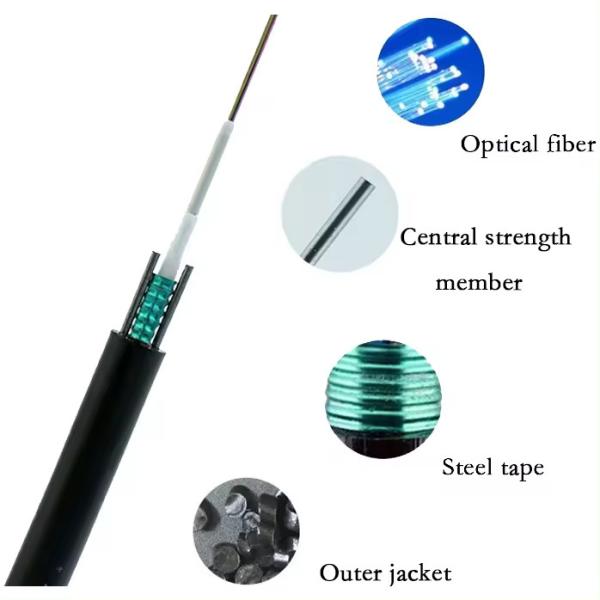

The center of the central tube type optical cable is a loose tube, and the outer part of the loose tube is longitudinally wrapped with plastic coated steel tape. Place two parallel steel wires on both sides of the steel strip to ensure tensile strength. The reinforcing components are located around the loose tube, and waterproof materials are filled between the PSP and the loose tube to ensure the compactness and waterproofing of the cable.
■ Central loose tube structure, gel filled inside.
■ Fibers concentrated in the center of the cable, strength members on both sides of the outer sheath.
■ Water-blocking layer between the steel wire and the cable core.
■ Double-sided plastic-coated corrugated steel tape-polyethylene bonded outer sheath.
■Double steel wires, increases the strength tensile.
Characteristics:
■ Small diameter, light weight, flexible structure.
■ Metal reinforcement, oil paste filling, steel tape armouring, loose nesting layer.
■ Single tube gel filled structure provides excellent fiber protection.
■ Two parallel steel wires ensure tensile strength.
■ Excellent mechanical and high temperature resistance.
■ Excellent water and moisture resistance.
■ Excellent resistance to ultraviolet radiation
■ Suitable for various construction environments, and has good environmental performance.
Application:
1. Suitable for outdoor distribution.
2. Suitable for overhead and pipeline laying methods.
3. Long-distance and LAN communication.
Specification:
| No. of cable | GYXTW-12B1.3 |
| Fiber Model | G.652D |
| Strength Member | Material | Steel wires |
| Diameter(±0.05)mm | 1MM |
| Loose Tube | Material | PBT |
| Diameter(±0.06)mm | 1.85 |
| Thickness(±0.03)mm | 0.35 |
| The Max.Core NO./Tube | 12 or 24 |
| Outer Sheath | Material | PE |
| Cable Diameter(±0.2)mm | 8MM |
| Cable Weight(±5)kg/km | 78 |
| Min. bending radius | Without Tension | 10.0×Cable-φ |
| Under Maximum Tension | 20.0×Cable-φ |
| Temperature range | Installation | -20~+60 |
| (℃) | Transport&Storage | -40~+70 |
| | Operation | -40~+70 |
