    JET 2-12 core outdoor optical fiber cable no mental manufacture supply

    Ask Lasest Price
    Brand Name : JQ
    Model Number : JET
    Certification : CE/ISO9001
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 8000 kilometers per month
    Delivery Time : 2-5days
    • Product Details
    • Company Profile

    JET 2-12 core outdoor optical fiber cable no mental manufacture supply

    Product Description:

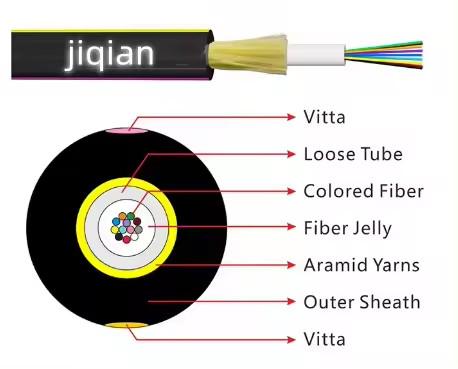

    The fibers,200/250um, either of single-mode or multimode type, are positioned in aloose tube made of a high modulus plastic. The tubes are filled with a water-resistantfilling compound. A layer of aramid yarn or high strength glass is applied around thecable core as additional strength member. Then, the cable is completed with a black (color HDPE sheath.
    ·JET cable is relatively soft, with a certain tension, indoor and outdoor universal. Overhead, through the
    pipe are more convenient.

    JET 2-12 core outdoor optical fiber cable no mental manufacture supply

    Characteristics:

    · Specially designed compact structure is good at preventing loose tubes from shrinking.
    · Aramid yarn ensures good performance of tensile strength.
    · Loose tube filling compound ensure good moisture resistance performance.
    · Good flexibility.
    · High dense fiber packed, small diameter and light weight; it's the better option for blowing installation process.

    Specification:

    Model Number
    JET
    Fiber count
    2-12 Cores
    Fiber Type
    G652D or as your need
    Structure
    Central loose Tube
    Jacket material
    PE /HDPE/LSZH
    Jacket color
    Black
    Loose tube Material
    PBT or as your need
    Armored or not
    Non-armoure, aramid yarn strength member
    Certification
    CE/ROHS/ISO9001
    Application
    FTTH indoor outdoor
    1310nm
    ≤0.34dB
    1550nm
    ≤0.21dB
    Package
    Plywood drum
    Operating environment:
    - 40 ~ 60 ℃
    Place of Origin
    Guangdong, China


    Structure and Technical Specifications:

    Mechanical and Environmental Characteristics
    Items
    Unite
    Specifications
    Tension
    (Long Term)
    N
    300
    Tension
    (Short Term)
    N
    800
    Crush
    (Long Term)
    N/10cm
    500
    Crush
    (Short Term)
    N/10cm
    1000
    Min. Bend Radius(Dynamic)
    mm
    20D
    Min. Bend Radius(Static)
    mm
    10D
    Installation Temperature
    -10~+60
    Operating Temperature
    -40~+60
    Storage Temperature
    -40~+60
