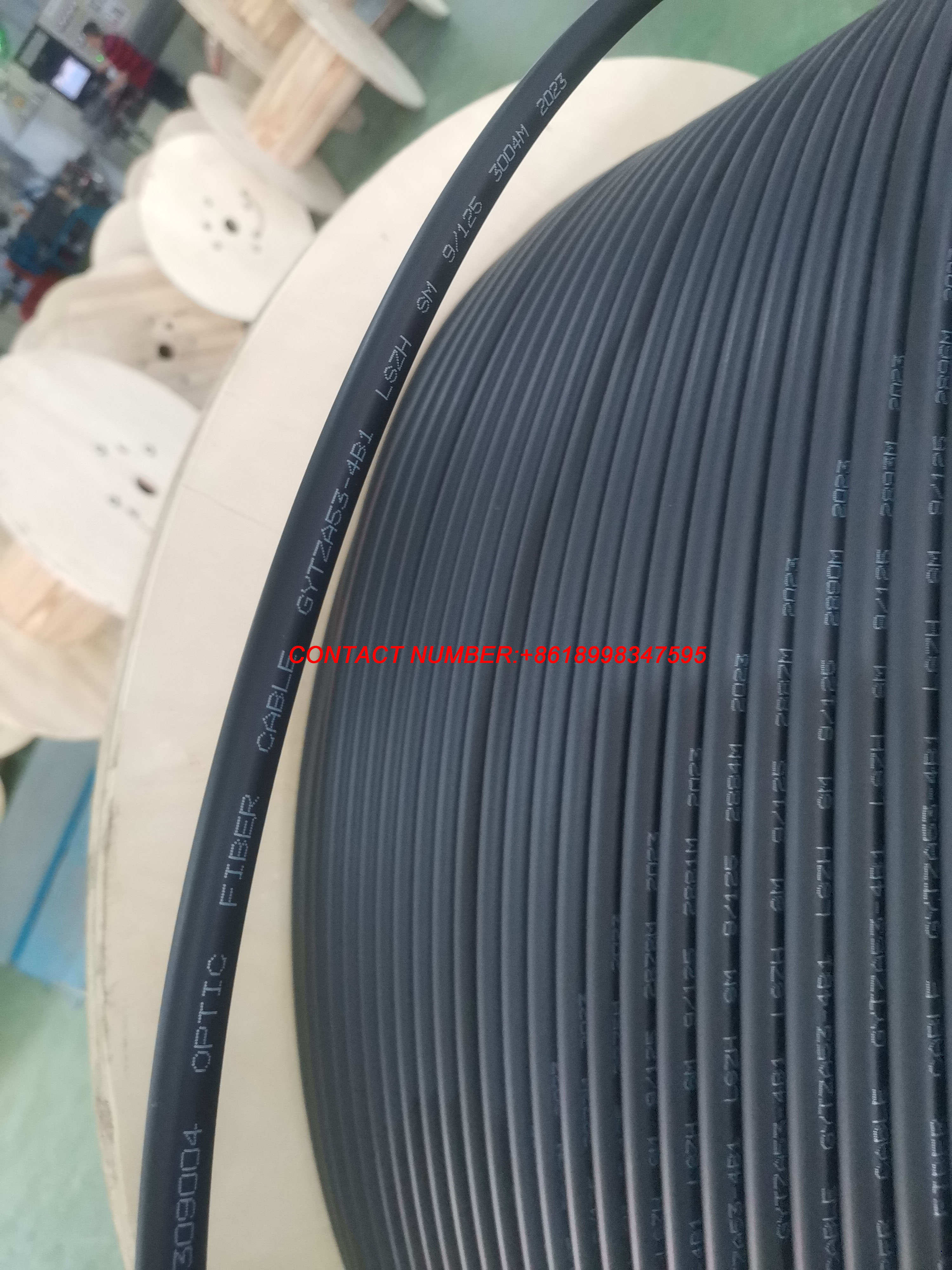

GYFTY53 Direct Buried Single Armor Double Jacket Fiber Optic Cable 12 48 96 Core

G652D Fiber Otic Parameter:

Item		Unit	Specification
Fiber Type			G.652D
Mode field diameter	1310nm	mm	9.2±0.4
	1550nm	mm	10.4±0.8
Cladding diameter		mm	125.0±1
Cladding non-circularity		%	£1.0
Core/cladding concentricity error		mm	£0.5
Coating diameter		mm	245±5
Coating non-Circularity		%	£6.0
Coating/cladding concentricity error		mm	£12.0
Cable cut-off wavelength		nm	£1260
Attenuation Coefficient	1310nm	dB/km	£0.36
	1550nm	dB/km	£0.22
Proof stress level		kpsi	≥100

Cable performance:

Item		Parameters
Fiber Count		48
Fibers / loose tube		12/tube
Colored coated fiber	Dimension	250µm±15µm
	Color	Blue,Orange,Green,Brown, Gray, Natural,Red,Black, Yellow,Purple, Pink,Aqua
Two layers Loose tube,one layer is 6 tubes	Dimension	2.1±0.1mm
	Material	PBT
	Color	Blue,Orange,Green,Brown
Central Strength Member	Dimension	1.5
	Material	FRP
Armoured	Material	Corrugated steel tape
Inner jacket	material	MDPE
	thickness	0.9MM
Outer jacket	Material	HDPE
	Color	Black
	thickness	1.8±0.2MM
Tension(Long Term/short Term)	1500N/3000N

Packing: Plywood drum,2/3/4/5km One Drum or as per your requirements

Shipping:By sea LCL/FCL

Company profile:

Guangzhou jiqian fiber optic cable co.,ltd is a high-tech company group engaged in researching, manufacturing, selling
communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable for 10 years, with ISO9001, FCC, ROHS and CE certificates. We OEM or design any structure of fiber optic cable for you. The main products of our company are: optical fiber cables/FTTH Drop Cable. All of the products are widely used in telecom, railway and other communication products related department, exported to many countries and districts such as North/South America, Europe, Mideast and Southeast Asia.Africa

Certification:

FAQ:

1.Are you the real manufacturer?
Yes. We are the real manufacturer with 13 years history.

2.What is your fiber brand ?
YOFC/Fiberhome



3.Do you provide samples?is it free or charged?Yes,samples are for free,just pay for freight

4.Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.

5.What is your warranty period?
25-30 years for outdoor fiber optic cable

6.Which kind of certification you have ?
ISO9001,FCC,ROHS,CE

7.What is your delivery time?
Usually 5-7 working days

8.What is your payment way?
T/T, L/C, Western Union

9.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.

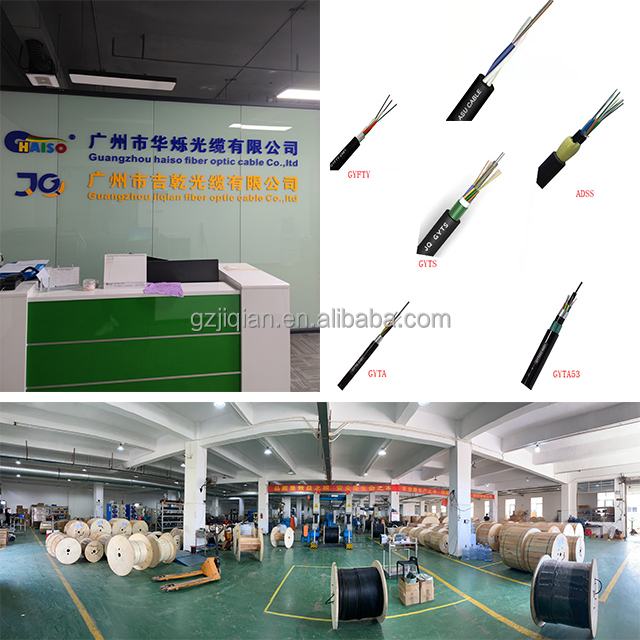

Welcome to visit our factory
