    FRP Strength Member LSZH Sheath Fiber Optic Cable GYFTZY stranded loose tube outdoor fiber optic cable

    Ask Lasest Price
    Brand Name : JQ/OEM
    Model Number : GYFTZY
    Certification : CE/ISO9001
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 8000 kilometers per month
    Delivery Time : 2-5days
    • Product Details
    • Company Profile

    FRP Strength Member LSZH Sheath Fiber Optic Cable GYFTZY stranded loose tube outdoor fiber optic cable

    Product Description

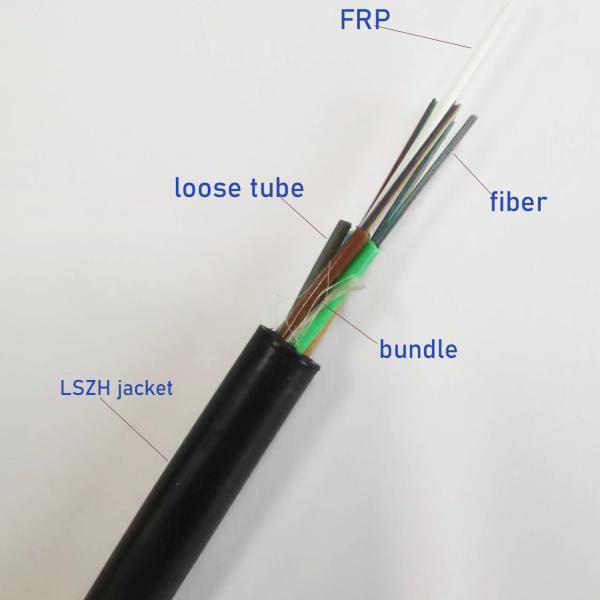

    The structure of GYFTY is to sheath 250μm fiber into a high modulus loose tube (PBT). The tubes are filled with a water resistance filling compound. A fiber reinforced polymer wire (FPR), sometimes sheathed with polyethylene (PE) for high fiber count cable, locates in the center of cable as a strength member. PBT tubes (and fillers) are stranded around the strength member into acompact and round shape. The gap between the tubes is filled with water blocking compounds. Then the cable is completed with a PE heath. The material of the jacket is LSZH.

    FRP Strength Member LSZH Sheath Fiber Optic Cable GYFTZY stranded loose tube outdoor fiber optic cable

    Characteristics:

    ■ Good mechanical properties and temperature characteristics.

    ■ The loose tube material itself has good hydrolysis resistance and high strength.

    ■ The tube is filled with special oil paste to protect the optical fiber.

    ■ Good compression resistance and flexibility.

    ■ Fire retardant,anti-strong electromagnetic interference,lightning protection.
    The following measures are used to ensure water resistance of GYFTY non-armoured cable:

    Single non-metal core reinforcement. The loose tube is filled with special waterproof compound. Complete cable core filling.

    Application:
    ■Adapted to Outdoor distribution.
    ■Long distance and local area net work communication.
    ■Suitable for aerial .pipeline laying method.
    ■Suitable for wiring in many minefields and places with serious electromagnetic interference.
    Specification:
    itemvalue
    Model NumberGYFTZY
    TypeOutdoor Fiber Optic Cable
    Place of OriginGuangdong,China
    Brand Namejiqian
    Cable StructureMulti-Loose Tube None Armor
    Number of Conductors≥ 10
    Fiber count2-288 Cores
    Fiber TypeG652D Single mode or as your request
    Central strength memberFRP
    Loose tubeJelly filled
    Jacket SheathLSZH
    ColorBlack or as your need
    PackagePlywood Reel/customized
    Installationaerial, in duct
    operating temperature-40 to +70
    CertificationCE/ROHS/ISO9001 /ANATEL

    Optical Characteristics:
    G.65550/125μm62.5/125μm
    G.652
    Attenuation'@850nm≤3.0 dB/km
    (+20℃)'@1300nm≤1.0 dB/km
    '@1310nm≤0.34 dB/km≤0.40 dB/km
    '@1550nm≤0.21 dB/km≤0.23 dB/km
    '@850nm≥500 MHz·km
    '@1300nm≥1000 MHz·km
    Numerical Aperture0.200±0.015NA
    Technical parameters:
    cable countrout sheath diameterWeightMinimum allowable Tensile strength(N)MinimumMin bending radius(MM)
    (MM)(KG)allowable Crush load(N/100mm)
    Short termLong termShort termlong Termshort termlong Term
    2-3612.8170300010003000100020D10D
    38-7214.2212300010003000100020D10D
    74-9615.7245300010003000100020D10D
    98-12017.3289300010003000100020D10D
    122-14418.8328300010003000100020D10D

    Company Profile:

    Guangzhou Jiqian Fiber Optic Cable Co.Ltd. is located in 2nd Floor,Building B3,Building 3 No.43 Lixin 9th Road,Xintang Town,Zengcheng District,Guangzhou city,Guangdong province,China.It is a large-scale high-tech specialized joint-stock enterprise that integrates scientific research, development,production, and sales. It specializes in producing various types and specifications of optical cables with 2-288 cores. The company adheres to the corporate spirit of "integrity, speed, flexibility, efficiency, and innovation", and strives for perfection, appreciation for customers, and paving the way for success, Adhere to the standard that "customer satisfaction is the most important measure of our performance". We promise to work together with you with high-quality products, discounted prices,and first-class services to create a brilliant career.
    We sincerely welcome customers all over the world to visit our factory and build long term relationship with each other.

    FRP Strength Member LSZH Sheath Fiber Optic Cable GYFTZY stranded loose tube outdoor fiber optic cableFRP Strength Member LSZH Sheath Fiber Optic Cable GYFTZY stranded loose tube outdoor fiber optic cable

    WHY CHOOSE US:

    FRP Strength Member LSZH Sheath Fiber Optic Cable GYFTZY stranded loose tube outdoor fiber optic cable

    Certification:

    FRP Strength Member LSZH Sheath Fiber Optic Cable GYFTZY stranded loose tube outdoor fiber optic cable

    FAQ:

    1. who are we?
    We are based in Guangdong, China, start from 2017,sell to Africa(33.00%),South America(17.00%),Western Europe(17.00%),Mid East(17.00%),Southeast Asia(9.00%),South Asia(7.00%). There are total about 11-50 people in our office.
    2. how can we guarantee quality?
    Always a pre-production sample before mass production;
    Always final Inspection before shipment;
    3.what can you buy from us?
    Fiber Optic Cable, FTTH Drop Cable, Communication Cables, Outdoor/Indoor Fiber Cable
    4. what services can we provide?
    Accepted Delivery Terms: FOB,EXW;
    Accepted Payment Currency:USD,CNY;
    Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
    Language Spoken:English,Chinese

    5.MOQ: what is your minimum quantity?
    -MOQ : 1KM
    6.Can I get a sample?
    -Yes, we provide FREE sample and you just need to pay for express freight.
    7.Accept OEM or ODM?
    -Yes,we're manufacturer. And we have our own Engineering Department. You just need to tell us your requirements.
    8.What is your delivery time?
    -The general delivery time is 3-7 days after order confirmed. It depends on the order quantity.
