    Outdoor Armored Fiber Optic Cable GYTZA Flame Resistance Jacket LSZH Outer Sheath Cable

    Ask Lasest Price
    Brand Name : JQ/OEM
    Model Number : GYTZA
    Certification : CE/ISO9001
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 8000 kilometers per month
    Delivery Time : 2-5days
    • Product Details
    • Company Profile

    Outdoor Armored Fiber Optic Cable GYTZA Flame Resistance Jacket LSZH Outer Sheath Cable

    Product Description

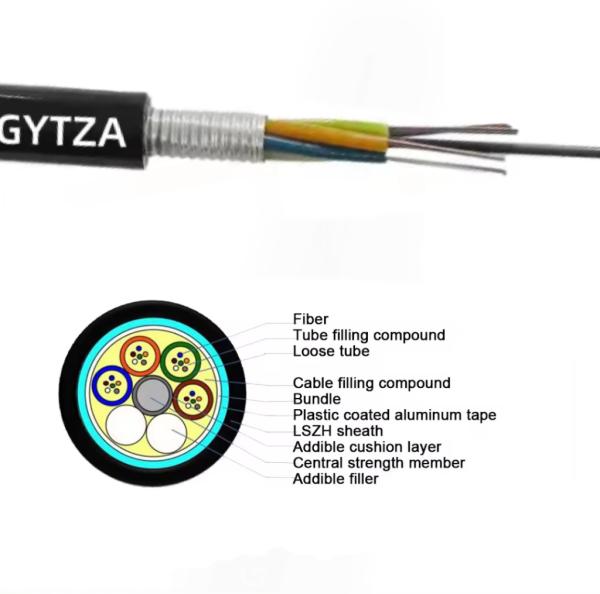

    GYTZA type cable loose jacket layer stranding, key protection cable, full cross section water resistance structure, double coated aluminum strip longitudinal wrap, to ensure the radial moisture resistance of the cable, improve the resistance to side pressure of the cable, the center steel wire reinforcement core, the cable core filled with special oil paste double coated aluminum strip bonded to PE inner sheath, rolled steel strip bonded to flame retardant outer sheath.

    Outdoor Armored Fiber Optic Cable GYTZA Flame Resistance Jacket LSZH Outer Sheath Cable

    Characteristics:

    • Good mechanical properties and temperature characteristics.

    • The loose tube material itself has good hydrolysis resistance and high strength.

    • The tube is filled with special oil paste, which provides critical protection for the optical fiber.

    • Specially designed tight cable structure, effectively prevent sleeve retraction.

    • Good compression resistance and flexibility.

    • Special sheath with excellent flame retardant performance.
    • Adopt the following measures to ensure the waterproof performance of the cable:

    - Single wire center reinforcement core.

    - Loose tube filled with special waterproof compound.

    - Complete cable core filling.

    - Plastic-Aluminum tape (APL) damp-proof course.

    Application:

    ■Adapted to Outdoor distribution.

    ■Long distance and local area network communication.

    ■Suitable for aerial pipeline layingmethod.

    ■Suitable for subway, tunnel, power and oil sectors.

    Specification:
    item value
    Model Number GYZTA
    Type Outdoor Fiber Optic Cable
    Place of Origin Guangdong,China
    Brand Name jiqian
    Number of Conductors ≥ 10
    Fiber count 2-288 Cores
    Fiber Type G652D Single mode or as your request
    Central strength member steel wire
    Armoured Al tape
    Outer Sheath LZSH
    Cable Structure Multi-Loose Tube Aluminum Tape armor
    Color Black or as your need
    Installation aerial, in duct
    Certification CE/ROHS/ISO9001 /ANATEL

    Optical Characteristics:
    Fiber Type G.652 G.655 50/125μm 62.5/125μm
    Attenuation @850nm ≤3.0dB/km ≤3.3dB/km
    (+20℃) @1300nm ≤1.0dB/km ≤1.0dB/km
    @1310nm ≤0.34dB/km ≤0.40dB/km
    @1550nm ≤0.21dB/km ≤0.23dB/km
    Bandwidth @850nm ≥500MHZ·km ≥200MHZ·km
    @1300nm ≥500MHZ·km ≥500MHZ·km
    Numerical Aperture 0.200±0.015NA 0.275±0.015NA
    Cable Cut-off ≤1260nm ≤1450nm
    Wavelength λcc
    Technical parameters:
    Fiber Nominal Nominal Max Fiber Max No. Allowable Tensile Allowable Crush
    Count Diameter Weight Per Tube of(Tubes+ Load(N) Resistance(N/100mm)
    (mm) (kg/km) fillers) Short Term Long Term Short Term Long Term
    2~36 10.3 109 6 6 1500 600 1000 300
    38~72 11.5 145 12 6 1500 600 1000 300
    74~96 13.5 175 12 8 1500 600 1000 300
    98~120 14.8 209 12 10 1700 600 1000 300
    122~144 16.6 249 12 12 2000 600 1000 300
    146~216 16.7 254 12 18(2 layers) 2000 600 1000 300
    218~288 19 325 12 24(2 layers) 2500 600 1000 300

    Company Profile:

    Guangzhou Jiqian Fiber Optic Cable Co.Ltd. is located in 2nd Floor,Building B3,Building 3 No.43 Lixin 9th Road,Xintang Town,Zengcheng District,Guangzhou city,Guangdong province,China.It is a large-scale high-tech specialized joint-stock enterprise that integrates scientific research, development,production, and sales. It specializes in producing various types and specifications of optical cables with 2-288 cores. The company adheres to the corporate spirit of "integrity, speed, flexibility, efficiency, and innovation", and strives for perfection, appreciation for customers, and paving the way for success, Adhere to the standard that "customer satisfaction is the most important measure of our performance". We promise to work together with you with high-quality products, discounted prices,and first-class services to create a brilliant career.
    We sincerely welcome customers all over the world to visit our factory and build long term relationship with each other.

    Outdoor Armored Fiber Optic Cable GYTZA Flame Resistance Jacket LSZH Outer Sheath CableOutdoor Armored Fiber Optic Cable GYTZA Flame Resistance Jacket LSZH Outer Sheath Cable

    WHY CHOOSE US:

    Outdoor Armored Fiber Optic Cable GYTZA Flame Resistance Jacket LSZH Outer Sheath Cable

    Certification:

    Outdoor Armored Fiber Optic Cable GYTZA Flame Resistance Jacket LSZH Outer Sheath Cable

    FAQ:

    1. who are we?
    We are based in Guangdong, China, start from 2017,sell to Africa(33.00%),South America(17.00%),Western Europe(17.00%),Mid East(17.00%),Southeast Asia(9.00%),South Asia(7.00%). There are total about 11-50 people in our office.
    2. how can we guarantee quality?
    Always a pre-production sample before mass production;
    Always final Inspection before shipment;
    3.what can you buy from us?
    Fiber Optic Cable, FTTH Drop Cable, Communication Cables, Outdoor/Indoor Fiber Cable
    4. what services can we provide?
    Accepted Delivery Terms: FOB,EXW;
    Accepted Payment Currency:USD,CNY;
    Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
    Language Spoken:English,Chinese

    5.MOQ: what is your minimum quantity?
    -MOQ : 1KM
    6.Can I get a sample?
    -Yes, we provide FREE sample and you just need to pay for express freight.
    7.Accept OEM or ODM?
    -Yes,we're manufacturer. And we have our own Engineering Department. You just need to tell us your requirements.
    8.What is your delivery time?
    -The general delivery time is 3-7 days after order confirmed. It depends on the order quantity.
    We Support OEM and Customize products.
