    Rat-proof Flame Retardant GYFTZY63 Directly Buried Fiber Optical Cable High Quality Glass Yarn with FRP

    Ask Lasest Price
    Brand Name : JQ/OEM
    Model Number : GYFTZY63
    Certification : CE/ISO9001
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 8000 kilometers per month
    Delivery Time : 2-5days
    • Product Details
    • Company Profile

    Rat-proof Flame Retardant GYFTZY63 Directly Buried Fiber Optical Cable High Quality Glass Yarn with FRP

    Product Description:

    GYFTZY63 (non-metallic strengthening member, loose tube stranded and filled, polyethylene sheathed outdoor optical fiber cable for communication)

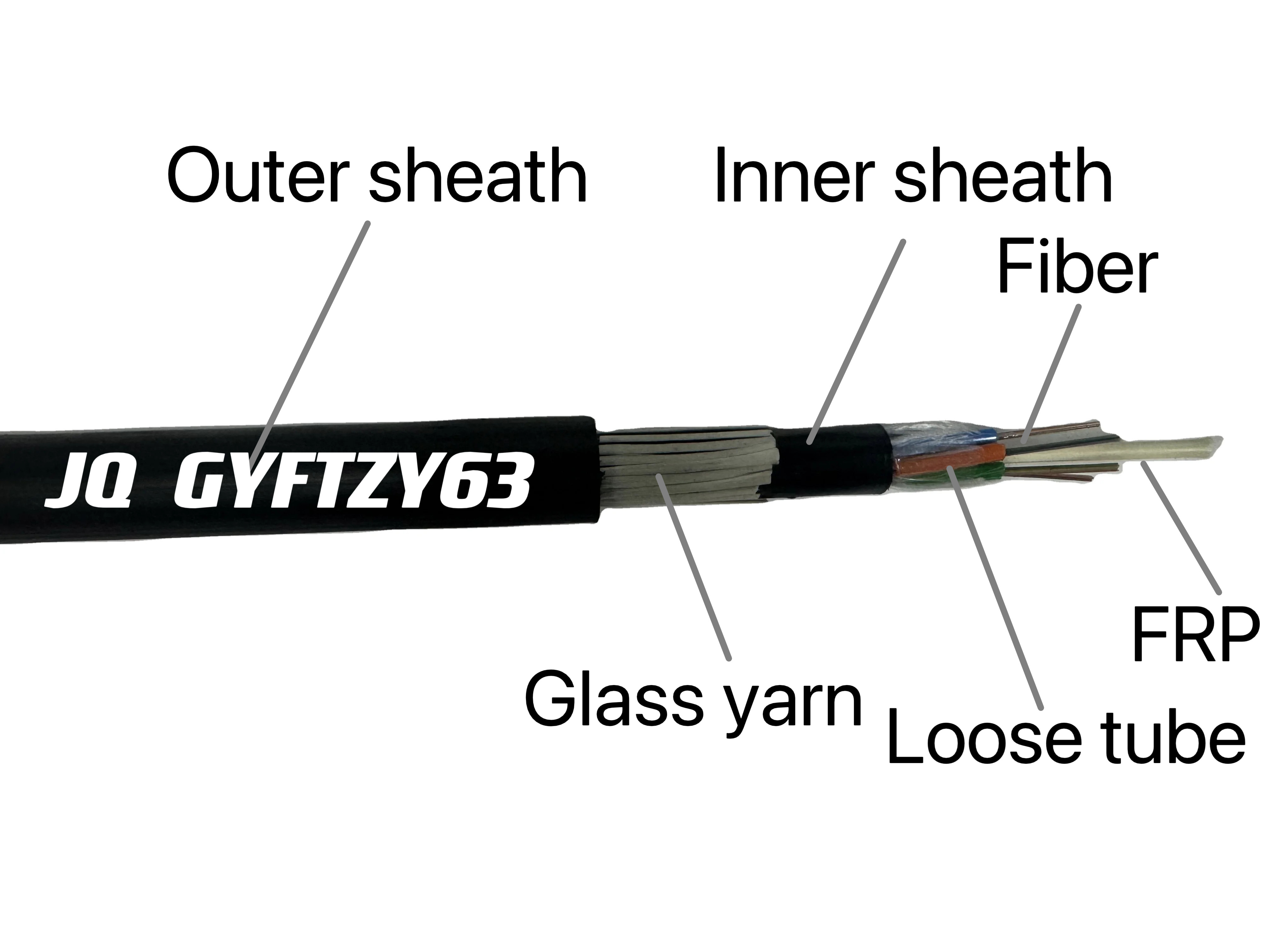

    The structure of the optical cable is to sheath a single-mode or multi-mode optical fiber into a high-modules plastic filled with waterproof compound loose In the casing. The center of the cable core is a non-metallic reinforced core (FRP). For certain fiber optic cables, a layer of polyethylene (PE) is extruded outside the non-metallic reinforced core or a non-metallic reinforced yarn is added to the cable core line. The loose tube (and filling rope) is twisted around the central reinforcing core to form a compact and circular cable core. The gaps in the cable core are filled with water blocking compoundsand polyethylene sheaths.

    Rat-proof Flame Retardant GYFTZY63 Directly Buried Fiber Optical Cable High Quality Glass Yarn with FRP

    Characteristics:

    1. Non-metal reinforcement and layer design ensure that the cable has good mechanical and temperature characteristics.

    2. The casing is filled with buffer grease to protect the optical fiber and waterproof.

    3. High-strength non-metallic reinforcement and glass yarn bear axial load.

    4. The cable core filled with water blocking ointment can effectively waterproof.

    5. It can effectively prevent rats from breaking the cable.

    Application:

    – Laying modes: Aerial & Duct

    – Electromagnetic interfering places

    – Outdoor distribution

    – Access network and local network

    Specification:
    item value
    Model Number GYFTZY63
    Type Outdoor Fiber Optic Cable
    Place of Origin Guangdong,China
    Brand Name jiqian
    Cable Structure Multi-Loose Tube None Armor
    Number of Conductors ≥ 10
    Fiber count 2-144 Cores
    Fiber Type G652D Single mode or as your request
    Central strength member FRP
    Loose tube Jelly filled
    Armored Non-armored
    Jacket Sheath LSZH
    Color Black or as your need
    Package Plywood Reel/customized
    Installation aerial, in duct
    operating temperature -40 to +70
    Certification CE/ROHS/ISO9001 /ANATEL

    Optical Characteristics:
    Fiber Type G.652 G.655 50/125μm 62.5/125μm
    Attenuation @850nm ≤3.0dB/km ≤3.3dB/km
    (+20℃) @1300nm ≤1.0dB/km ≤1.0dB/km
    @1310nm ≤0.34dB/km ≤0.40dB/km
    @1550nm ≤0.21dB/km ≤0.23dB/km
    Bandwidth @850nm ≥500MHZ·km ≥200MHZ·km
    @1300nm ≥500MHZ·km ≥500MHZ·km
    Numerical Aperture 0.200±0.015NA 0.275±0.015NA
    Cable Cut-off ≤1260nm ≤1450nm
    Wavelength λcc
    Technical parameters:
    cable countr out sheath diameter Weight Minimum allowable Tensile strength(N) Minimum Min bending radius(MM)
    (MM) (KG) allowable Crush load(N/100mm)
    Short term Long term Short term long Term short term long Term
    2-36 12.8 170 3000 1000 3000 1000 20D 10D
    38-72 14.2 212 3000 1000 3000 1000 20D 10D
    74-96 15.7 245 3000 1000 3000 1000 20D 10D
    98-120 17.3 289 3000 1000 3000 1000 20D 10D
    122-144 18.8 328 3000 1000 3000 1000 20D 10D

    Company Profile:

    Guangzhou Jiqian Fiber Optic Cable Co.Ltd. is located in 2nd Floor,Building B3,Building 3 No.43 Lixin 9th Road,Xintang Town,Zengcheng District,Guangzhou city,Guangdong province,China.It is a large-scale high-tech specialized joint-stock enterprise that integrates scientific research, development,production, and sales. It specializes in producing various types and specifications of optical cables with 2-288 cores. The company adheres to the corporate spirit of "integrity, speed, flexibility, efficiency, and innovation", and strives for perfection, appreciation for customers, and paving the way for success, Adhere to the standard that "customer satisfaction is the most important measure of our performance". We promise to work together with you with high-quality products, discounted prices,and first-class services to create a brilliant career.
    We sincerely welcome customers all over the world to visit our factory and build long term relationship with each other.

    Rat-proof Flame Retardant GYFTZY63 Directly Buried Fiber Optical Cable High Quality Glass Yarn with FRPRat-proof Flame Retardant GYFTZY63 Directly Buried Fiber Optical Cable High Quality Glass Yarn with FRP

    WHY CHOOSE US:

    Rat-proof Flame Retardant GYFTZY63 Directly Buried Fiber Optical Cable High Quality Glass Yarn with FRP

    Certification:

    Rat-proof Flame Retardant GYFTZY63 Directly Buried Fiber Optical Cable High Quality Glass Yarn with FRP

    FAQ:

    1. who are we?
    We are based in Guangdong, China, start from 2017,sell to Africa(33.00%),South America(17.00%),Western Europe(17.00%),Mid East(17.00%),Southeast Asia(9.00%),South Asia(7.00%). There are total about 11-50 people in our office.
    2. how can we guarantee quality?
    Always a pre-production sample before mass production;
    Always final Inspection before shipment;
    3.what can you buy from us?
    Fiber Optic Cable, FTTH Drop Cable, Communication Cables, Outdoor/Indoor Fiber Cable
    4. what services can we provide?
    Accepted Delivery Terms: FOB,EXW;
    Accepted Payment Currency:USD,CNY;
    Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
    Language Spoken:English,Chinese

    5.MOQ: what is your minimum quantity?
    -MOQ : 1KM
    6.Can I get a sample?
    -Yes, we provide FREE sample and you just need to pay for express freight.
    7.Accept OEM or ODM?
    -Yes,we're manufacturer. And we have our own Engineering Department. You just need to tell us your requirements.
    8.What is your delivery time?
    -The general delivery time is 3-7 days after order confirmed. It depends on the order quantity.
    We Support OEM and Customize products.
    Welcome to your inquiry! Welcome to visit our facotry!
    Contact me at WhatsAapp +86 19120308386 to get free sample.
