GYFTS outdoor stranded single mode FRP Strength Member Steel Tape Armored Fiber Optic Cable

Guangzhou Jiqian Fiber Optic Cable Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap GYFTS outdoor stranded single mode FRP Strength Member Steel Tape Armored Fiber Optic Cable from wholesalers

    Buy cheap GYFTS outdoor stranded single mode FRP Strength Member Steel Tape Armored Fiber Optic Cable from wholesalers
    • Buy cheap GYFTS outdoor stranded single mode FRP Strength Member Steel Tape Armored Fiber Optic Cable from wholesalers
    • Buy cheap GYFTS outdoor stranded single mode FRP Strength Member Steel Tape Armored Fiber Optic Cable from wholesalers
    • Buy cheap GYFTS outdoor stranded single mode FRP Strength Member Steel Tape Armored Fiber Optic Cable from wholesalers
    • Buy cheap GYFTS outdoor stranded single mode FRP Strength Member Steel Tape Armored Fiber Optic Cable from wholesalers
    • Buy cheap GYFTS outdoor stranded single mode FRP Strength Member Steel Tape Armored Fiber Optic Cable from wholesalers

    GYFTS outdoor stranded single mode FRP Strength Member Steel Tape Armored Fiber Optic Cable

    Ask Lasest Price
    Brand Name : JQ/OEM
    Model Number : GYFTS
    Certification : CE/ISO9001
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 8000 kilometers per month
    Delivery Time : 2-5days
    • Product Details
    • Company Profile

    GYFTS outdoor stranded single mode FRP Strength Member Steel Tape Armored Fiber Optic Cable

    Product Description:

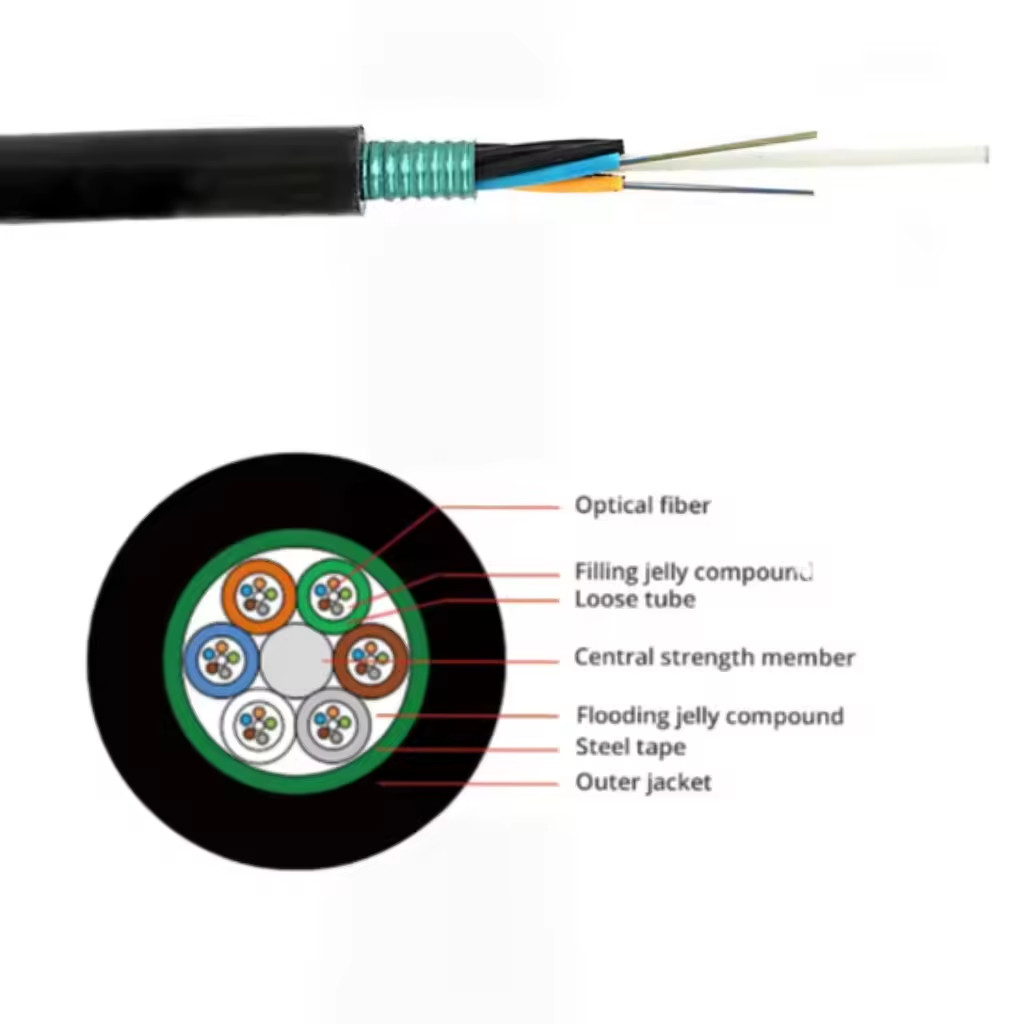

    GYFTS is an outdoor communication optical cable of metallic strength member of the loose tube jelly-filled structure. The loose tubes are made of high modulus plastics (PBT) and filled withwater resistant filling gel. Loose tubes are stranded around the metallic central strength member, cable core is filled with cable filling compound. The corrugated steel tape is longitudinally applied over the cable core, and combined with polyethylene (PE) inner sheath. Galvanized steel wires are stranded around inner sheath, and then extruded with PE outer sheath.

    GYFTS outdoor stranded single mode FRP Strength Member Steel Tape Armored Fiber Optic Cable

    Characteristics:
    ■ Precise fiber residual length control ensures excellent tensile and temperature performance.

    ■ The loose tube material has good hydrolysis resistance, and the tube is filled with oil paste to protect the optical fiber.

    ■ Sheath material has good anti-solar radiation performance.

    Application:

    ■ Adapted to Outdoor distribution.
    ■ Long distance and local area network communication.

    ■ Suitable for aerial pipeline laying method.

    Specification:
    item value
    Model Number GYFTS
    Type Outdoor Fiber Optic Cable
    Place of Origin Guangdong,China
    Brand Name jiqian
    Structure stranded loose tube
    Number of Conductors ≥ 10
    Fiber count 2-288 Cores
    Fiber Type G652D Single mode or as your request
    Loose tube PBT
    Central strength member FRP
    Armoured Steel tape
    Outer Sheath PE
    Cable Structure Multi-Loose Tube Steel Tape armor
    Color Black or as your need
    Length 1km 2km 3km 4km
    Installation aerial, in duct
    Certification CE/ROHS/ISO9001 /ANATEL
    Optical Characteristics:
    Fiber Type G.652 G.655 50/125^m 62.5/125^m
    Attenuation 850 nm <3.0 dB/km <3.3 dB/km
    (+20X) 1300 nm <1.0 dB/km <1.0 dB/km
    1310 nm <0.34 dB/km <0.40 dB/km
    1550 nm <0.21 dB/km <0.23 dB/km
    Bandwidth 850 nm >500 MHz-km >200 Mhz-km
    1300 nm >500 MHz-km >500 Mhz-km
    Numerical Aperture 0.200±0.015 NA 0.275±0.015 NA
    Cable Cut-off Wavelength cc <1260 nm <1450 nm
    Technical parameters:
    cable countr out sheath diameter Weight Minimum allowable Tensile strength(N) Minimum Min bending radius(MM)
    (MM) (KG) allowable Crush load(N/100mm)
    Short term Long term Short term long Term short term long Term
    2-36 12.8 170 3000 1000 3000 1000 20D 10D
    38-72 14.2 212 3000 1000 3000 1000 20D 10D
    74-96 15.7 245 3000 1000 3000 1000 20D 10D
    98-120 17.3 289 3000 1000 3000 1000 20D 10D
    122-144 18.8 328 3000 1000 3000 1000 20D 10D

    Company Profile:

    Guangzhou Jiqian Fiber Optic Cable Co.Ltd. is located in 2nd Floor,Building B3,Building 3 No.43 Lixin 9th Road,Xintang Town,Zengcheng District,Guangzhou city,Guangdong province,China.It is a large-scale high-tech specialized joint-stock enterprise that integrates scientific research, development,production, and sales. It specializes in producing various types and specifications of optical cables with 2-288 cores. The company adheres to the corporate spirit of "integrity, speed, flexibility, efficiency, and innovation", and strives for perfection, appreciation for customers, and paving the way for success, Adhere to the standard that "customer satisfaction is the most important measure of our performance". We promise to work together with you with high-quality products, discounted prices,and first-class services to create a brilliant career.
    We sincerely welcome customers all over the world to visit our factory and build long term relationship with each other.

    GYFTS outdoor stranded single mode FRP Strength Member Steel Tape Armored Fiber Optic CableGYFTS outdoor stranded single mode FRP Strength Member Steel Tape Armored Fiber Optic Cable

    WHY CHOOSE US:

    GYFTS outdoor stranded single mode FRP Strength Member Steel Tape Armored Fiber Optic Cable

    Certification:

    GYFTS outdoor stranded single mode FRP Strength Member Steel Tape Armored Fiber Optic Cable

    FAQ:

    1. who are we?
    We are based in Guangdong, China, start from 2017,sell to Africa(33.00%),South America(17.00%),Western Europe(17.00%),Mid East(17.00%),Southeast Asia(9.00%),South Asia(7.00%). There are total about 11-50 people in our office.
    2. how can we guarantee quality?
    Always a pre-production sample before mass production;
    Always final Inspection before shipment;
    3.what can you buy from us?
    Fiber Optic Cable, FTTH Drop Cable, Communication Cables, Outdoor/Indoor Fiber Cable
    4. what services can we provide?
    Accepted Delivery Terms: FOB,EXW;
    Accepted Payment Currency:USD,CNY;
    Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
    Language Spoken:English,Chinese

    5.MOQ: what is your minimum quantity?
    -MOQ : 1KM
    6.Can I get a sample?
    -Yes, we provide FREE sample and you just need to pay for express freight.
    7.Accept OEM or ODM?
    -Yes,we're manufacturer. And we have our own Engineering Department. You just need to tell us your requirements.
    8.What is your delivery time?
    -The general delivery time is 3-7 days after order confirmed. It depends on the order quantity.
    We Support OEM and Customize products.
    Welcome to your inquiry! Welcome to visit our facotry!
    Contact me at WhatsAapp +86 19120308386 to get free sample.
