Characteristic:
1. Small cable diameter (suitable for harsh weather), light weight, small additional load on the tower.
2. Non-metal structure, good insulation, lightning protection.
3. Fine production process, so that the aramid yarn force uniform, with excellent stress flexibility.
4. High tensile strength, can achieve large span laying.
Specification:
| item | value |
| Model Number | ADSS |
| Type | Outdoor Fiber Optic Cable |
| Place of Origin | Guangdong,China |
| Brand Name | jiqian |
| Cable type | Outdoor All dielectric self-supporting aerial cable ADSS |

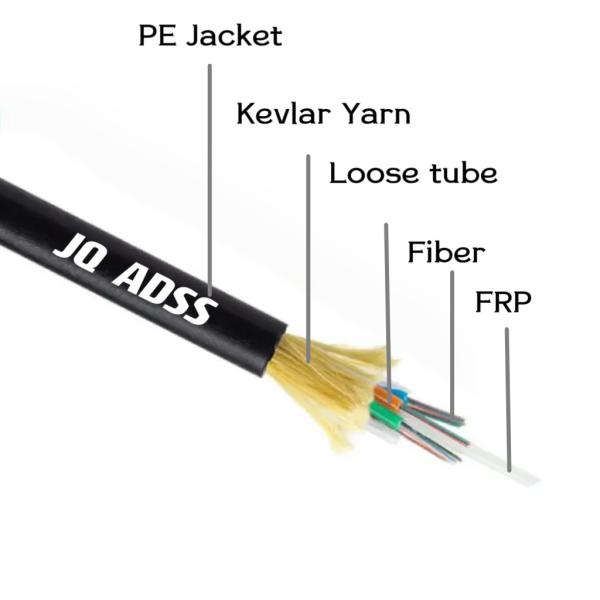

| Cable Structure | FRP+aramid yarn+outher sheath |
| Number of Conductors | ≥ 10 |
| Fiber count | 2-144 Cores |
| Fiber material | silicon dioxide |
| Fiber Type | G652D Single mode or as your request |
| Fiber color | Blue, Orange, Green, Brown,etc |
| Central strength member | FRP |
| Loose tube | Jelly filled |
| Loose Tube | Stranded Loose Tube |
| Loose tube Material | PBT |
| Water Blocking | Water Swell able Material |
| Jacket Sheath | PE |
| Color | Black or as your need |
| Package | Plywood Reel/customized |
| Installation | Self-supporting aerial |
| Span | 150 meters |
| operating temperature | -40 to +70 |
| Certification | CE/ROHS/ISO9001 /ANATEL |
Optical Characteristics:
| | G.655 | 50/125μm | 62.5/125μm | |
| G.652 | |
| Attenuation | '@850nm | | | ≤3.0 dB/km |
| (+20℃) | '@1300nm | | | ≤1.0 dB/km |
| | '@1310nm | ≤0.34 dB/km | ≤0.40 dB/km | |
| | '@1550nm | ≤0.21 dB/km | ≤0.23 dB/km | |
| | '@850nm | | | ≥500 MHz·km |
| | '@1300nm | | | ≥1000 MHz·km |
| Numerical Aperture | | | 0.200±0.015NA |
