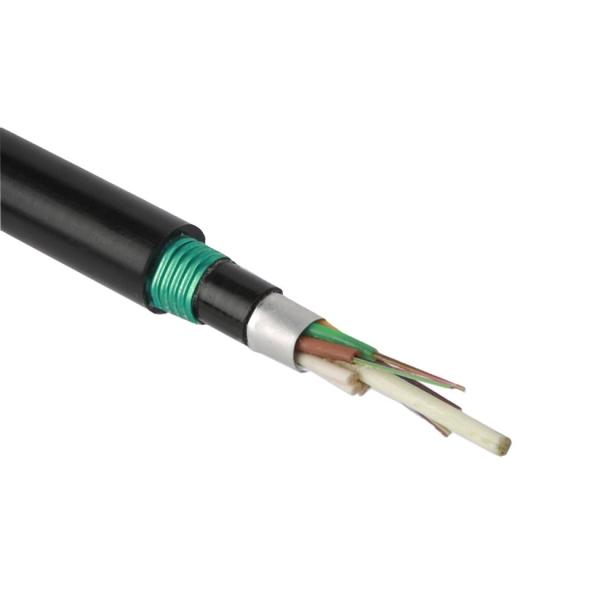

GYTA53 Armor Double sheaths Double steel tapes 2-288 Cores For Directly Buried

Fiber count	Structure	Fibers per tube	Loose tube diameter (mm)	CSM diameter/pad diameter (mm)	Nominal Thickness of outer jacket (mm)	Cable diameter/ Height (mm)	Cable net weight (kg/km)
12	1+5	6	2.0	1.4	1.8±0.2	11.5±0.2	140
24	1+5	6	2.0	1.4	1.8±0.2	11.5±0.2	140
48	1+5	12	2.0	1.6	1.8±0.2	12.2±0.2	145
96	1+8	12	2.0	1.4/3.2	1.8±0.2	13.8±0.2	180

GYTA Armored Single Steel Tape Fiber Optic Cable 2-288 Cores For Duct

Fiber count	Structure	Fibers per tube	Loose tube diameter (mm)	CSM diameter/pad diameter (mm)	Nominal Thickness of outer jacket (mm)	Cable diameter/ Height (mm)	Cableweight (kg/km)
12	1+5	6	2.0	1.4	1.8±0.2	8.5±0.3	75
24	1+5	6	2.0	1.4	1.8±0.2	8.5±0.3	75
48	1+5	12	2.0	1.5	1.8±0.2	9.3±0.3	90
96	1+8	12	2.0	1.4/3.2	1.8±0.2	11.5±0.3	120

Fiber parameter G652D

Item		Unit	Specification
Fiber Type			G.652D
Mode field diameter	1310nm	μm	9.2±0.4
	1550nm	μm	10.4±0.8
Cladding diameter		μm	125.0±1
Cladding non-circularity		%	≤1.0
Core/cladding concentricity error		μm	≤0.5
Coating diameter		μm	245±5
Coating non-Circularity		%	≤6.0
Coating/cladding concentricity error		μm	≤12.0
Cable cut-off wavelength		nm	≤1260
Attenuation Coefficient	1310nm	dB/km	≤0.36
	1550nm	dB/km	≤0.22
Proof stress level		kpsi	≥100

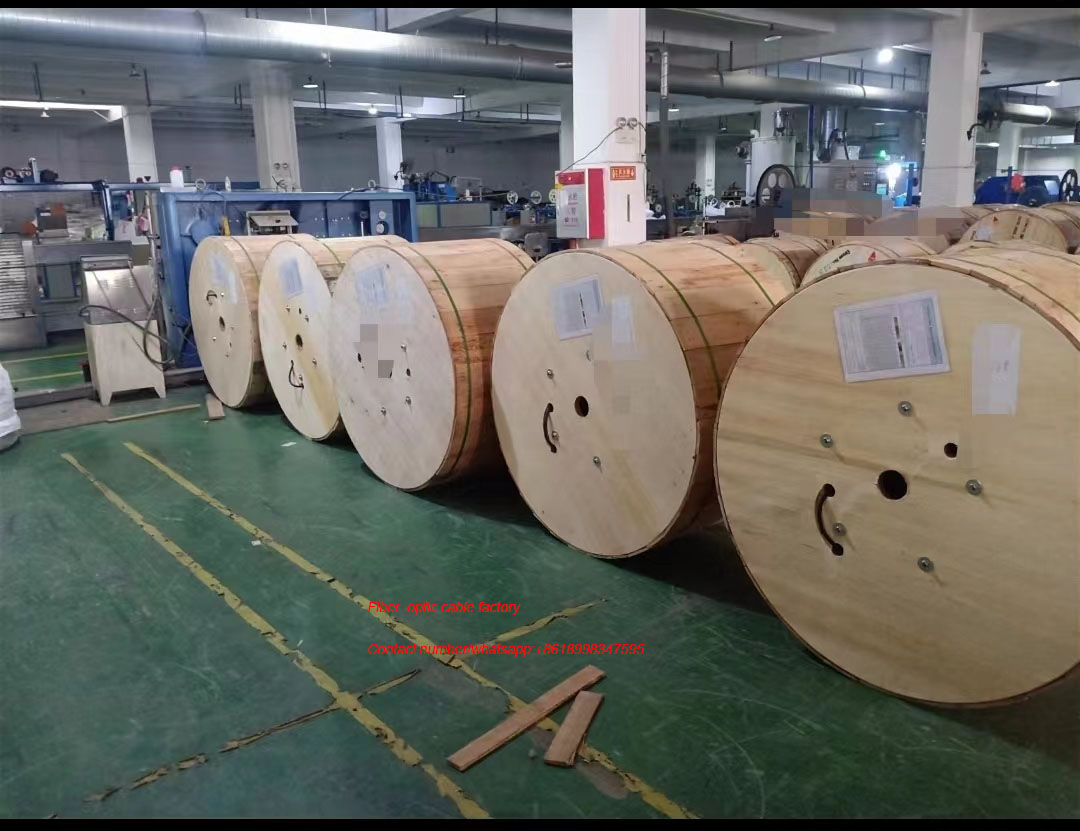

Packing: Plywood drum,2/3/4/5km One Drum or as per your requirements

Shipping:By sea LCL/FCL

Company profile:

1.Located in Guangzhou China


2.12 years experiance of producing fiber optic cable
3.CE/ROSH/FCC/ISO9001 Certifications
4.Exporting fiber optic cable to all over the world

Exhibition

Certification:

FAQ:

Q1.What is your terms of packing?
A: Generally, we pack our goods in drum with pallet for export.2KM/3KM/4KM/5KM of one drum or as per your requirements

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of Trade?
A: EXW, FOB, CFR, CIF

Q4. How about your delivery time?
A: Generally, it will take 5 to 7days after receiving your initial. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you provide OEM or ODM
A: Yes



Q6. What is your sample policy?
A: We provide FREE sample if we have them in stock

Q7. Do you test all your goods before delivery?
A: Yes, all of cables have to be tested before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.



Welcome to visit our factory



Contact me at +8618998347595 to get free sample

 Guangzhou jiqian fiber optic cable Co., Ltd (Guangzhou haiso fiber optic cable co.,ltd) is a fiber optic communication Manufacturer that started in 2011 is located at Guangzhou city ,and provides a professional fiber optic cable design and after-sales service for all over the world.

Our team full of spirituality and vitality, bloody and soulful!! For the cutsomer to the colleague must be the customer's service!!

All of our encounters are sincere links heart to heart!

Our advantage, with a history of over 10years, 5years export experience, ship to more than 30countries, more than 40 employees.

Choosing JQ is not only our success,but also yours!!!
