    Strong Tensile Outdoor Overhead Aerial 4 12 18 24 36 48 60 72 96 144 Core Network Adss Fiber Optic Cable

    Ask Lasest Price
    Brand Name : Jiqian
    Model Number : any style for choice,also customize
    Price : 100-500usd/km
    • Product Details
    • Company Profile

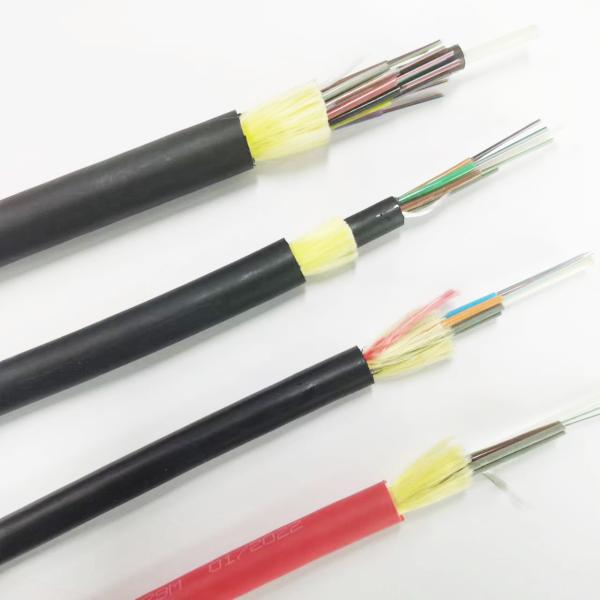

    Strong Tensile Outdoor Overhead Aerial 4 12 18 24 36 48 60 72 96 144 Core Network Adss Fiber Optic Cable

    Product Description

    Strong tensile outdoor overhead aerial 4 12 18 24 36 48 60 72 96 144 core network adss fiber optic cable prices per meter

    Application

    1. overhead
    2. aerial
    3. duct
    Strong Tensile Outdoor Overhead Aerial 4 12 18 24 36 48 60 72 96 144 Core Network Adss Fiber Optic Cable
    Strong Tensile Outdoor Overhead Aerial 4 12 18 24 36 48 60 72 96 144 Core Network Adss Fiber Optic Cable
    Strong tensile outdoor overhead aerial 4 12 18 24 36 48 60 72 96 144 core network adss fiber optic cable prices per meter
    1. All Dielectric Self Supporting Non-metallic Optical Fiber Cable.
    2. It can be directly suspended on the power tower.
    3. Mainly use for overhead high-voltage transmission system.
    Feature
    • big quantity for fibers,can be from 2-288,can be set up together with power tower.

    • All-dielectric design, applicable to lightning-prone areas

    • Aramid yarns are used as load-bearing components,high tensile strength

    • Metal free,anti-electromagnetic interference,lightning protection,strong electromagnetic field. can be used in many thunderstorm areas.
    Specification
    Product Name
    Strong tensile outdoor overhead aerial 4 12 18 24 36 48 60 72 96 144 core network adss fiber optic cable prices per meter
    Fiber Count
    2-244 Fibers,can be customized according to customers' requirement
    Construction
    PE sheath + aramid yarn,FRP strengthen
    Fiber Type
    Singlemode G.652D / G.657A1
    Outer Jacket Material
    usually PE,plastic,LSZH,can be customized
    Application
    overhead,aerial
    Diameter
    depends on quantity of fiber and structure
    Cable Length
    1km,2km,3km,5km per drum,can be customized
    Test Wavelength
    1310/1550nm
    Operation Temperature
    -40℃ to +70℃
    Strengthen
    FRP in the centre of the fiber optic cable
    Color
    usually black,can be customized
    Strong Tensile Outdoor Overhead Aerial 4 12 18 24 36 48 60 72 96 144 Core Network Adss Fiber Optic Cable
    Fiber Parameter
    Item
    Unit
    Specification
    Fiber Type
    G. 652
    Mode field diameter
    1310nm
    μm
    9.2 ± 0.4
    1550nm
    μm
    10.4 ± 0.8
    Cladding diameter
    μm
    125.0 ± 1
    Cladding non-circularity
    %
    ≤1.0
    Core/cladding concentricity error
    μm
    ≤0.5
    Coating diameter
    μm
    242 ± 7
    Coating/cladding concentricity error
    μm
    ≤12
    Cable cut-off wavelength
    nm
    ≤12
    Attenuation Coefficient
    1310nm
    dB/km
    ≤0.36
    1550nm
    dB/km
    ≤0.22
    Proof stress level
    kpsi
    ≥100
    Related Products
    Strong Tensile Outdoor Overhead Aerial 4 12 18 24 36 48 60 72 96 144 Core Network Adss Fiber Optic Cable
    Strong Tensile Outdoor Overhead Aerial 4 12 18 24 36 48 60 72 96 144 Core Network Adss Fiber Optic Cable
    Above are some other styles for reference,we can also customize according to customers' requirements like quantity of fibers,structure,diameter,weight,color of the cables.
    Packing & Delivery
    Strong Tensile Outdoor Overhead Aerial 4 12 18 24 36 48 60 72 96 144 Core Network Adss Fiber Optic Cable
    Strong Tensile Outdoor Overhead Aerial 4 12 18 24 36 48 60 72 96 144 Core Network Adss Fiber Optic Cable
    Strong Tensile Outdoor Overhead Aerial 4 12 18 24 36 48 60 72 96 144 Core Network Adss Fiber Optic Cable
    Strong Tensile Outdoor Overhead Aerial 4 12 18 24 36 48 60 72 96 144 Core Network Adss Fiber Optic Cable
    Packaing detail:
    1km/ 2km/3km/4km 5km per plywooden drum

    Shipping:
    By sea/by air or express delivery,it depends on the order quantity
    Company Profile
    Guangzhou Jiqian fiber optic cable co.,ltd is a high-tech company engaged in researching, manufacturing, selling communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable and patch cord over 8 years, with ISO 9001:2015 certificate. OEM is available and we can design any kind of fiber optic cables for you.The main products of our company are optical fiber cables and related optical fiber components. All of the products are widely used in telecom, and exported to many countries,for example Egypt, Pakistan, Maldives India,Brazil and Chile etc.
