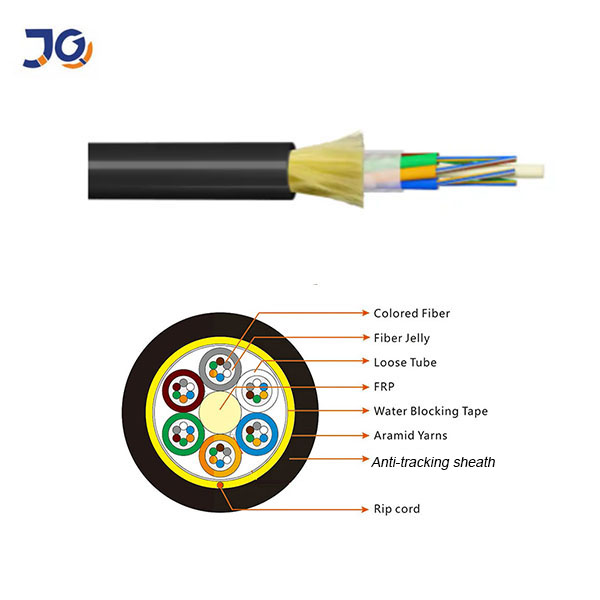

1. Central Strength Member (CSM): glass fiber reinforced
plastic rod (FRP), with PE sheath covering when needed.
2. Buffer Tube: PBT plastic material, containing 6 fibers and
filled with a suitable water tightness compound.
3. Filler Elements: nature PP plastic rods, when needed.
4. Stranding: loose tubes (and fillers), SZ stranded around the
CSM.
5. Longitudinal Water Tightness: dry core with water
swellable elements.
6. Aramid yarns: additional strength member.
7. Ripcord(s): 1 polyester ripcord under sheath.
8. Outer Sheath: Black ANTI-TRACK HDPE.
Fiber optic G652D
| Item | Unit | Specification |
| Fiber Type | G.652D |
| Mode field diameter | 1310nm | mm | 9.2±0.4 |
| 1550nm | mm | 10.4±0.8 |
| Cladding diameter | mm | 125.0±1 |
| Cladding non-circularity | % | £1.0 |
| Core/cladding concentricity error | mm | £0.5 |
| Coating diameter | mm | 245±5 |
| Coating non-Circularity | % | £6.0 |
| Coating/cladding concentricity error | mm | £12.0 |
| Cable cut-off wavelength | nm | £1260 |
| Attenuation Coefficient | 1310nm | dB/km | £0.36 |
| 1550nm | dB/km | £0.22 |
| Proof stress level | kpsi | ≥100 |
Mechanical and Environmental Characteristics
| Performance parameters |
Rated tensile strength (RTS) | KN | 7.1 |
Allows the use of tension (MAT) | KN | 2.8 |
The average annual running tension (EDS) | KN | 1.78 |
Limit running tension (UES) | KN | 4.26 |
Thermal expansion coefficient | 10-6/℃ | 1/℃ |
Young's modulus | kN/mm2 | 6.8 |
The compressive strength | For a long time | 1100N/100mm |
| For a short term | 2200N/100mm |
Static bending radius The minimum bending radius | 10 times the cable diameter |
| Dynamic bending radius | 20 times the cable diameter |
Suitable temperature range | laying | -30~+70°C |
Transportation and operation
| -40~+70°C |
Extra Length of fiber optic cable | 0.4-0.6% |
| Life expectancy | 25-30 years |
Packing: plywood drum 2/3/4/5 one drum or as your requirement
Delivery:By sea/road/train
