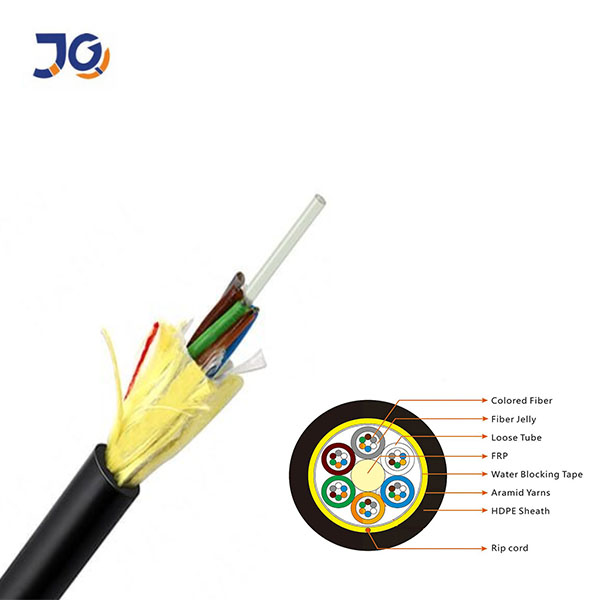

All Dielectric Self-Supporting (ADSS) cables are designed for
overhead self-supporting applications
We provide short, medium and long span distances.
FEATURES:1.Dielectric unique design for use for installation with power
distribution or near power lines
2.Very high tensile strength ideal for outdoor aerial applications
3.12-288 Cores 4.Compact 250um loose tube 5.High crush resistance
6.Self-supporting design 7.Choice of sheath thicknesses for different span lengths8.PE and flame-retardant LSZH sheath options
Application:Overhead
Fiber optic G652D
| Item | Unit | Specification |
| Fiber Type | G.652D |
| Mode field diameter | 1310nm | mm | 9.2±0.4 |
| 1550nm | mm | 10.4±0.8 |
| Cladding diameter | mm | 125.0±1 |
| Cladding non-circularity | % | £1.0 |
| Core/cladding concentricity error | mm | £0.5 |
| Coating diameter | mm | 245±5 |
| Coating non-Circularity | % | £6.0 |
| Coating/cladding concentricity error | mm | £12.0 |
| Cable cut-off wavelength | nm | £1260 |
| Attenuation Coefficient | 1310nm | dB/km | £0.36 |
| 1550nm | dB/km | £0.22 |
| Proof stress level | kpsi | ≥100 |
Packing: plywood drum 2/3/4km one drum or as your requirement
Delivery:By sea/road/train

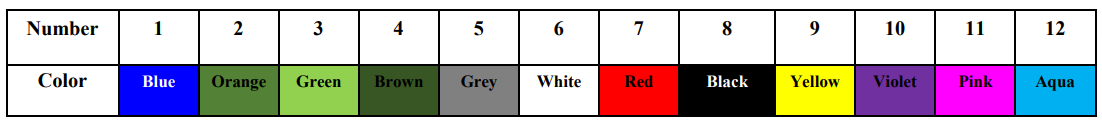

Fiber optic Color Order:
Company profile:
Guangzhou jiqian fiber optic cable co.,ltd is a high-tech company
group engaged in researching, manufacturing, selling
communication products with our import and export rights. Our
corporation is a professional manufacturer of fiber optic cable for
more than10 years, with ISO9001, FCC, ROHS and CE certificates. We
OEM or design any structure of fiber optic cable for you. The main
products of our company are: optical fiber cables/FTTH Drop Cable.
All of the products are widely used in telecom, railway and other
communication products related department, exported to many
countries and districts such as North/South America, Europe,
Mideast and Southeast Asia.Africa
Certification:
Exhibition:
FAQ:
1.Are you a manufacturer or trade company?
Yes. We are a factory in Guangzhou,China
2.Do you provide samples? is it free or charched?
Yes, sample is available, It's free of charge
3.Do you accept small order?
Yes, small order is available
4.What is your cable life expectancy?
25 years for outdoor fiber optic cable
5.Which kind of certification you have ?
ISO9001/CE/ROHS/FCC
6.What is your delivery time?
Usually 5-7 working days,It depends on order quantity
7.What is your fiber brand?
Corning,YOFC ,Fiberhome
8.What is your payment method?
T/T, L/C, Western Union and Paypal.
9.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your
requirements
Welcome to visit our factory
Contact me at +8618998347595 to get free sample
