    100M 120M 150M Span Self support Fiber Optic Cable ADSS Cable For Aerial

    100M 120M 150M Span Self support Fiber Optic Cable ADSS Cable For Aerial

    Product Description:

    ADSS (All-Dielectric Self-Supporting) cable is ideal forinstallation in distribution as well as transmission environments, even when live-line installations are required. All Dielectric Self-supporting ADSS Cable


    Features:

    Can be installed without shutting offthe power.
    ExcellentAT performance. The maximum inductive at the operating point ofAT jacket can reach 25kV.
    Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops.
    Large span lengths and the largest span is over 200m.
    Good performance oftensile strength and temperature.
    The design life span is over 30 years.

    Applications:

    Aerial

    It is designed to withstand temperatures from -40℃ to +85℃,

    Technical Parameters:

    NameADSS Fiber Optic Cable
    Fiber Count2-144
    Cable Span100M/200M/300M/400M
    Fiber TypeSingle-mode
    Cable Length1km/2km/3km/4km/5km
    Operating Temperature-40℃~+70℃
    ApplicationOverhead
    Fiber GradeG.652D
    Bending RadiusStatic: 10D/Dynamic: 20D
    Jacket ColorBlack

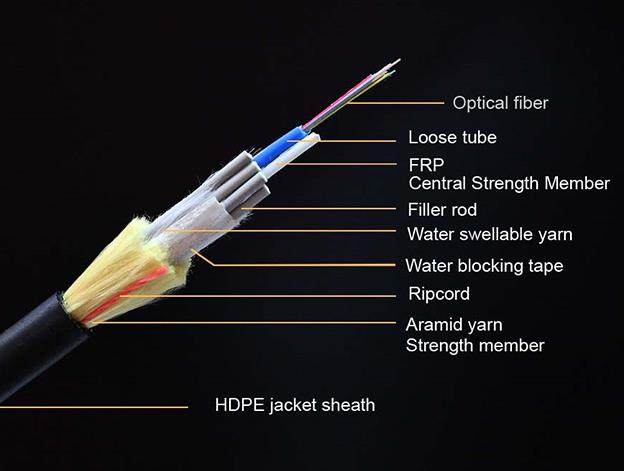

    ADSS cable is a type of fiber optic cable that is strong enough to support itself between structures without containing conductive metal elements. Both single mode and multimode fibers can be arranged in ADSS cables with a maximum of 288 fibers. ADSS fiber optic cable is designed for outside plant aerial and duct applications in local and campus network loop architectures from pole-to-building to town-to-town installations. The cabling system that includes cables, suspension, dead-end, and termination enclosures offers a comprehensive transmission circuit infrastructure with high-reliability performance. ADSS fiber cable has the characteristics of full dielectric, no metal, non-conductivity, small cable diameter, high tensile force, low linear expansion coefficient, and wide temperature adaptation.

    100M 120M 150M Span Self support Fiber Optic Cable ADSS Cable For Aerial

    100M 120M 150M Span Self support Fiber Optic Cable ADSS Cable For Aerial

    100M 120M 150M Span Self support Fiber Optic Cable ADSS Cable For Aerial

    Packing and Shipping:

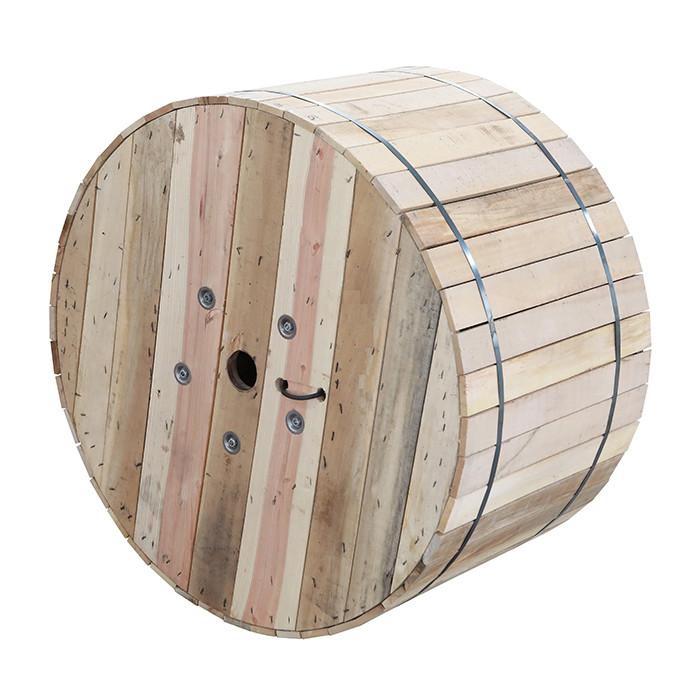

    Packaging and Shipping ADSS Fiber Optic Cable
    100M 120M 150M Span Self support Fiber Optic Cable ADSS Cable For Aerial
