Product Description

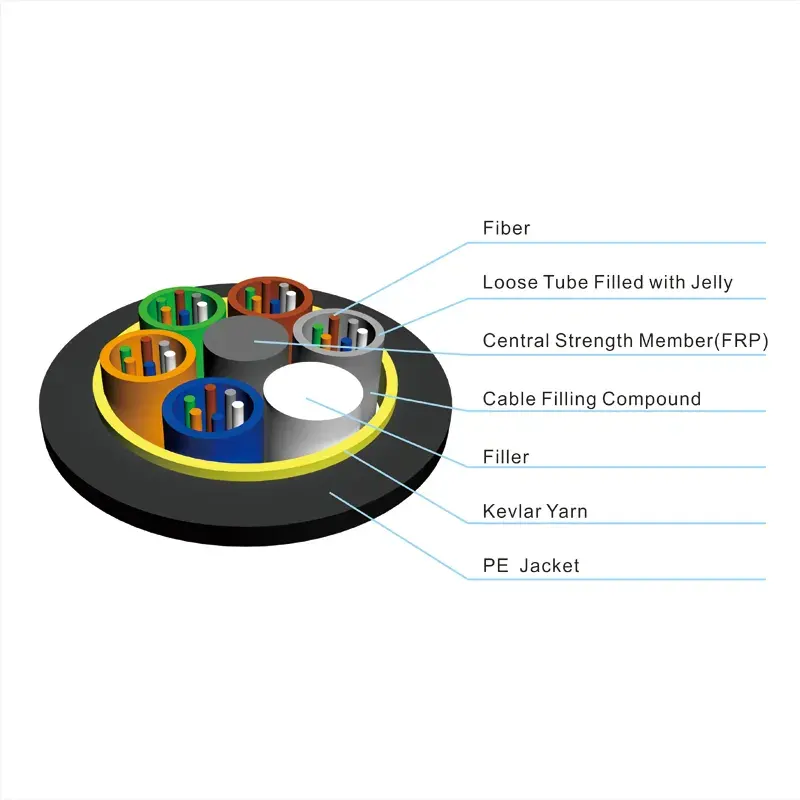

ADSS cable is constructed in a loose tube stranded style. Each
fiber, at a diameter of 250μm, is positioned and insulated in a
tube made of high modulus plastics and filled with a
water-resistant compund. The tubes as well as the fillers are then
wrapped around a FRP (Fiber Reinforced Plastic) in the middle as a
non-metallic strength member to create a very compact and circular
cable core. Lastly, a thin PE (polyethylene) inner sheath is
installed and a stranded layer of aramid yarns are applied and held
together as the strength member. Once done, the cable is covered
with a PE or AT (anti-tracking) outer sheath and is then entirely
complete.
Features:
The mechanical and thermal performance of this cable is very good.
With its light weight and small diameter, the loads caused by ice
and wind as well as the weight on towers and backdrops can be
reduced. Furthermore, this cable is equipped with aramid yarn which
improves the tensile strength of the cable. The maximum span length
for this cable is more than 1000 meters, making it convenient for
large-scale applications.
| No. | Items | Unit | Specification |
| G.652D |
| 1 | Mode Field Diameter | 13 10nm | μm | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 |
| 2 | Cladding Diameter | μm | 124.8±0.7 |
| 3 | Cladding Non-Circularity | % | ≤0.7 |
| 4 | Core-Cladding Concentricity Error | μm | ≤0.5 |
| 5 | Coating Diameter | μm | 245±5 |
| 6 | Coating Non-Circularity | % | ≤6.0 |
| 7 | Cladding-Coating Concentricity Error | um | ≤12.0 |
| 8 | Cable Cutoff Wavelength | μm | λcc≤1260 |
| 9 | Attenuation(max.) | 1550nm | dB/km | ≤0.36 |
| 1310nm | dB/km | <0.22 |
Applications:
Setting up a long-distance telecom, or even LAN in high-voltage
area, is easy to achieve with the self-support aerial method.
The self-support aerial method is an incredibly powerful tool,
allowing users in a high-voltage area to gain access to telecom
network despite its challenging conditions. It is a quick and
effective installation process that can be completed with great
cost efficiency.
This method is reliable and can provide secure access, ensuring a
interruption-free connection that can be available to users for a
long-term duration.
Customization:
ADSS Fiber Optic Cable
- Brand Name: JQ
- Model Number: ADSS
- Place of Origin: Guangzhou China
- Storage Temperature: -40℃~+85℃
- Attenuation: 1310nm: ≤0.36dB/km, 1550nm: ≤0.22dB/km
- Cable Length: 1km/2km/3km/4km/5km
- Fiber Type: Single-mode
- Name: ADSS Fiber Optic Cable
- Special Feature: Aerial Fiber Optical Cable, 72F and 96F ADSS
Cable: 100M Span, Aerial Fiber Optical Cable
Support and Services:
ADSS Fiber Optic Cable Technical Support and Service
ADSS Fiber Optic Cable provides comprehensive technical support and
service that help customers in the installation, operation and
maintenance of their fiber optic cable.
We offer both online and telephone support for customers with
inquiries about installation, operation and maintenance. Our
technicians are available 24/7 to answer any questions and help
troubleshoot any issues related to the fiber optic cable.
We also offer on-site installation and maintenance services for
customers who need help with the installation or maintenance of
their fiber optic cable. We have a team of experts that are
knowledgeable in fiber optics and can assist customers in any way
needed.
For more information on our technical support and services, please
contact us at your convenience.
Packing and Shipping:
ADSS Fiber Optic Cable Packaging and Shipping:
ADSS fiber optic cables are packaged and shipped in bundles of
varying lengths, depending on the customer's preference. The cables
are securely fastened together to prevent tangling and fraying, and
each bundle is carefully wrapped in a protective plastic film. The
bundles are then packed in cardboard boxes, which are labeled with
the product information and shipping address. The boxes are then
sealed with durable tape and shipped via ground or air freight,
depending on the customer's needs.
FAQ:
Q1: What is the Brand Name and Model Number of ADSS Fiber Optic
Cable?
A1: The Brand Name is JQ and the Model Number is ADSS.
Q2: Where is it manufactured?
A2: ADSS Fiber Optic Cable is manufactured in Guangzhou, China.
Q3: What is the transmission speed of ADSS Fiber Optic Cable?
A3: ADSS Fiber Optic Cable supports up to 10 Gbps transmission
speed.
Q4: What is the range of ADSS Fiber Optic Cable?
A4: The range of ADSS Fiber Optic Cable is up to 80km.
Q5: What is the core diameter of ADSS Fiber Optic Cable?
A5: The core diameter of ADSS Fiber Optic Cable is 0.9mm.
