    Outdoor Single mode Duct G652D FRP strength member 12 24 48 96 core optical fiber cable fibra optic GYFTY

    Ask Lasest Price
    Brand Name : JQ/OEM
    Model Number : GYFTY
    Certification : ISO9001/ ROHS/ CE/ FCC
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 8000 kilometers per month
    Delivery Time : 5-7 work days
    • Product Details
    • Company Profile

    Outdoor Single mode Duct G652D FRP strength member 12 24 48 96 core optical fiber cable fibra optic GYFTY

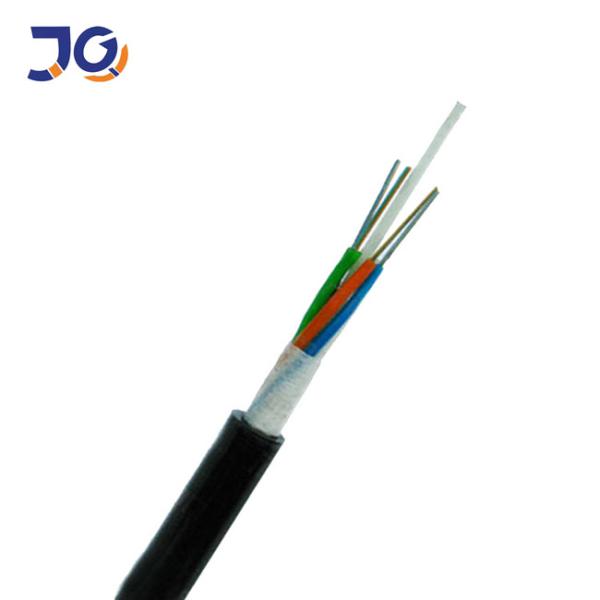

    GYFTY Outdoor Aerial 24 48 96Core Fiber Optic Cable with FRP Strength Member

    The fibers, 250μ m, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant
    filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and
    fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with the filling
    compound to protect it from water ingress, the cable is completed with a PE sheath.

    Performance :

    Max attenuation : 0.35dB @ 1310nm and 0.21dB/Km @1550nm Fiber : G652D

    Installation: Suitable for aerial or duct
    Application: Apply to Long distance communication system, Local area network system and Subscriber network system
    Operating temperature : -40°C~+70°C
    Permisson bent radius Static : 10 times O.D.
    Dynamic : 20 times O.D.

    Application:
    Long-distance telecom, LAN in high-voltage area or access to telecom network
    Especially for power transmission system. excessive thunder areas and high electromagnetic interference.
    Recommended layings methods
    High-voltage area, A
    erial


    Advantages:

    1. Low dispersion and attenuation.
    2. Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and
    environmental characteristics.
    3. Anti-electromagnetism ability.
    4. Small cable diameter, light cable weight, easily to install.
    environmental characteristics.
    3. Anti-electromagnetism ability.
    4. Small cable diameter, light cable weight, easily to install.

    Packing

    Each single length of cable shall be reeled on Fumigated Wooden Drum suitable for long distance shipment.

    Covered by plastic buffer sheet.

    Sealed by strong wooden battens.

    At least 1 m of inside end of cable will be reserved for testing.


    FAQ

    1.Are you tradning company or manufacturer?

    We are the manufacturer with 10 years' experience ,we are specialized in research,development and production

    for fiber optic cable,drop cable and path cord ect. Our factory is in Guangzhou city,welcome to visit us!

    2.About the quality?

    We will delivery before tested every fibers when finished production.

    After price confirmation, you can require for free samples to check our quality.

    3.Can you accept small order?

    Yes, small order is available. We support new project of our customers, as we know business is always from small order.

    4.What is your delivery time?

    Usually about 3-7days working days,it mainly depend on order quantity.

    But pls be assured that we will arrange your goods asap after your payment .


    5.Can you accept the OEM service?

    Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
