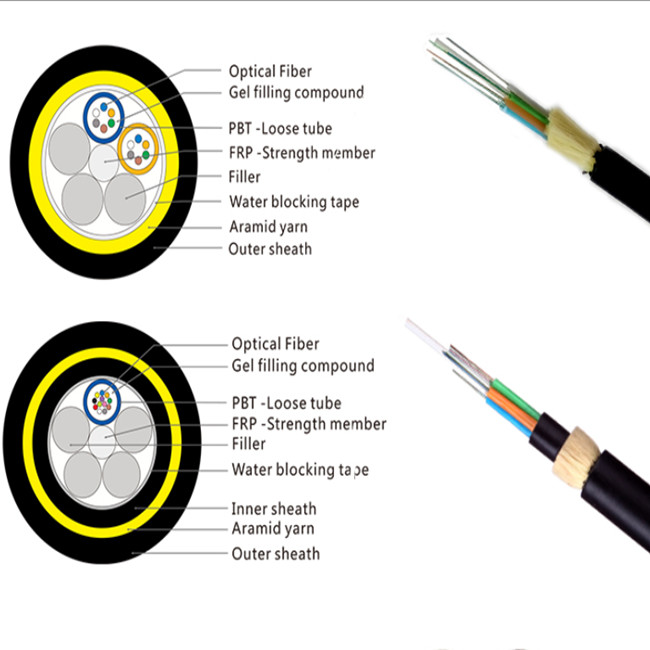

Factory Price All Dielectric Self-Supporting 12 24 48 core ADSS single jacket optical fiber cable

Ask Lasest Price
Brand Name :	JQ\OEM
Model Number :	ADSS
Certification :	CE/ISO9001
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	80000 kilometers per month
Delivery Time :	2-4 days
MOQ :	1KM

Add to Cart

Product Details
Company Profile

Factory Price All Dielectric Self-Supporting 12 24 48 core ADSS single jacket optical fiber cable

Fiber parameter

Item		Unit	Specification
Fiber Type			G.652D
Mode field diameter	1310nm	mm	9.2±0.4
Mode field diameter	1550nm	mm	10.4±0.8
Cladding diameter		mm	125.0±1
Cladding non-circularity		%	≤1.0
Core/cladding concentricity error		mm	≤0.5
Coating diameter		mm	245±5
Coating non-Circularity		%	≤6.0
Coating/cladding concentricity error		mm	≤12.0
Cable cut-off wavelength		nm	≤1260
Attenuation Coefficient	1310nm	dB/km	≤0.36
Attenuation Coefficient	1550nm	dB/km	≤0.22
Proof stress level		kpsi	≥100

Factory Price All Dielectric Self-Supporting 12 24 48 core ADSS single jacket optical fiber cable

Product packaging

Packing :
Each single length of cable shall be reeled on Fumigated Wooden
Drum suitable for long distance shipment.
Sealed by strong wooden battens.
At least 1 m of inside end of cable will be reserved for testing.

Total quantity is at least the ordered quantity

100% Wood Reel
100% wood reel , fumigation label, safe, environmentally friendly
and can be recycled

Cable Rolling
Different dia of wood drum suit for different distance , from 2km
to 5km

Solid Wood Package
The packaging is firm and can be applied to complex geographical
environment construction

Payment:

We usually use T/T

T/T deposit before production and balance when shipment.

Product Tags:

12 core ADSS Fiber Optic Cable

24 core ADSS Fiber Optic Cable

12 24 48 core ADSS Cable
