Good Quality GYFTY 12 24 48 96 Core Outdoor Duct Fiber Optic Cable

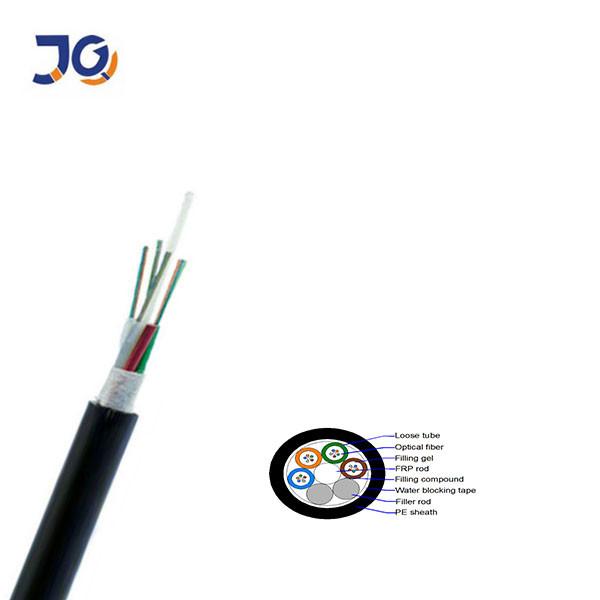

Non-Armoured Optical Fiber Cable GYFTY GYFXY
The fibers, 250μm, are positioned in a loose tube which is made of
a high modulus plastic. All the tubes are filled with a water-
resistent filling compound. We use the FRP(fiber reinforced
plastic) as the strength member. The optical cable have a very good
mechanical and temperature performance. You don't need to worry
about the crush resistance and flexibility during the storage and
operating.
Cable Performance
Item |
Contents | Value |
| 6/12/24 | 48 | 72 | 96 |
| Structure | Type | 1+6 | 1+6 | 1+8 | 1+12 |
Loose tube | Max Fiber counts/tube | 6 | 12 | 12 | 12 |
| Outer diameter (mm) | 1.9±0.1 | 2.2±0.1 | 2.2±0.1 | 2.2±0.1 |
Central strength member | Material | FRP |
| Diameter (mm) | 1.4 | 1.6 | 2.0 | 2.2 |
| PE layer diameter (mm) | -- | -- | | 3.5 |
| Peripheral strength member | Material | FRP |
Sheath | Material | HDPE |
| Color | Black |
| Thickness (mm) | Nominal: 1.6 |
| Cable diameter(mm) Approx. | 8.8±0.2 | 9.2±0.2 | 9.5±0.3 | 11.0±0.3 |
| Cable weight(kg/km) Approx. | 60 | 65 | 75 | 103 |
Fiber parameter
| Item | Unit | Specification |
| Fiber Type | G.652D |
Mode field diameter | 1310nm | mm | 9.2±0.4 |
| 1550nm | mm | 10.4±0.8 |
| Cladding diameter | mm | 125.0±1 |
| Cladding non-circularity | % | ≤1.0 |
| Core/cladding concentricity error | mm | ≤0.5 |
| Coating diameter | mm | 245±5 |
| Coating non-Circularity | % | ≤6.0 |
| Coating/cladding concentricity error | mm | ≤12.0 |
| Cable cut-off wavelength | nm | ≤1260 |
Attenuation Coefficient | 1310nm | dB/km | ≤0.36 |
| 1550nm | dB/km | ≤0.22 |
| Proof stress level | kpsi | ≥100 |
Company profile:
Guangzhou jiqian fiber optic cable co.,ltd is a high-tech company
group engaged in researching, manufacturing, selling
communication products with our import and export rights. Our
corporation is a professional manufacturer of fiber optic cable for
10 years, with ISO9001, FCC, ROHS and CE certificates. We OEM or
design any structure of fiber optic cable for you. The main
products of our company are: optical fiber cables/FTTH Drop Cable.
All of the products are widely used in telecom, railway and other
communication products related department, exported to many
countries and districts such as North/South America, Europe,
Mideast and Southeast Asia.Africa
FAQ:
1,Q:Are you a factory or trade company?
A:We are a factory
2,Q:What is the MOQ?
A:The MOQ of Fiber Optic cable is 1km.
3.Q:Which brand of fiber do you use?
A:YOFC,Fiberhome,etc
4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our
customers as we know business is always from small order.
5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It
depends on the order quantity.
6.Can you supply customized products and logo?
A:Yes. We supply OEM service.
7.What’s your payment terms?
A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before
shipment.
