    96 Core ADSS Cable Optic Aerial Fiber Cable Per 1 Km

    Ask Lasest Price
    Brand Name : jiqian
    Model Number : ADSS 48Core 96core 144core
    Certification : ISO9001/CE
    Payment Terms : Western Union, MoneyGram, T/T, L/C
    Supply Ability : 100km per Month
    Delivery Time : 2-4days
    • Product Details
    • Company Profile

    96 Core ADSS Cable Optic Aerial Fiber Cable Per 1 Km

    96 Core ADSS Cable Optic Aerial Fibra Optica Cable Per 1 Km Price
    ADSS (All-Dielectric Self-Supporting) cable is ideal for installation in distribution as well as transmission environments, even when live-line installations are required.
    Cable Paremeter:

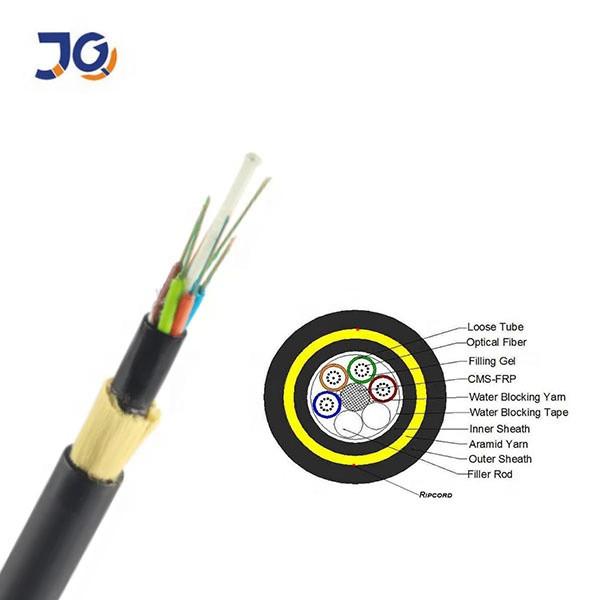

    Cable Structure and Parameter
    Fiber Count
    12
    48
    Number of tube & Fillers
    1+4
    4+1
    Fiber number per tube
    12
    12
    Central strength member, FRP diameter (mm)
    1.5
    1.5
    PBT Loose tube diameter (mm)
    2.0
    2.0
    Sheath thickness (mm)
    1.8
    1.8
    Cable diameter (mm)
    10.2
    10.5
    Cable weight (kg/km)
    100
    105
    Tensile strength(N) while fiber strain is ≤0.33%
    3000
    3000

    Technical Data:


    Cable fiber count
    /
    2~30
    32~60
    62~72
    Structure
    /
    1+5
    1+5
    1+6
    Fiber style
    /
    G.652D
    Central strength member
    material
    mm
    FRP
    Diameter (average)
    1.5
    1.5
    2.1
    Loose Tube
    Material
    mm
    PBT
    Diameter (average)
    1.8
    2.1
    2.1
    Thickness(average)
    0.32
    0.35
    0.35
    Max fiber/loose tube
    6
    12
    12
    Tubes color
    Full color identification
    Fiber excess length
    %
    0.7~0.8
    Water resistance
    Material
    /
    Cable jelly
    Inner sehath
    material
    mm
    MDPE
    Inner sheath
    0.9mm
    Non-metallic strengthen components
    Material
    /
    Aramid Yarn
    Outer sheath
    material
    mm
    MDPE
    Outer sheath
    1.8mm
    Cable diameter(average)
    mm
    10.9
    11.5
    12.1
    Cable weight (Approximate)
    kg/km
    95
    110
    120
    Cable Sectional area
    mm2
    93.31
    103.87
    114.99
    Attenuation coefficient(Max)
    1310nm
    dB/km
    0.35
    1550nm
    0.21
    Rated Tensile Strength(RTS)
    kn
    6
    Max allowed tension( MAT)
    kn
    2.5
    Annual average operating tension (EDS)
    kn
    3.2
    Young's modulus
    kn/mm2
    7.8
    Coefficient of thermal expansion
    10-6/℃
    9
    Crush resistance
    Long term
    N/100mm
    1100
    Short term
    2200
    Permission Bent Radius
    static
    mm
    15 of OD
    dynamic
    20 of OD

    Long Span ADSS Double Jacket Fiber Cable Up To 1500m Span

    Fiber Type:G652D; G655C; 657A1; 50/125; 62.5/125; OM3; OM4 As Options

    Span: 500-1500m

    Application: Self-support Aerial installation

    Standards:ADSS Fiber Optical Cable complies with IEEE 1222, IEC 60794-4-20, ANSI/ICEA S-87-640, TELCORDIA GR-20, IEC 60793-1-22, IEC 60794-1-2, IEC 60794

    Packing details:

    1.1-3km/wooden reel,other lengths of the cable are also available as per the buyer's requirements

    1.One wooden reel of the cable packed in a carton

    The time of shipping:1-500km will be shipped in eight days,above 500km can be negotiated about


    FAQ:

    1. Are you the real manufacturer?
    Yes, we are factory in guangzhou china, welcome to visit us!

    2. what is your minimum quantity?
    1KM. We support new project of our customers, trial order is available


    3.Can I get a sample?
    Yes, we provide FREE sample and you just need to pay for express freight.


    4.What about Payment?

    L/C,T/T,Western Union and Paypal are acceptable.


    5.Delivery time?

    Generally 3-7 working days, also it is according to qty.


    6.Can you supply customized products and logo?
    Yes, we supply OEM&ODM service, pls feel free to contact.

    7.Which brand of fiber do you use?

    Corning,YOFC,Fiberhome,etc
