Factory price 2/4/6/8/12/24 core central loose tube armored GYXTW
fiber optic cable
Fiber Optic Cable G652D
| Item | Unit | Specification |
| Fiber Type | G.652D |
| Mode field diameter | 1310nm | μm | 9.2±0.4 |
| 1550nm | μm | 10.4±0.8 |
| Cladding diameter | μm | 125.0±1 |
| Cladding non-circularity | % | ≤1.0 |
| Core/cladding concentricity error | μm | ≤0.5 |
| Coating diameter | μm | 245±5 |
| Coating non-Circularity | % | ≤6.0 |
| Coating/cladding concentricity error | μm | ≤12.0 |
| Cable cut-off wavelength | nm | ≤1260 |
| Attenuation Coefficient | 1310nm | dB/km | ≤0.36 |
| 1550nm | dB/ks | ≤0.22 |
| Proof stress level | kpsi | ≥100 |

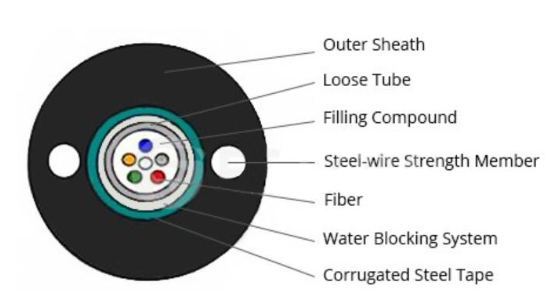

Cable performance:
| Item | Parameter |
| Fiber Count | 6 |
| Colored coated fiber | Dimension | 250µm±15µm |
| Color | Blue,Orange,Green,Brown,Gray,White |
| Loose tube | Dimension | 2.2mm±0.1mm |
| Material | PBT |
| Color | nature |
| Filler | Material | none |
| Color | none |
| Strength Member | Dimension | 1.0mm |
| Material | Galvanized steel wire |
| Armoured | Material | Corrugated steel tape |
| Outer jacket | Material | HDPE |
| Color | Black |
Company profile:
Guangzhou jiqian fiber optic cable co.,ltd is a high-tech company
group engaged in researching, manufacturing, selling
communication products with our import and export rights. Our
corporation is a professional manufacturer of fiber optic cable for
10 years, with ISO9001, FCC, ROHS and CE certificates. We OEM or
design any structure of fiber optic cable for you. The main
products of our company are: optical fiber cables/FTTH Drop Cable.
All of the products are widely used in telecom, railway and other
communication products related department, exported to many
countries and districts such as North/South America, Europe,
Mideast and Southeast Asia.Africa
FAQ:
1,Q:Are you a factory or trade company?
A:We are a factory
2,Q:What is the MOQ?
A:The MOQ of Fiber Optic cable is 1km.
3.Q:Which brand of fiber do you use?
A:Corning,YOFC,Fiberhome,etc
4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our
customers as we know business is always from small order.
5,Q:What’s delivery time?
A:The general delivery time is 5-7 days,It depends on the order
quantity.
6.Can you supply customized products and logo?
A:Yes. We supply OEM service.
7.What’s your payment terms?
A: We accept T/T,L/C,Western Union, 30% in advance and 70% before
shipment.
Welcome to visit our factory
Contact me at +8618998347595 to get free sample
