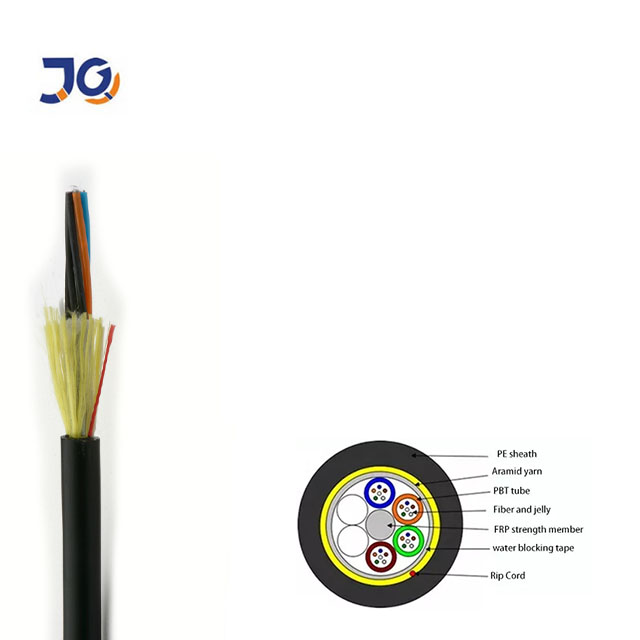

Cabo fibra óptica para exteriores, cable dieléctrico aéreo de fibra
óptica, ADSS, 4, 6, 8, 10, 12, 24, 48, 96, 144 core
Cable Performance
Item |
Contents | Value |
| 6/12/24 | 48 | 72 | 96 |
| Structure | Type | 1+6 | 1+6 | 1+8 | 1+12 |
Loose tube | Max Fiber counts/tube | 6 | 12 | 12 | 12 |
| Outer diameter (mm) | 1.9±0.1 | 2.2±0.1 | 2.2±0.1 | 2.2±0.1 |
Central strength member | Material | FRP |
| Diameter (mm) | 1.4 | 1.6 | 2.0 | 3.5 |
| PE layer diameter (mm) | -- | -- | | |
| Peripheral strength member | Material | FRP |
Sheath | Material | HDPE |
| Color | Black |
| Thickness (mm) | Nominal: 1.6 |
| Cable diameter(mm) Approx. | 9.8±0.2 | 10.0±0.2 | 11.8±0.3 | 13.8±0.5 |
| Cable weight(kg/km) Approx. | 128 | 131 | 148 | 152 |
Fiber parameter
| Item | Unit | Specification |
| Fiber Type | G.652D |
| Mode field diameter | 1310nm | μm | 9.2±0.4 |
| 1550nm | μm | 10.4±0.8 |
| Cladding diameter | μm | 125.0±1 |
| Cladding non-circularity | % | ≤1.0 |
| Core/cladding concentricity error | μm | ≤0.5 |
| Coating diameter | μm | 245±5 |
| Coating non-Circularity | % | ≤6.0 |
| Coating/cladding concentricity error | μm | ≤12.0 |
| Cable cut-off wavelength | nm | ≤1260 |
| Attenuation Coefficient | 1310nm | dB/km | ≤0.36 |
| 1550nm | dB/km | ≤0.22 |
| Proof stress level | kpsi | ≥100 |
Company profile:
Guangzhou jiqian fiber optic cable co.,ltd is a high-tech company
group engaged in researching, manufacturing, selling
communication products with our import and export rights. Our
corporation is a professional manufacturer of fiber optic cable for
10 years, with ISO9001, FCC, ROHS and CE certificates. We OEM or
design any structure of fiber optic cable for you. The main
products of our company are: optical fiber cables/FTTH Drop Cable.
All of the products are widely used in telecom, railway and other
communication products related department, exported to many
countries and districts such as North/South America, Europe,
Mideast and Southeast Asia.Africa
Exhibition
FAQ:
1.Are you a manufacturer or trade company?
Yes. We are a factory in Guangzhou,China
2.Do you provide samples? is it free or charched?
Yes, sample is available, It's free,just need to pay for the
freight
3.Do you accept small order?
Yes, small order is available .We support new project of our
customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5.Which kind of certification you have ?
ISO9001/CE/ROHS/FCC
6.What is your delivery time?
Usually 5-7 working days,It depends on order quantity
7.What is your fiber brand?
Corning,YOFC ,Fiberhome
8.What is your payment method?
T/T, L/C, Western Union and Paypal.
9.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your
requirements
