Fiber Optic Cable ADSS-32F G652D Single PE Jacket 100 Meters Span
The ability to tolerate extreme weather (strong winds and icing) is
strong.
The outer sheath of ADSS optical cable is AT or PE material. It
operates in strong electric field, and there is corrosion problem.
ADSS fiber cable will have wind vibration. Smooth and stable
transverse wind to the cable will cause wind vibration and fatigue
damage at the hanging point.
ADSS cable has a certain resistance to pressure and can withstand
the greater grip strength of the tension clamp.
Features

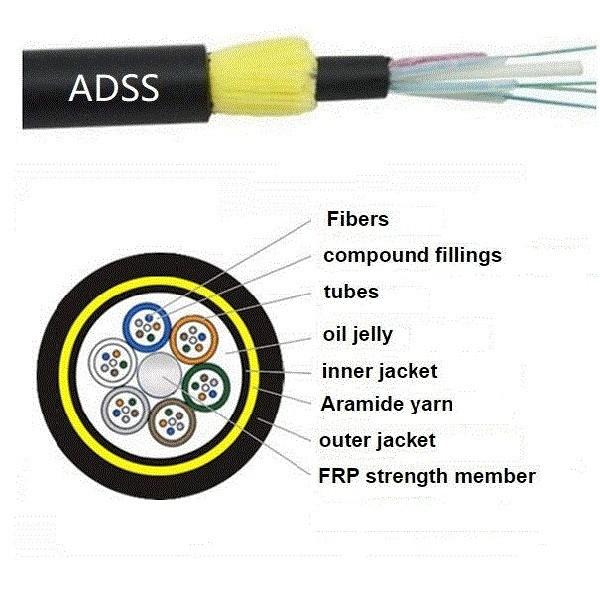

* Single Fiber Reinforced Plastic as the central strength
member,Loose tube filling compound
* Can be installed without shutting off the power
* Light weight and small diameter reducing the load caused by ice
and wind and the load on towers and backprops
* Large span lengths 100m/200m/300m/400m
* Good performance of tensile strength and temperature
* The design life span is 30 years,special tube filling compound
ensure a critical protection of fiber.
* Package : 2~4km/ Export wooden drum
Specification
| Fiber cores | 32F |
| Span (Meters) | 100 M |
| Aramid quality | International A level |
| Jacket material | PE |
| Jacket thickness | 1.8 mm |
| Wind Speed (m/s) | <30 |
| Cable outer diameter OD | 9.8 ±0.5 mm |
| Cable weight | 85 kg/km |
| Length/drum | 5km |
| 5km/drum gross weight | 460kg |
| Tensile Strength(N/100mm) | 2200 |
| Min Bending Radius(mm) | Static | 15D |
| Dynamic | 25D |
Optical Cores Characteristics:
| G.652D | 50/125μm | 62.5/125μm | OM3-300 |
| Attenuation (+20℃) | @850nm | | ≤3.0 dB/km | ≤3.0 dB/km | ≤3.0 dB/km |
| @1300nm | | ≤1.0 dB/km | ≤1.0 dB/km | ≤1.0 dB/km |
| @1310nm | ≤0.36 dB/km | | | |
| @1550nm | ≤0.22 dB/km | | | |
| Bandwidth(Class A) | @850nm | | ≥500 MHz·km | ≥600 MHz·km | ≥600 MHz·km |
| @1300nm | | ≥1000 MHz·km | ≥1000 MHz·km | ≥1000 MHz·km |
| Numerical Aperture | | 0.200±0.015NA | 0.275±0.015NA | 0.275±0.015NA |
| Cable Cut-off Wavelength λcc | ≤1260nm | | |
Product Show
Application
Suitable for Aerial Laying method
Storage / Operating Temperature: -40℃~+70℃
Package Detail
Export Wooden drum,Normal shipping length of the cable will be
1~4km.
Other length is also available if required by buyer.
Mark:Usually we only attach the test report on the packaging, but
your request is available too.
For example:
A.Company Name
B.Gross/Net Weight
C.Fiber Type
D.Cable Length
Shipping:
By sea/by air or express delivery,it depends on the order quantity
Lead time:
| Quantity(km) | 1-300 | Above 300 |
| Earliest time(day) | 7-10 | Negotiable |
