Outdoor Fibra Optica Adss 24 48 96 144 Core Loose Tube Fiber
Optical cable, Adss Fiber Optic Cables

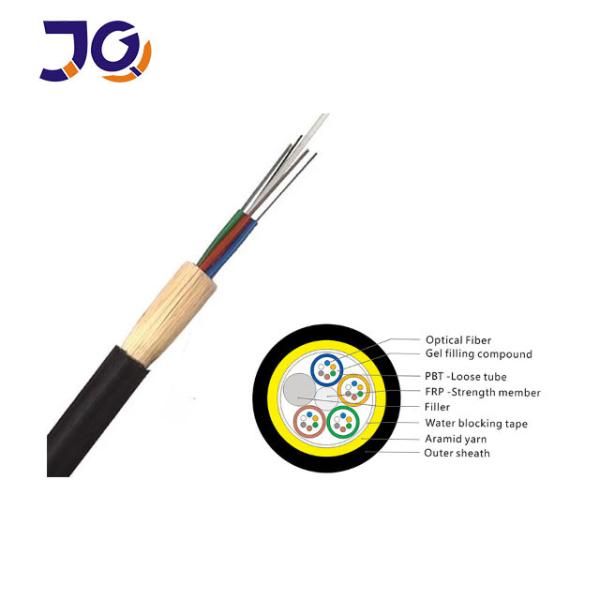

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned
into a loose tube made of high modulus plastics.
The tubes are filled with a water-resistant filling compound. The
tubes (and fillers) are stranded around a FRP
(Fiber Reinforced Plastic) as a non-metallic central strength
member into a compact and circular cable core.
After the cable core is filled with filling compound. it is covered
with thin PE (polyethylene) inner sheath.
After stranded layer of aramid yarns are applied over the inner
sheath as strength member,
the cable is completed with PE or AT (anti-tracking) outer sheath.
Features
• Can be installed without cutting off the power
• Light weight and small cable diameter, reducing the impact of
ice, wind and the load on the tower and support
• Large span, the maximum span is more than 1000 meters
• Has excellent tensile properties and temperature characteristics
• Life expectancy 30 years
| 2-96 fibers | 98-288fibers |
Max. Tension (N) | | 1500 | 3000 |
Max. Tension (N) | | 600 | 1000 |
Max. Crushing Resistance (N/100mm2) | |
Temperature range(°C) | -40°C-- +70°C |
Min. Bending Radius(mm) | Install | 20D |
Min. Bending Radius(mm) | Static | 10D |
| | G.652 | G.655 | 50/125μm | 62.5/125μm |
Attenuation (+20℃) | @850nm | | | ≤3.0 dB/km | |
@1300nm | | | ≤1.0 dB/km | |
@1310nm | ≤0.36 dB/km | ≤0.40 dB/km | | |
@1550nm | ≤0.22 dB/km | ≤0.23dB/km | | |
Bandwidth (Class A) | @850nm | | | ≥500 MHz·km | ≥200 MHz·km |
@1300nm | | | ≥1000 MHz·km | ≥600 MHz·km |
Numerical Aperture | | | | 0.200±0.015NA | 0.275±0.015NA |
Cable Cut-off Wavelengthλcc | | ≤1260nm | ≤1480nm | | |
Packing:
FAQ
1,Q:Are you a factory or trade company?
A:We are a factory
2,Q:What is the MOQ?
A:The MOQ of Fiber Optic cable is 1km.
3.Q:Which brand of fiber do you use?
A:YOFC,Fiberhome,etc
4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our
customers as we know business is always from small order.
5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It
depends on the order quantity.
6.Can you supply customized products and logo?
A:Yes. We supply OEM service.
7.What’s your payment terms?
A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before
shipment.
