2 / 4 / 6 / 8 / 12 / 16 / 24 Core Single Mode Outdoor Armoured
GYXTW Multicore Telecommunication Fiber Optic Cable
GYXTW 12 Core Fiber Optic Outdoor Fiber Optic Cable
GYXTW specification

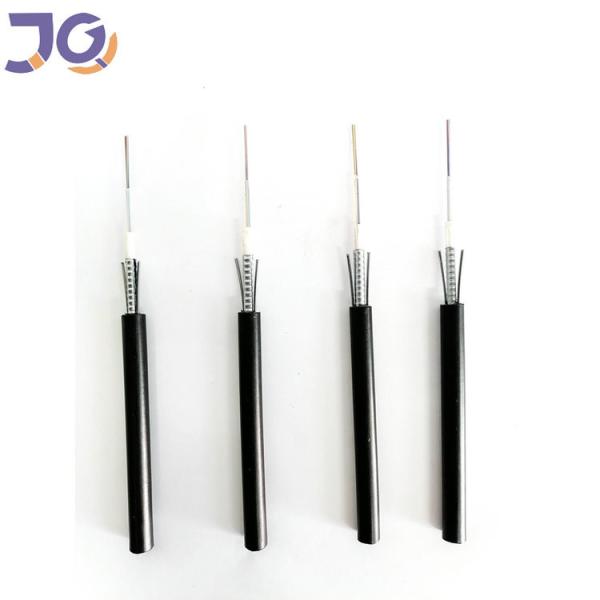

Cross Section of Cable
Fiber parameter
| Item | Unit | Specification |
| Fiber Type | G.652D |
| Mode field diameter | 1310nm | mm | 9.2±0.4 |
| 1550nm | mm | 10.4±0.8 |
| Cladding diameter | mm | 125.0±1 |
| Cladding non-circularity | % | £1.0 |
| Core/cladding concentricity error | mm | £0.5 |
| Coating diameter | mm | 245±5 |
| Coating non-Circularity | % | £6.0 |
| Coating/cladding concentricity error | mm | £12.0 |
| Cable cut-off wavelength | nm | £1260 |
| Attenuation Coefficient | 1310nm | dB/km | £0.36 |
| 1550nm | dB/km | £0.22 |
| Proof stress level | kpsi | ≥100 |
Note: Other parameters meet standard ITU-T G.652
Cable Performance
| Item | Parameters |
| Fiber Count | 12 |
| Colored coated fiber | Dimension | 250µm±15µm |
| Color | Blue,Orange,Green,Brown,Gray,White,Red,Black,Yellow,Purple,Pink,Aqua |
| Loose tube | Dimension | 2.2mm±0.1mm |
| Material | PBT |
| Color | nature |
| Filler | Material | none |
| Color | none |
| Strength Member | Dimension | 0.7mm±0.05mm |
| Material | Phosphating steel wire |
| Armoured | Material | Plastic coated steel strip |
| Outer jacket | Material | PE |
| Color | Black |
Mechanical and Environmental Characteristics
| Item | Unit | Specifications |
| Tension(Long Term) | N | 600 |
| Tension(Short Term) | N | 1500 |
| Crush(Long Term) | N/10cm | 300 |
| Crush(Short Term) | N/10cm | 1000 |
| Min. Bend Radius(Dynamic) | mm | 20D |
| Min.Bend Radius(Static) | mm | 10D |
| Installation Temperature | ℃ | -40～+60 |
| Operating Temperature | ℃ | -40～+70 |
| Storage Temperature | ℃ | -40～+70 |
| Repeating bending(重复弯曲) | Load:250N;number of cycles:30 No obvious addition attenuation, no
fiber break and no cable damage. |
| Torsion(扭曲) | Load:250N; number of cycles:10; twist angle:±90° No obvious
addition attenuation, no fiber break and no cable damage. |
| Impact(冲击) | Impact energy:450g×1m; radius of hammer head:12.5mm; number of
impact: 5 No obvious addition attenuation, no fiber break and no
cable damage. |
Dimensions of Cable Constructions
| Fiber count | Structure | Fibers per tube | Loose tube diameter (mm) | CSM diameter/pad diameter (mm) | Nominal Thickness of outer jacket (mm) | Cable diameter/ Height (mm) | Cable weight (kg/km) |
| 2 | 1 | 2 | 1.7±0.1 | 1.0/1.0 | 1.6 | 8.0±0.2 | 57 |
| 4 | 1 | 4 | 1.85±0.1 | 1.0/1.0 | 1.6 | 8.0±0.2 | 58 |
| 6 | 1 | 6 | 1.9±0.1 | 1.0/1.0 | 1.6 | 8.0±0.2 | 58 |
| 8 | 1 | 8 | 2.0±0.1 | 1.0/1.0 | 1.6 | 8.0±0.2 | 60 |
| 12 | 1 | 12 | 2.2±0.1 | 1.0/1.0 | 1.6 | 8.0±0.2 | 60 |
Drum
| Cable type | Drum(17kg) |
| Height (mm) | Width (mm) | Inner diameter (mm) | Length (km) | Drum type |
| GYXTW | 700 | 700 | 650 | 2 | wooden drum |
