Customized Black G652D FRP ADSS Fiber Optic Cable

Ask Lasest Price
Brand Name :	JQ/OEM
Model Number :	ADSS-DJ-144core
Certification :	ISO9001 ROHS CE FCC
Payment Terms :	L/C, T/T, Western Union
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

Customized Black G652D FRP ADSS Fiber Optic Cable

All-Dielectric self-supporting aerial ADSS 144 Cores outdoor Fiber Optic Cable

ADSS-144B1-PE-100

Benefits

Fiber Count up to 216f
The dry water blocking materials can easily be removed without the use of cable cleaning solvents, yielding significant labor cost savings
Suitable for all types of aerial lines
Rapid deployment
Installs on live power lines
Available for long, medium and short spans

Fiber Types

G.651 multi-mode fiber
G.652D single-mode fiber
G.655 NZDS fiber for DWDM applications

Full range of protections

Water Blocked

Full range of applications

Outdoor
Aerial

Optional protections

Track resistant

Cable structure	product name	ADSS-144B1-PE-100
	Center strengthen core FRP	3.0mm
	Loose tube (filling gel)	2.2±0.1mm
	Outsheath thickness PE	1.8±0.2mm
	Cable diameter	15.2±0.3mm
	cable weight	175±10%kg/km
	Loose tube(pcs)	12
	Each tube contains fibers	12cores
	Loose tube color	Blue,Orange,Green,Brown,Gray,Natural, Red,Black, Yellow,Purple,Pink,Aqua
	Optical fiber color	Blue,Orange,Green,Brown,Gray,Natural, Red,Black, Yellow,Purple,Pink,Aqua

Customized Black G652D FRP ADSS Fiber Optic Cable

Optical Cores Characteristics:

		G.652D	50/125μm	62.5/125μm	OM3-300
Attenuation (+20℃)	@850nm		≤3.0 dB/km	≤3.0 dB/km	≤3.0 dB/km
	@1300nm		≤1.0 dB/km	≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km
	@1550nm	≤0.22 dB/km
Bandwidth(Class A)	@850nm		≥500 MHz·km	≥600 MHz·km	≥600 MHz·km
Bandwidth(Class A)	@1300nm		≥1000 MHz·km	≥1000 MHz·km	≥1000 MHz·km
Numerical Aperture			0.200±0.015NA	0.275±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm

Package Detail

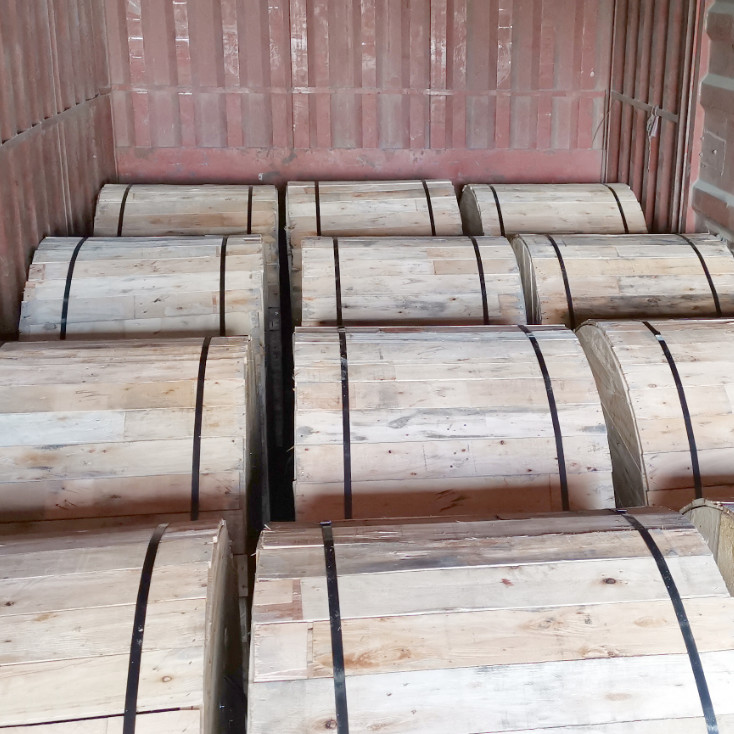

Export Wooden drum,Normal shipping length of the cable will be 1~4km.

Other length is also available if required by buyer.

Mark:Usually we only attach the test report on the packaging, but your request is available too.

For example:

A.Company Name
B.Gross/Net Weight
C.Fiber Type
D.Cable Length

Customized Black G652D FRP ADSS Fiber Optic Cable

Shipping:

By sea/by air or express delivery,it depends on the order quantity

Lead time:

Quantity(km)	1-300	Above 300
Earliest time(day)	7-10	Negotiable
