Double Jacket Aerial 6 Core Outdoor ADSS Fiber Optic Cable

Ask Lasest Price
Brand Name :	JQ/OEM
Model Number :	ADSS-DJ-6b1
Certification :	ISO9001 ROHS CE FCC
Payment Terms :	L/C, T/T, Western Union
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

Double Jacket Aerial 6 Core Outdoor ADSS Fiber Optic Cable

Double Jacket Aerial ADSS Fiber Optic Cable

Cores available: 1-144 cores

Span: 50-1000 meters

Applications:

Aerial & conduit/duct application

CATV

Local trunk line

Computer networks system

Fiber Types

G.651 multi-mode fiber
G.652D single-mode fiber
G.655 NZDS fiber for DWDM applications

Full range of protections

Water Blocked

Optional protections

Track resistant

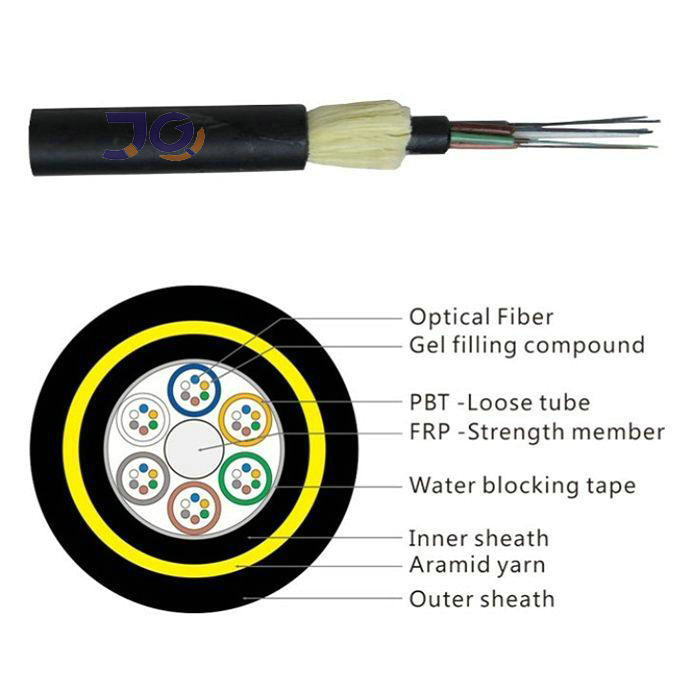

Dimensions of Cable Constructions

Fiber count	Structure	Fibers per tube	Loose tube diameter (mm)	CSM diameter/pad diameter (mm)	Nominal Thickness of outer jacket (mm)	Cable diameter/ Height (mm)	Cable weight (kg/km)
4	1+6	4	1.9±0.1	2.0/2.0	1.6	9.8±0.2	82
6	1+6	6	2.0±0.1	2.0/2.0	1.6	9.8±0.2	82
8	1+6	4	1.9±0.1	2.0/2.0	1.6	9.8±0.2	82
12	1+6	6	2.1±0.1	2.0/2.0	1.6	9.8±0.2	82
24	1+6	6	2.1±0.1	2.0/2.0	1.6	9.8±0.2	85
36	1+6	12	2.2±0.1	2.0/2.0	1.6	10.0±0.2	85
48	1+6	12	2.2±0.1	2.0/2.0	1.6	10.0±0.2	88
72	1+6	12	2.2±0.1	2.0/2.0	1.6	10.5±0.3	98
96	1+8	12	2.2±0.1	2.0/3.4	1.7	11.8±0.3	123
144	1+12	12	2.2±0.1	3.0/7.2	1.7	15.2±0.3	175

Package Detail

Export Wooden drum,Normal shipping length of the cable will be 1~4km.

Other length is also available if required by buyer.

Mark:Usually we only attach the test report on the packaging, but your request is available too.

For example:

A.Company Name
B.Gross/Net Weight
C.Fiber Type
D.Cable Length

FAQ:

1.What is your warranty time for ADSS aerial fiber cable ?

15 years' warranty for outdoor aerial optical fibre cables.

2. Do you have certificates for raw material?

ISO9001, ROHS,CE,FCC.

3. How long it takes shipping from China to South America countries ?

Usually 50 days by sea.
