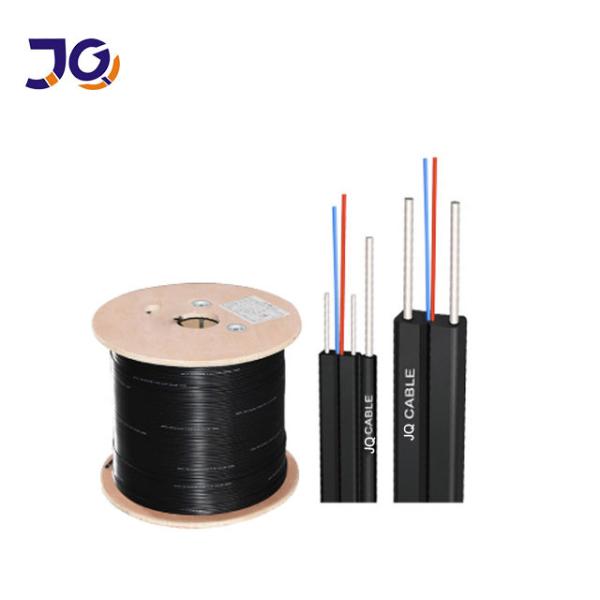

Factory Price Indoor Outdoor 2 Core Fibre Optic Network Ftth Drop
Cable G657a Fiber
FTTH fiber optic cable is Fiber to Home, which used for linking the
equipment and components in the fiber optic network. The fibers is
position between two parallel FRP / steel wire. Then it is
self-supported by diameter 1.0mm steel wire. it's completed with
black or white LSZH sheath.
Technical parameters
Cable type | OD(mm) | NominalWeight(kg/km) | tensile strength(N) | Crush Resistance(N/100MM) | Bending Radius(mm) |
Short-term | Long-term | Short-term | Long-term | Dynamic | Static |
GJXFH-1Xn | (2.0±0.1)*( 3.0±0.1) | 7.5 | 200 | 100 | 1000 | 500 | 20D | 15D |
GJXFH-2Xn | (2.0±0.1)*( 3.0±0.1) | 7.5 | 200 | 100 | 1000 | 500 | 20D | 15D |
GJXFH-3Xn | (2.0±0.1)*( 3.0±0.1) | 7.5 | 200 | 100 | 1000 | 500 | 20D | 15D |
GJXFH-4Xn | (2.0±0.1)*( 3.0±0.1) | 7.5 | 200 | 100 | 1000 | 500 | 20D | 15D |
Storage/Working temperature(℃) | -20~+60 |
Cable type | OD(mm) | NominalWeight(kg/km) | tensile strength(N) | Crush Resistance(N/100MM) | Bending Radius(mm) |
Short-term | Long-term | Short-term | Long-term | Dynamic | Static |
GJYXFCH-1Xn | (2.0±0.1)*( 6.2±0.3) | 23.6 | 600 | 300 | 2200 | 1000 | 20D | 15D |
GJYXFCH-2Xn | (2.0±0.1)*( 6.2±0.3) | 23.6 | 600 | 300 | 2200 | 1000 | 20D | 15D |
GJYXFCH-3Xn | (2.0±0.1)*( 6.2±0.3) | 23.6 | 600 | 300 | 2200 | 1000 | 20D | 15D |
GJYXFCH-4Xn | (2.0±0.1)*( 6.2±0.3) | 23.6 | 600 | 300 | 2200 | 1000 | 20D | 15D |
Storage/Working temperature(℃) | -20~+60 |
Packing:
Certification:
FAQ
1,Q:Are you a factory or trade company?
A:We are a factory
2,Q:What is the MOQ?
A:The MOQ of Fiber Optic cable is 1km.
3.Q:Which brand of fiber do you use?
A:YOFC,Fiberhome,etc
4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our
customers as we know business is always from small order.
5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It
depends on the order quantity.
6.Can you supply customized products and logo?
A:Yes. We supply OEM service.
7.What’s your payment terms?
A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before
shipment.
