Aluminum Tape Single Mode 96 Core GYTA Outdoor Fiber Optic Cable

Ask Lasest Price
Brand Name :	jiqian
Model Number :	GYTA 12 CORE
Certification :	ISO
Payment Terms :	Western Union, MoneyGram, T/T, L/C
Supply Ability :	100km per 2 day
Delivery Time :	2-4day

Add to Cart

Product Details
Company Profile

Aluminum Tape Single Mode 96 Core GYTA Outdoor Fiber Optic Cable

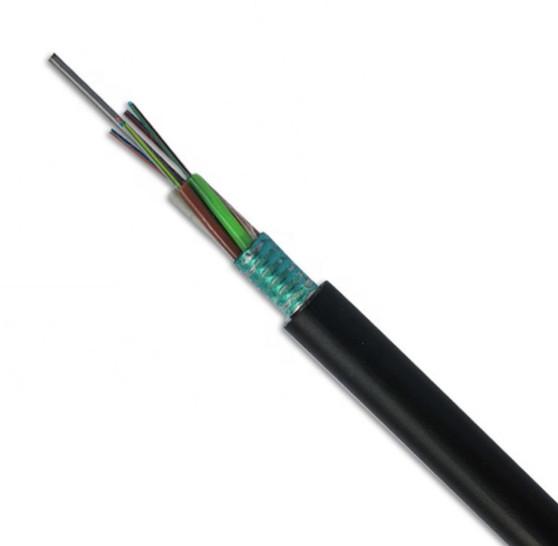

GYTA armoured fibre optic cable feature stranded loose tube filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fibre count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it from water ingress. Then, the cable is completed with a PE sheath. It'S suitable for installation for long haul communication and LANs, especially suitable for the situation of high requirements of moisture resistance.

Applications:

1.Long distance and local area network (LAN) communication.
Aerial & conduit / duct application.

2.Central Strength Member:

3.Fiberglass reinforced Platic (FRP) or steel wire strength member.

4.Armor:
Aluminum Tape Armor

Feature:

1. Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant
3. Special tube filling compound ensures a critical protection of fiber
4. Crush resistance and flexibility
5. The following measures are taken to ensure the cable watertight:
a. Steel wire used as the central strength member
b. Loose tube filling compound
c. 100% cable core filling
d. APL moisture barrier
e. Water-blocking material

Fiber Type		G.652	G.655	50/125μm	52.5/125μm
Attenuation (+20X)	850 nm			<3.0 dB/km	<3.3 dB/km
	1300 nm			<1.0 dB/km	<1.0 dB/km
	1310 nm	<0.36 dB/km	<0.40 dB/km
	1550 nm	<0.22 dB/km	0.23 dB/km
Bandwidth	850 nm			>500 MHz-km	>200 MHz-km
Bandwidth	850 nm			>500 MHz-km	>500 MHz-km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength cc		<1260 nm	<1480 nm

Fiber Count	Nominal Cable Diameter(mm)	Nominal Weight (kg/km)	Max FiberPer Tube	Max No. of (Tubes+fillers)	Allowable Tensile Load (N)		Allowable Crush Resistance (N/100mm)
Fiber Count	Nominal Cable Diameter(mm)	Nominal Weight (kg/km)	Max FiberPer Tube	Max No. of (Tubes+fillers)	Short term	long term	Short term	Long Term
2-36	10.3	109	6	6	1500	600	1000	300
38-72	11.5	145	12	6	1500	600	1000	300
74-96	13.5	175	12	8	1500	600	1000	300
98-120	14.8	209	12	10	1700	600	1000	300
122-144	16.6	249	12	12	2000	600	1000	300
146~216	16.7	254	12	18(2 layers)	2000	600	1000	300
218-288	19.0	325	12	24(2 layers)	2500	600	1000	300

FAQ:

1. Are you the real manufacturer?

Yes, we are factory in guangzhou china, welcome to visit us!

2. what is your minimum quantity?

1KM. We support new project of our customers, trial order is available

3.Can I get a sample?

Yes, we provide FREE sample and you just need to pay for express freight.

4.What about Payment?

L/C,T/T,Western Union and Paypal are acceptable.

5.Delivery time?

Generally 3-7 working days, also it is according to qty.

6.Can you supply customized products and logo?

Yes, we supply OEM&ODM service, pls feel free to contact.
