    GYTA53 Underground Burial Wire with high fiber counts

    Ask Lasest Price
    Brand Name : Jiqian
    Model Number : GYTA53
    Certification : CE/ISO9001
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 60000KM/month
    Delivery Time : 3-5 days, it depends on your quantity
    • Product Details
    • Company Profile

    GYTA53 Underground Burial Wire with high fiber counts


    Factory Price Underground Duct Direct Buried GYTA53 Armored Outdoor Fiber Optic Cable


    The Underground Direct Buried Fiber Optic Cable GYTA53 are designed to provide high fiber counts with the flexibility and
    versatility required for today's most demanding installations, including direct buried. With fiber counts up to 144core.

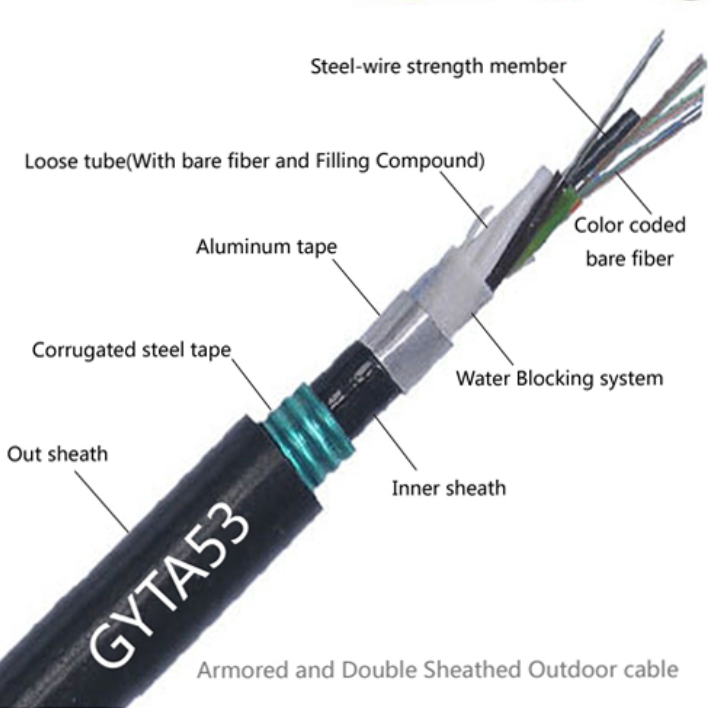

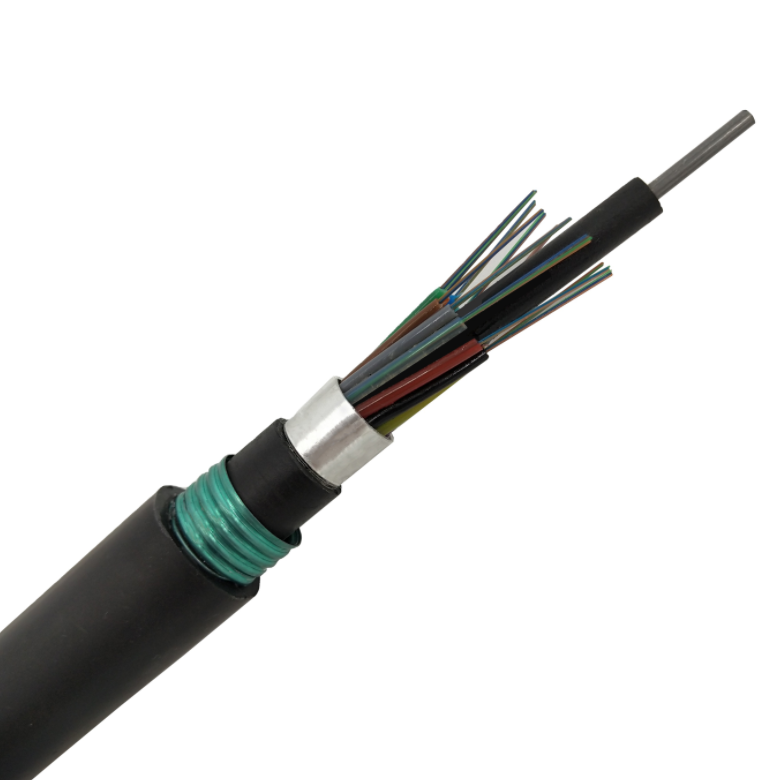

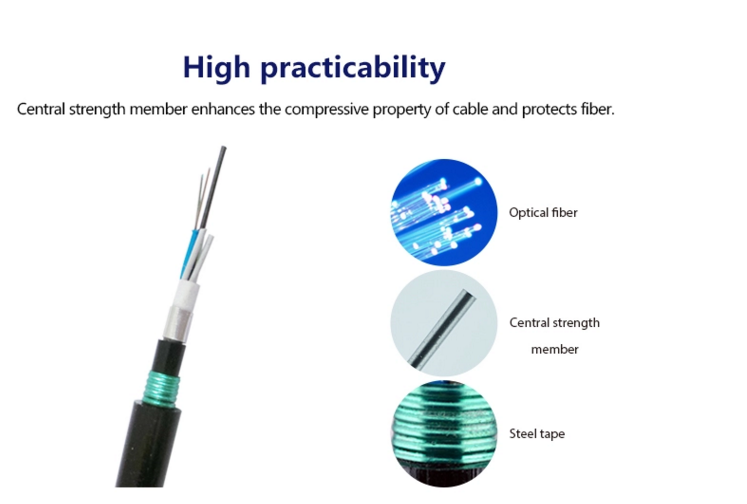

    Fiber optic cable GYTA53, 2~288 fibers, central strength member (steel), jelly filled, fiber contained loose tube and PP filler (if necessary) stranded, water blocking jelly, copolymer coated aluminum tape, PE inner sheath, longitudinally covered by copolymer coated steel tape, PE outer sheath. G652D SM fiber.Detailed specification on your request.
    Product Feature
    1.Loose tube gel-filled construction for superiorfiber protection.

    2.Double jacket double armored

    3.(GYTA53) for rodent protection and direct burial.

    4.UV and moisture-resistant design
    Technical Parameters:
    Item
    Properties and Requirements
    Fiber Count
    2-288
    Min Bending Radius
    Dynamic
    25✖diameter of cable
    Static
    12.5✖diameter of cable
    Temperature Range
    40°C~+60°C
    Nominal Weight(kg/km)
    Depends on Different Specifications
    Laying method
    Direct Buried


    Data Sheet
    Fiber count
    Loose tube diameter
    (mm)
    Nominal Thickness of outer jacket
    (mm)
    Cable diameter/
    Height
    (mm)
    Cable weight
    (kg/km)
    12core
    1.9±0.1
    1.6
    12.0±0.2
    145
    36core
    1.9±0.1
    1.6
    13.2±0.2
    155
    48core
    1.9±0.1
    1.6
    13.2±0.2
    155

    Packaging Details
    1.Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed;
    2.Inner packed in fumigated wooden drum, and outer covered by polyethelene sheet, then sealed by strong wooden battens.

    Delivery
    For large orders: by sea (LCL or FCL)

    For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)
    Facory Picture
    We are fiber cable manufacturer.We have a factory.
    We have rich experience in foreign trade.
    Give us a chance to serve you, saving you time and money.
    Contact me: +8618122383351
