    Double Jacket Self Supporting 72 Core ADSS Fiber Optic Cable

    Ask Lasest Price
    Brand Name : Jiqian
    Model Number : ADSS
    Certification : ISO9001/CE
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 60000KM/month
    Delivery Time : 3-5 working days ,it depends on your order
    • Product Details
    • Company Profile

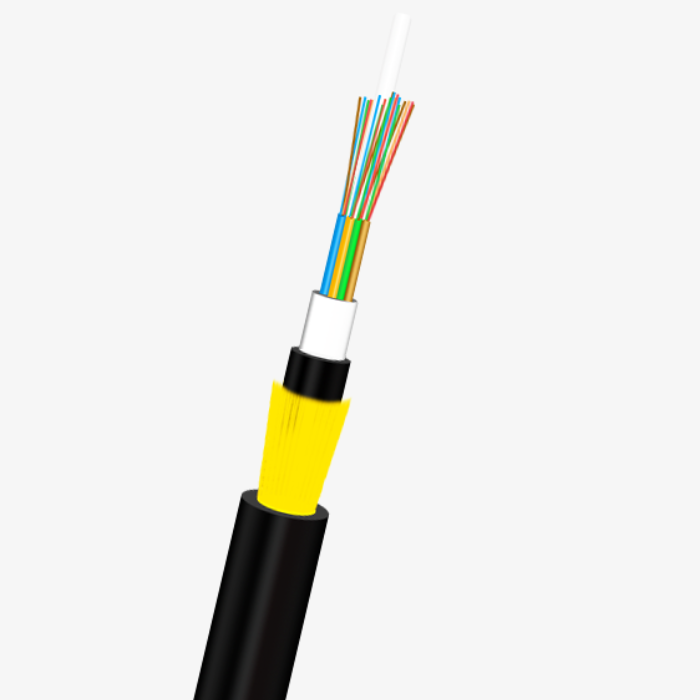

    Double Jacket Self Supporting 72 Core ADSS Fiber Optic Cable

    Supply ADSS Double Jacket Self-supporting 24 48 72 Core Fiber Optic Cable Price Per Meter 100m Span

    Description:

    Loose tube design, non-metallic central strength member, SZ stranded core filled with gel, aramid yam assistant strength member, outer PE sheath (Anti-tracking sheath used for voltages above 110kV)

    Features:

    • ◇low transmission attenuation and dispersion.
      ◇Reasonable design, precise control of excess length of fibers in the loose tube
      and optimum cabling process provides the cable excellent mechanical and
      environmental properties.
      ◇ The SZ-stranded, loose tube design isolated fibers from installation and
      environmental rigors.
      ◇The water blocking gel filled core design provides the cable excellent water-proof
      performance and moisture-resistance, with smaller size.
      ◇Excellent flexibility.
      ◇Due to the non-metallic structure, the cable is light and easy in laying and has a
      very strong ability of anti-electromagnetic disturbance.
      ◇The cable is very suitable for self-supporting installation mode and has a high
      tensile strength along with a powerful harsh-environment surviving capability.
    Applicable fields:

    Optical Parameters:

    50/125µm62.5/125µmG.652G.655
    Attenuation(+20°C)@850nm≤3.0dB/km≤3.3dB/km
    @1300nm≤1.0dB/km≤ 1.0dB/km
    @1310nm≤0.36dB/km≤0.4dB/km
    @1550nm≤0.22dB/km≤0.23dB/km
    Bandwidth (Class A)@850nm≥ 500MHz.km≥ 200MHz.km
    @1300nm≥ 1000MHz.km≥ 600MHz.km
    Numerical Aperture0.200 ±0.015NA0.275 ±0.015NA
    Cable Cut-off Wavelength λcc≤ 1260nm≤ 1450nm

    Cable structure and parameter

    Fiber
    count
    Max. fiber
    count
    per tube
    Total unit
    count
    (LT + FR)
    Sheath
    thickness
    (nominal*)
    Overall diameter
    (nominal**)
    Weight
    (approx.)
    mmmmkg/km
    24126 (2LT + 4FR)1.811.5101

    * The nominal sheath thickness may vary by ±0.2mm.

    ** The nominal outer diameter and height may vary by ±0.2mm.



    There are twelve fiber color code.They are A grade fiber.



    We are the factory, having quality control.

    We privide you factory price.You can save costs, having good quality.


    Package: Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed


    We go to exhibitions. We have rich foreign trade experience, you can save purchasing time.

    Don't hesitate to contact me. Whatsapp:+86 18122383351


    FQA


    Q1.Are you the real manufacturer?
    We are the real manufacturer with 10 year’s history.


    Q2.What’s the MOQ?
    The MOQ of Fiber Optic cable is 1km.


    Q3.What’s delivery time?
    The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.


    Q4.How to Store the Optical Fiber Cable Properly?

    Store the drum indoor before using, the drum should place sideways not on the end.


    Q5. Can you supply customized products and logo?
    Yes. We supply OEM service.


    Q6.What’s your payment terms?
    We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.
