Manufacturing Outdoor Optical Fiber Figure 8 Cable 12 Cores Fiber
Optic Cable Gytc8s
Structure

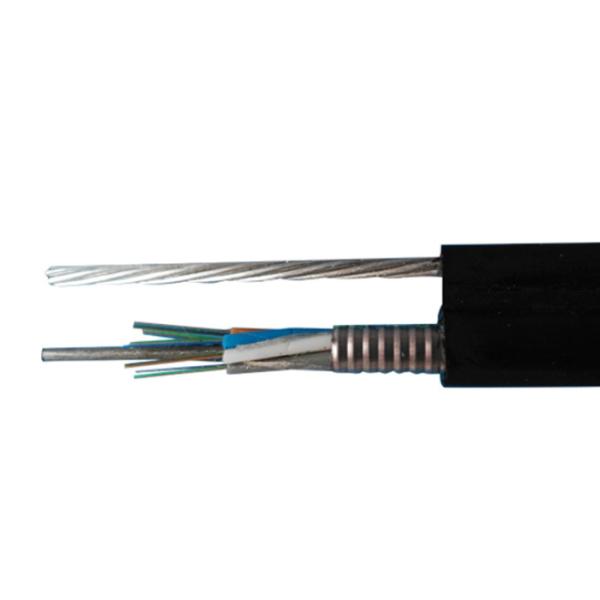

Self-supported figure 8 optical cable with fibers placed in jelly
filled loose buffer tube stranded around dielectric central member.
The cable core is protected with jelly or water blocking material
to prevent water intrusion and migration, protected with a
corrugated steel tape armor.
All whole unit and galvanized steel messenger are covered with
black polyethylene outer jacket.
Features:
- Low attenuation and dispersion, special control of exceed length
and layer stranding technology ensures the good transmission
performance in varying environment.
- Good water blocking material prevents the cable from longitudinal
water penetration.
- Aluminum (steel) tape coated with PE sheath provides excellent
water blocking performance.
- High grade zinc-galvanized stranded steel wires as self-supporting
element enhance the tensile resistance.
Applicable fields:
| | 50/125µm | 62.5/125µm | G.652 | G.655 |
| Attenuation(+20°C) | @850nm | ≤3.0dB/km | ≤3.3dB/km | | |
| @1300nm | ≤1.0dB/km | ≤ 1.0dB/km | | |
| @1310nm | | | ≤0.36dB/km | ≤0.4dB/km |
| @1550nm | | | ≤0.22dB/km | ≤0.23dB/km |
| Bandwidth (Class A) | @850nm | ≥ 500MHz.km | ≥ 200MHz.km | | |
| @1300nm | ≥ 1000MHz.km | ≥ 600MHz.km | | |
| Numerical Aperture | | 0.200 ±0.015NA | 0.275 ±0.015NA | | |
| Cable Cut-off Wavelength λcc | | | | ≤ 1260nm | ≤ 1450nm
|
Cable structure and parameter
| iber count | Structure | Fibers per tube | Loose tube diameter (mm) | CSM diameter/pad diameter (mm) | Nominal Thickness of outer jacket (mm) | Cable diameter/ Height (mm) | Cable weight (kg/km) | | 4 | 1+5 | 4 | 1.8±0.1 | 1.4/1.4 | 1.6 | 9.0*14.5 | 155 | | 6 | 1+5 | 6 | 1.9±0.1 | 1.4/1.4 | 1.6 | 9.0*14.5 | 155 | | 8 | 1+5 | 8 | 1.9±0.1 | 1.4/1.4 | 1.6 | 9.0*14.5 | 155 | | 12 | 1+5 | 6 | 1.9±0.1 | 1.4/1.4 | 1.6 | 9.0*14.5 | 155 | | 24 | 1+5 | 6 | 1.9±0.1 | 1.4/1.4 | 1.6 | 9.0*14.5 | 155 | | 36 | 1+6 | 12 | 1.9±0.1 | 1.6/1.6 | 1.6 | 9.6*15.2 | 168 | | 48 | 1+5 | 12 | 2.2±0.1 | 1.6/1.6 | 1.6 | 9.6*15.2 | 168 | | 72 | 1+6 | 12 | 2.2±0.1 | 2.0/2.0 | 1.6 | 10.8*16.3 | 190 | | 96 | 1+8 | 12 | 2.2±0.1 | 1.6/3.5 | 1.6 | 12*17.5 | 205 | | 144 | 1+12 | 12 | 2.2±0.1 | 2.0/6.4 | 1.8 | 15.8*21.3 | 320 |
|
There are twelve fiber color code.They are A grade fiber.
We are fiber cable manufacturer.We have a factory.
Package: Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's
requirements are also welcomed
We go to exhibitions. We have rich foreign trade experience, you
can save purchasing time.
Don't hesitate to contact me. Whatsapp:+86 18122383351
FQA
Q1.Are you the real manufacturer?
We are the real manufacturer with 10 year’s history.
Q2.What’s the MOQ?
The MOQ of Fiber Optic cable is 1km.
Q3.What’s delivery time?
The general delivery time is 5-7 days after order confirmed. It
depends on the order quantity.
Q4.How to Store the Optical Fiber Cable Properly?
Store the drum indoor before using, the drum should place sideways
not on the end.
Q5. Can you supply customized products and logo?
Yes. We supply OEM service.
Q6.What’s your payment terms?
We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70%
before shipment.
