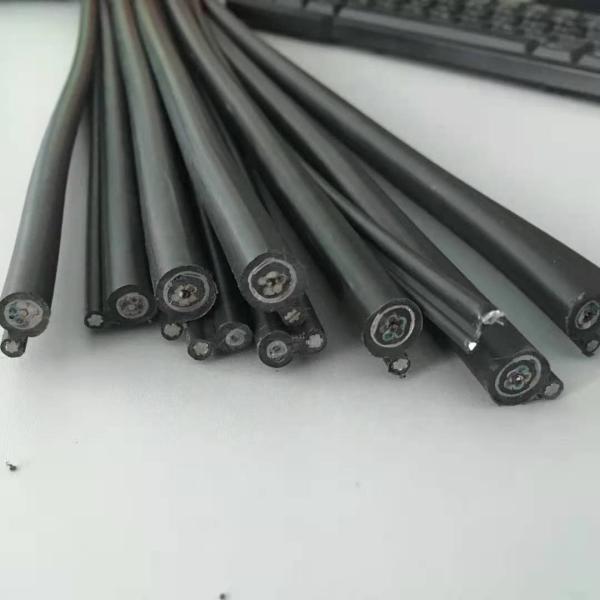

GYTC8S Self-supported Outdoor Aerial Cable 8 Core G652d Figure 8
Fiber Optical Cable
Structural feature:
The fibers, 250µm, are positioned in a loose tube made of a high
modulus plastic.
The tubes are filled with a water-resistant filling compound.
A steel wire locates in the center of core as a metallic strength
member.
Tubes (and fillers) are stranded around the strength member into a
compact and circular cable core.
Acorrugated steel is applied around the cable core, which is filled
with the filling compound to protect it from water ingress.
This part of cable accompanied with the strand wires, as the
supporting part are completed with double polyethylene(PE)sheath to
be figure 8 structure.
Method of installation are easily.
Product features:
- Low attenuation and dispersion, special control of exceed length
and layer stranding technology ensures the good transmission
performance in varying environment.
- Good water blocking material prevents the cable from longitudinal
water penetration.
- Aluminum (steel) tape coated with PE sheath provides excellent
water blocking performance.
- High grade zinc-galvanized stranded steel wires as self-supporting
element enhance the tensile resistance.
Optical Characterstics
Technical Parameters:
Package & Delivery
Wooden drum:1KM 2KM 3KM 4KM for one roll
Shipping: By sea/by air or express delivery, it depends on the
order quantity
Factory Show
We are a factory. Welcom to visit our factory.
Certificate
FAQ:
1. Are you a manufacturer?
Yes. We are a company integrating industry and trade. Our factory
is located in Guangzhou, Guangdong Province, China.
2.How can you guarantee quality?
We conduct three inspections from raw materials to finished
products, and then to the factory. 25-year guarantee period.
3.What product do you sell?
There are fiber optic cable, FTTH drop cable, communication cables,
outdoor/indoor fiber cable.
4 .What service can you provide?
One-to-one service, fast response.
