48 Cores Armoured GYTS Underground Fiber Cable With Out PE Jacker

Ask Lasest Price
Brand Name :	Jiqian
Model Number :	GYTS
Certification :	CE/ISO9001
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	60000KM/month
Delivery Time :	3-5 days, it depends on your quantity

Add to Cart

Product Details
Company Profile

48 Cores Armoured GYTS Underground Fiber Cable With Out PE Jacker

2 4 6 8 12 24 32 48 Cores Armoured Optical Fiber Cable GYTS Underground Fiber Cable

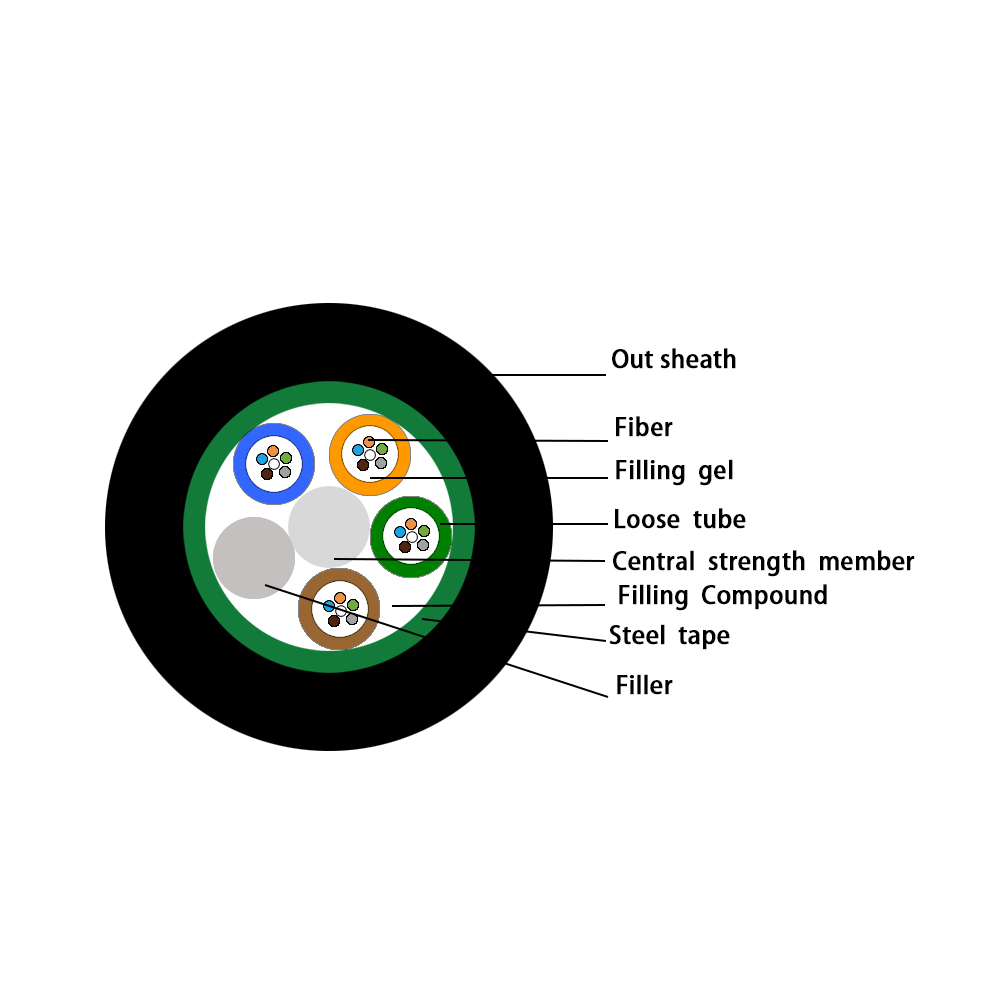

Structure feature

1.Loose tubes(or some filers) stranded around the metal central
strength member2.Bound by corrugated longitudinal steel tape with outer PE jacket
3.The tube is made of good temperature property material. A number
of single or multi-mode fibers double-coated are contained in the
loose tube.
Product feature
1.Choice of Fibre Type

2.Colour code of Fibre

3.High water resistance

4.High crush resistance

5.Choice Sheath Material

6.Low attenuation and dispersion

7.Good flexibility and bending performance
Technical Parameters:
Cable Type (increased by 2fibers)
Fiber Count
Tubes+Fillers
Cable Diameter mm
Cable Weight kg/km
Tensile Strength Long/Short Term N
Crush Resistance Long/Short Term N/100mm
Bending Radius Static/Dynamic mm
GYTS 2 ~ 30
2~30
5
9.5
80
600/1500
300/1000
10D/20D
GYTS 32 ~36
32~36
6
9.7
97
600/1500
300/1000
10D/20D
GYTS 38 ~60
38~60
6
10.5
109
600/1500
300/1000
10D/20D
GYTS 62 ~72
62~72
6
11.5
126
600/1500
300/1000
10D/20D
GYTS 74 ~96
74~96
8
13.2
153
600/1500
300/1000
10D/20D
GYTS98 ~120
98~120
10
14.6
182
600/2000
300/1000
10D/20D
GYTS122 ~ 144
122~144
12
16.5
221
600/2500
300/1000
10D/20D
GYTS146 ~ 216
146~216
18
16.5
221
600/2500
300/1000
10D/20D


Fiber Tube Color:
Packaging Details
1.Wooden reel, 1000m/reel,2000m/reel,3000m/reel,customer's
requirements are also welcomed;
2.Inner packed in fumigated wooden drum, and outer covered by
polyethelene sheet,then sealed by strong wooden battens.
Delivery
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL
,UPS,TNT.....)
