Optical Fiber Outdoor Aerial Cable ADSS Double layer 300m Span
The self supporting aerial cable is designed for aerial self
supporting application at short, medium and long span distances.
ADSS cable offers a rapid and economical means for deployment by
cable television operators, telephone companies and power
utilities. It is adopted for high voltage, middle, small span
conditions in Power Transmission System or mazy terrain such as
river spanning, mountains.
The ADSS cable is a self-supported cable that is used for
long-distance communications and LAN. The ADSS cable is dielectric
thanks to the aramid wire that is between two polythene sheaths.
The self supporting aerial cable has an anti-thunderstorm property
as its structure doesn’t contain any piece of metal. It is
perfectly adapted to bad weather conditions.
Features:
Can be installed without shutting off the power
Light weight and small diameter reducing the load caused by ice and
wind and the load on towers and backprops
Large span lengths
Good performance of tensile strength and temperature
The design life span is 30 years
Optical Characteristics:
| | G.652 | G.655 | 50/125μm | 62.5/125μm |
| Attenuation | @850nm | | | ≤3.0 dB/km | ≤3.0 dB/km |
| (+20℃) | @1300nm | | | ≤1.0 dB/km | ≤1.0 dB/km |
| | @1310nm | ≤0.36 dB/km | ≤0.40 dB/km | | |
| | @1550nm | ≤0.22 dB/km | ≤0.23dB/km | | |
| Bandwidth (Class A) | @850nm | | | ≥500 MHz·km | ≥200 MHz·km |
| @1300nm | | | ≥1000 MHz·km | ≥600 MHz·km |
| Numerical Aperture | | | 0.200±0.015NA | 0.275±0.015NA |
| Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm | | |
| Outer diameter | weight tension kN | Ref.daily max.working tension kN | Max allowable working tension kN | Break strength kN | Strength member CSA mm2 | Modulus of elasticity kN/ mm2 | Heat expansion coefficient ×10-6 /k | Suitable span (m) (NESC Standard,m) |
| | PE sheath | AT sheath | A | B | C | D |
| 12.5 | 125 | 136 | 1.5 | 4 | 10 | 4.6 | 7.6 | 1.8 | 160 | 100 | 140 | 100 |
| 13 | 132 | 142 | 2.25 | 6 | 15 | 7.6 | 8.3 | 1.5 | 230 | 150 | 200 | 150 |
| 13.3 | 137 | 148 | 3 | 8 | 20 | 10.35 | 9.45 | 1.3 | 300 | 200 | 290 | 200 |
| 13.6 | 145 | 156 | 3.6 | 10 | 24 | 13.8 | 10.8 | 1.2 | 370 | 250 | 350 | 250 |
| 13.8 | 147 | 159 | 4.5 | 12 | 30 | 14.3 | 11.8 | 1 | 420 | 280 | 400 | 280 |
| 14.5 | 164 | 177 | 5.4 | 15 | 36 | 18.4 | 13.6 | 0.9 | 480 | 320 | 460 | 320 |
| 14.9 | 171 | 185 | 6.75 | 18 | 45 | 22 | 16.4 | 0.6 | 570 | 380 | 550 | 380 |
| 15.1 | 179 | 193 | 7.95 | 22 | 53 | 26.4 | 18 | 0.3 | 670 | 460 | 650 | 460 |
| 15.5 | 190 | 204 | 9 | 26 | 60 | 32.2 | 19.1 | 0.1 | 750 | 530 | 750 | 510 |
| 15.6 | 194 | 208 | 10.5 | 28 | 70 | 33 | 19.6 | 0.1 | 800 | 560 | 800 | 560 |
| 16.3 | 211 | 226 | 12.75 | 34 | 85 | 40 | 20.1 | 0.1 | 880 | 650 | 880 | 650 |
| 16.8 | 226 | 242 | 15.45 | 41 | 103 | 48 | 24 | -0.4 | 1000 | 750 | 1000 | 760 |
| 17.2 | 236 | 253 | 16.2 | 45 | 108 | 51 | 25.1 | -0.5 | 1100 | 800 | 1100 | 830 |
| 17.9 | 249 | 266 | 18 | 50 | 120 | 58.8 | 26.1 | | 1180 | 880 | 1180 | 900 |
Product features:
1.Can be installed without shutting off the power.
2.Light weight and small diameter reducing the load caused by ice
and wind and the load on towers and back props.
3.Large span lengths and the largest span is over 200m.
4.Good performance of tensile strength and temperature.
5.The design life span is over 25 years.
ADSS, there are two kinds of ADSS. One is single jacket, and the
other one is double jacket.
Application:
Outdoor self-support aerial and overhead
Packaging Details

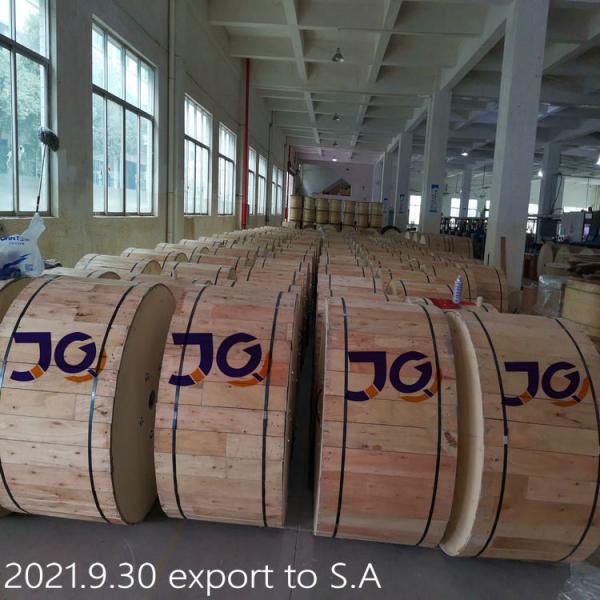

1.Wooden reel, customer's requirements are also welcomed;
