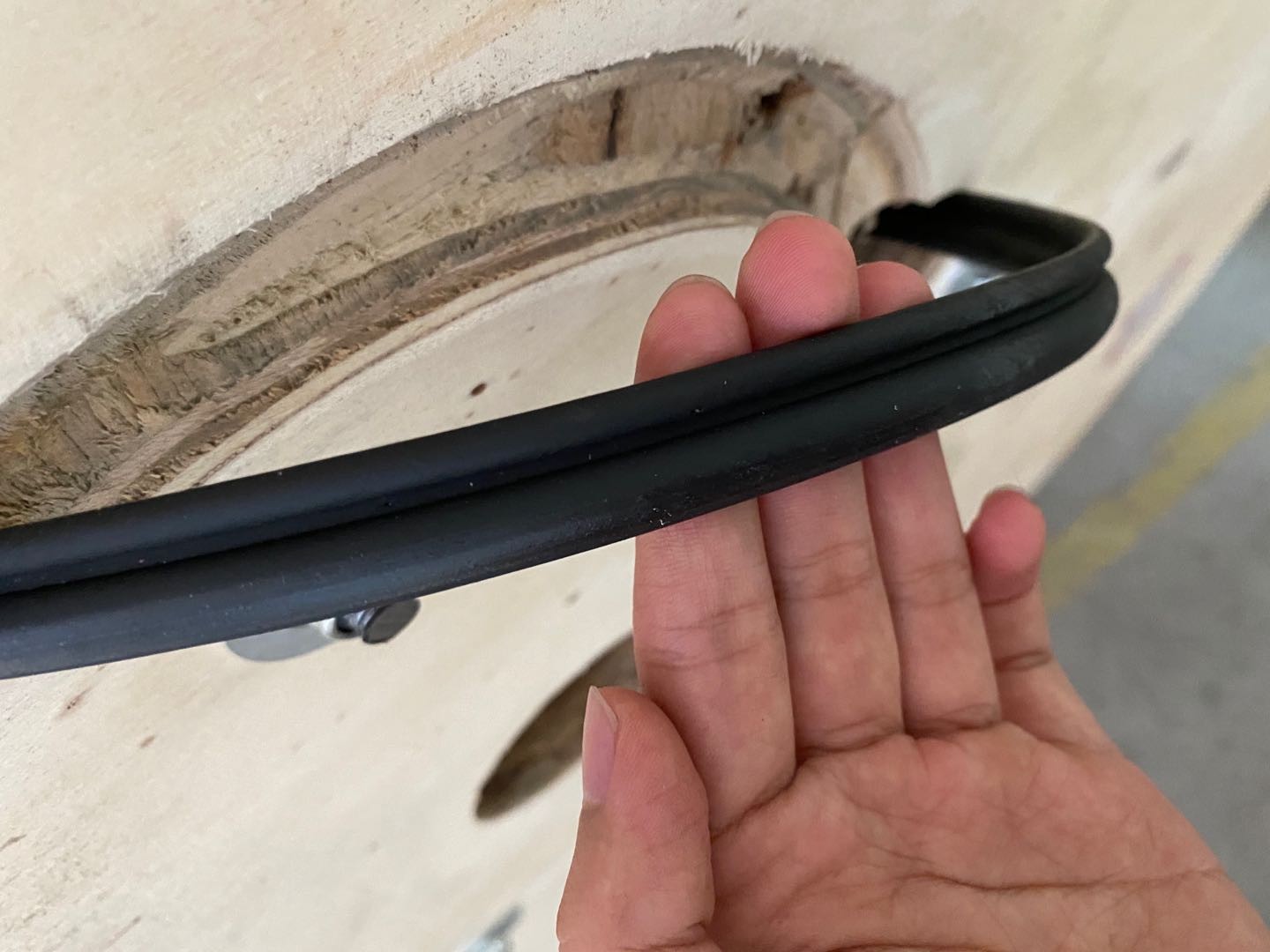

GYTC8S Self supporting Aerial Figure 8 Fiber Optic Cable
The fibers, 250µm, are positioned in a loose tube made of a high
modulus plastic. The tubes are filled with a water-resistant
filling compound. A steel wire locates or FRP in the center of core
as a metallic strength member. Tubes (and fillers) are stranded
around the strength member into a compact and circular cable core.
A corrugated steel is applied around the cable core, which is
filled with the filling compound to protect it from water ingress.
This part of cable accompanied with the strand wires, as the
supporting part are completed with a polyethylene(PE)sheath to be
figure 8 structure.
Features
---Steel wire used as the central strength member
---Loose tube filling compound
---100% cable core filling
---PSP enhancing moisture-proof
Optical Characteristics
| Items | Unit | Specification |
| G652D |
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 |
| Cladding Diameter | um | 124.8±0.7 |
| Cladding Non-Circularity | % | ≤0.7 |
| Core-Cladding Concentricity Error | um | ≤0.5 |
| Coating Diameter | um | 245±5 |
| Coating Non-Circularity | % | ≤6.0 |
| Cladding-Coating Concentricity Error | um | ≤12 |
| Cable Cutoff Wavelength | nm | acc≤1260 |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 |
Technical Parameters
| Fiber count | Structure | Fibers per tube | Loose tube diameter (mm) | CSM diameter/pad diameter (mm) | Nominal Thickness of outer jacket (mm) | Cable diameter/ Height (mm) | Cable weight (kg/km) |
| 4 | 1+5 | 4 | 1.8±0.1 | 1.4/1.4 | 1.6 | 9.0*14.5 | 155 |
| 6 | 1+5 | 6 | 1.9±0.1 | 1.4/1.4 | 1.6 | 9.0*14.5 | 155 |
| 8 | 1+5 | 8 | 1.9±0.1 | 1.4/1.4 | 1.6 | 9.0*14.5 | 155 |
| 12 | 1+5 | 6 | 1.9±0.1 | 1.4/1.4 | 1.6 | 9.0*14.5 | 155 |
| 24 | 1+5 | 6 | 1.9±0.1 | 1.4/1.4 | 1.6 | 9.0*14.5 | 155 |
| 36 | 1+6 | 12 | 1.9±0.1 | 1.6/1.6 | 1.6 | 9.6*15.2 | 168 |
| 48 | 1+5 | 12 | 2.2±0.1 | 1.6/1.6 | 1.6 | 9.6*15.2 | 168 |
| 72 | 1+6 | 12 | 2.2±0.1 | 2.0/2.0 | 1.6 | 10.8*16.3 | 190 |
| 96 | 1+8 | 12 | 2.2±0.1 | 1.6/3.5 | 1.6 | 12*17.5 | 205 |
| 144 | 1+12 | 12 | 2.2±0.1 | 2.0/6.4 | 1.8 | 15.8*21.3 | 320 |
Packing

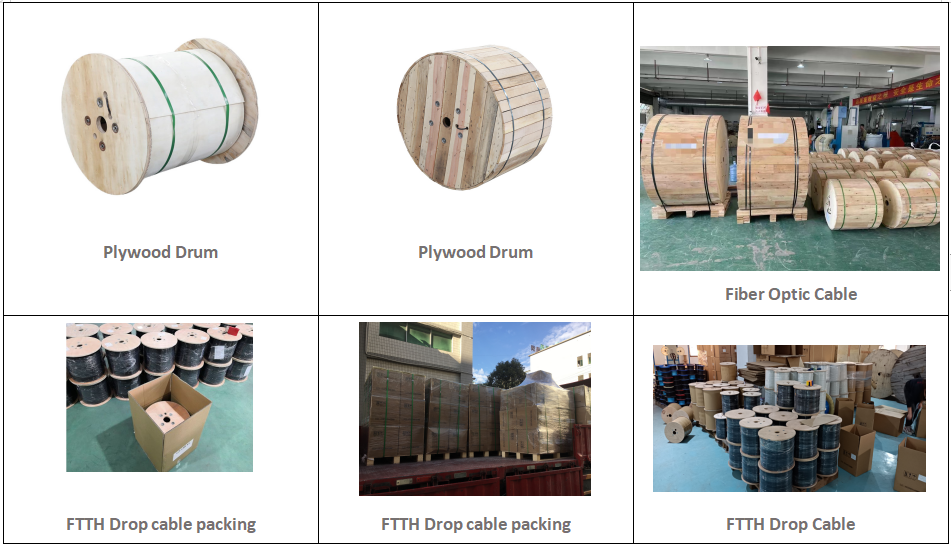

• Standard Cable Wooden Drum
• Standard reel length: 2/3km/reel, other length is also available
FAQ
1.Are you the real manufacturer?
Yes. We are the real manufacturer with 10 years’ history.
2.Can you accept small order?
Yes, small order is available .We support new project of our
customers as we know business is always from small order.
3.What is your warranty period?
25 years for fiber optic cable
4.What is your delivery time?
Usually within 3-5 working days
5.What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 6,000,000
KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
6.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
