24 Core GYXTW Multimode Fiber Cable 9mm Out Diameter

Ask Lasest Price
Brand Name :	JQ/OEM
Model Number :	GYXTW-12B1
Certification :	ISO9001 ROHS CE FCC SDOC
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	10000 Per day
Delivery Time :	3-5dyas

Add to Cart

Product Details
Company Profile

24 Core GYXTW Multimode Fiber Cable 9mm Out Diameter

Single mode Multi mode Fibra Optica Cable Types Fiber Optic Cable GYXTW

Items		Unit	Specification
Items		Unit	Single mode G652D
Mode Field Diameter	1310nm	um	9.2±0.4
Mode Field Diameter	1550nm	um	10.4±0.5
Cladding Diameter		um	124.8±0.7
Cladding Non-Circularity		%	≤0.7
Core-Cladding Concentricity Error		um	≤0.5
Coating Diameter		um	245±5
Coating Non-Circularity		%	≤6.0
Cladding-Coating Concentricity Error		um	≤12
Cable Cutoff Wavelength		nm	acc≤1260
Attenuation(max.)	1310nm	dB/km	≤0.36
Attenuation(max.)	1550nm	dBkm	≤0.22

Features:

1.Small outer diameter, light weight and convenient construction

2.Stable fiber excess length control Excellent environmental performance

3.After the cable is formed, the additional attenuation of the fiber is almost zero,the dispersion value does not change

Application

Suitable for Duct / Aerial

Storage / Operating Temperature: -40℃~+70℃

Cable Parameters

Items		Specifications
Fiber Count		2~24
Colored Coating Fiber	Dimension	250μm+15μm
Colored Coating Fiber	Color	Blue,Orange,Green,Brown,Gray,White
Loose Tube	Dimension	2.0mm±0.05mm
	Material	PBT
	Color	Natural
Strength Member	Diameter	1.0mm
Strength Member	Material	Steel
Outer Jacket	Dimension	8.0mm±0.1mm
	Material	PE
	Color	Black

Technical Parameters

Fiber
Count

Cable
Diameter(mm)

Cable Weight
kg/km)

Tensile Strength
Long/Short
Term (N)

Crush Resistance
Long/Short
Term (N/100mm)

Bending

Radius Static/Dynamic
mm)

2~12

1000/3000

10D/20D

14~24

1000/3000

10D/20D Features

Different diameter

24 Core GYXTW Multimode Fiber Cable 9mm Out Diameter

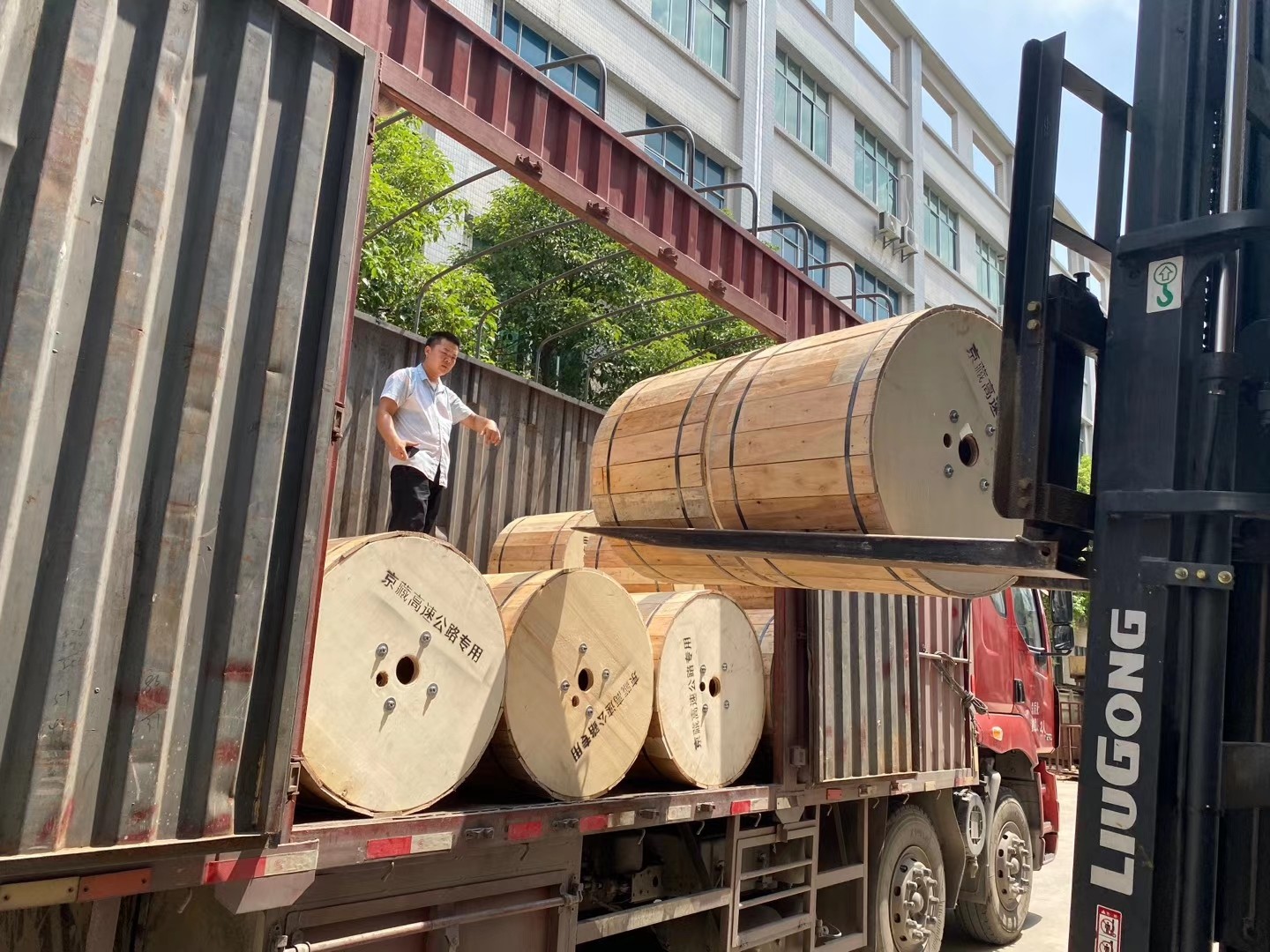

Packing

1/2/3/4/5 km in one wooden drum,deliver days:3-5work days

Shipping

By sea/by air or express delivery,it depends on the order quantity

24 Core GYXTW Multimode Fiber Cable 9mm Out Diameter

OEM Service support to printing your company logo,year,meter metion.

Product Tags:

GYXTW multimode fiber patch cable

9mm multimode fiber patch cable

24 Core multimode fiber optic cable

24 Core GYXTW Multimode Fiber Cable 9mm Out Diameter
