ASU Fibre Optic Manufacturer G652d Single Mode 12 Core Cable De
Fibra Ptica Span Length 80m
Fiber Optic Cable (GYFFY) TWO FRP Aerial Fiber Optic Cable (ASU)
·Product description

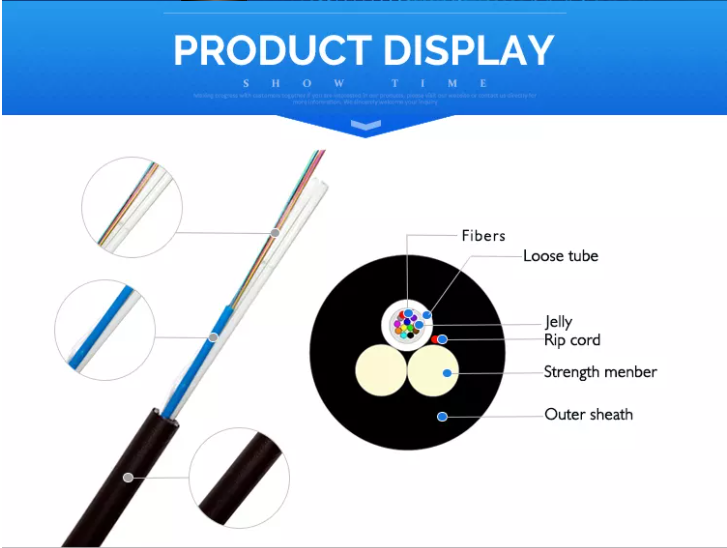

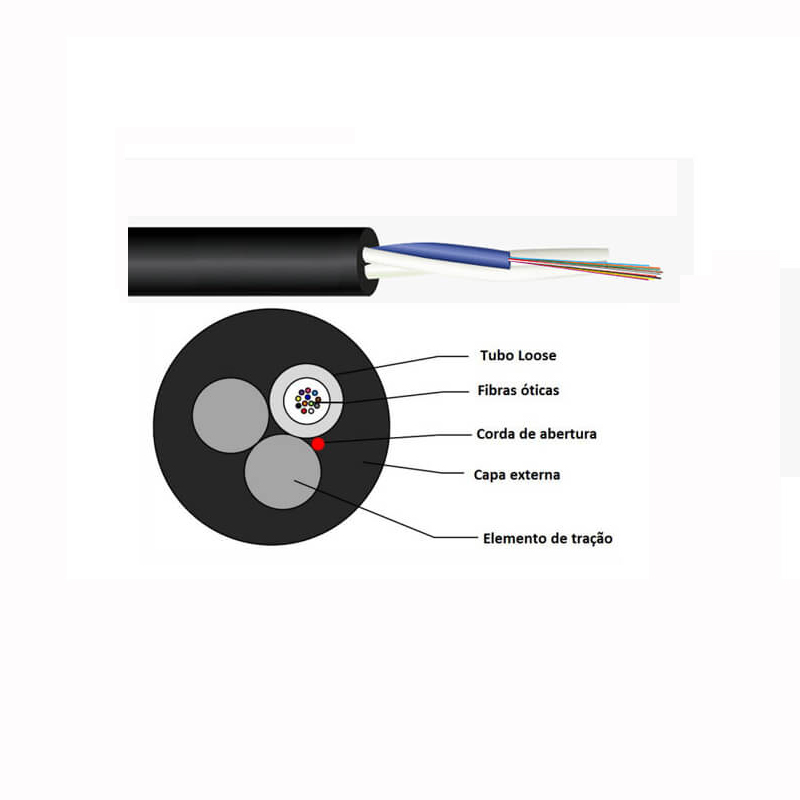

The cable structure is put the 250μm colored fiber in the PBT loose
tube, and two FRP as strengthen member, Cable surface is extruded
with a PE outer sheath.
·Product Features
·Small Size and Ligth Weight
·Two FRP as strength member to provide good tensile performance
·Gel Filled or gel free , good waterproof performance
·Low price ,high fiber capacity
·applicable for short span aerial and duct installation
Technical parameters:
| No. of cable | 1-12 |
| Fiber Model | G.652D |
| Strength Member | Material | FRP |
| Diameter(±0.05)mm | 1.8 |
Loose Tube | Material | PBT |
| Diameter(±0.06)mm | 1.8 |
| Thickness(±0.03)mm | 0.35 |
| The Max.Core NO./Tube | 12 |
| Outer Sheath | Material | PE |
| Cable Diameter(±0.2)mm | 6.7 |
| Cable Weight(±5)kg/km | 38 |
Min. bending radius | Without Tension | 10.0×Cable-φ |
| Under Maximum Tension | 20.0×Cable-φ |
Temperature range (℃) | Installation | -20~+60 |
| Transport&Storage | -40~+70 |
| Operation | -40~+7 |
There are twelve fiber color code.They are A grade fiber.
We are fiber cable manufacturer.We have a factory.
Package: Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's
requirements are also welcomed
We go to exhibitions. We have rich foreign trade experience, you
can save purchasing time.
Don't hesitate to contact me. Whatsapp:+86 18122383351
FQA
Q1.Are you the real manufacturer?
We are the real manufacturer with 10 year’s history.
Q2.What’s the MOQ?
The MOQ of Fiber Optic cable is 1km.
Q3.What’s delivery time?
The general delivery time is 5-7 days after order confirmed. It
depends on the order quantity.
Q4.How to Store the Optical Fiber Cable Properly?
Store the drum indoor before using, the drum should place sideways
not on the end.
Q5. Can you supply customized products and logo?
Yes. We supply OEM service.
Q6.What’s your payment terms?
We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70%
before shipment.
