2 4 6 8 12 24 Cores Steel Tape Double Armored Gyxtw53 Outdoor Fiber
Optic Cable For Duct
·Product description

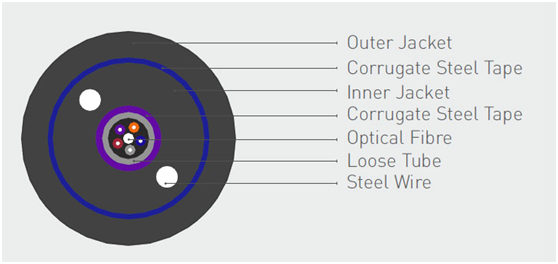

1.250μm's fibers are positioned in the central of a loose tube
which is made of high modulus plastics and filled with
water-resistant filling compound.
2.The tube is wrapped with a layer of the plastic coated steel
strip(PSP).
3.Except the tube filling compound, PSP, water-blocking material,
it also has two steel wires in two sides to enhance the crush
resistance and flexibility.
4.At last, the cable core is covered with a thin PE inner sheath.
5.After the PSP is longitudinally applied over the inner sheath,
the cable is completed with a PE outer sheath.
·Product Features
1. Good mechanical and temperature performance
2.Metallic armor to protect cable from rodent attack and mechanical
damage.
3.Embedded steel wire provide desirable tensile strength and crush
resistance.
4.Compact, easy to install.
5.UV and waterproof design.
Mechanical & Environmental Characteristics
| Characteristics | Short Term | Long Term |
| Max. Tensile Load | 3000 N | 1000 N |
| Max. Crush Load | 1500 N/100mm | 500 N/100 mm |
| Operating Temp. | -20 °C to +60°C |
| Storage Temp. | -40 °C to +85°C |
| Sheath Material | Standard: PE; Optional: LSZH, PVC or other |
There are twelve fiber color code.They are A grade fiber.
We are fiber cable manufacturer.We have a factory.
Package: Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's
requirements are also welcomed
We go to exhibitions. We have rich foreign trade experience, you
can save purchasing time.
Don't hesitate to contact me. Whatsapp:+86 18122383351
FQA
Q1.Are you the real manufacturer?
We are the real manufacturer with 10 year’s history.
Q2.What’s the MOQ?
The MOQ of Fiber Optic cable is 1km.
Q3.What’s delivery time?
The general delivery time is 5-7 days after order confirmed. It
depends on the order quantity.
Q4.How to Store the Optical Fiber Cable Properly?
Store the drum indoor before using, the drum should place sideways
not on the end.
Q5. Can you supply customized products and logo?
Yes. We supply OEM service.
Q6.What’s your payment terms?
We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70%
before shipment.
