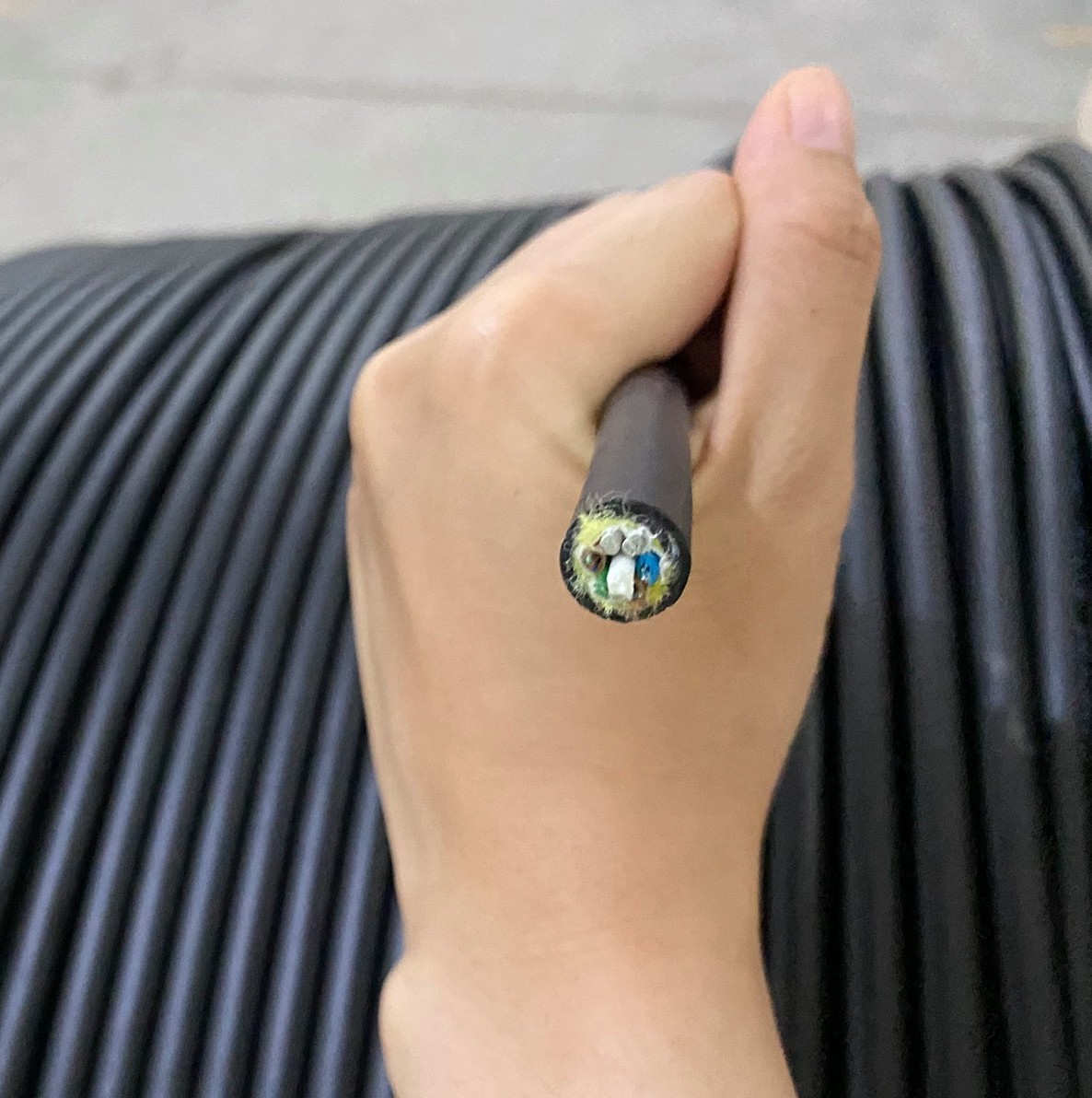

The fibers are positioned into a loose tube made of high modulus plastics. Filled with a water-blocking filling compound, the tube is stranded around FRP as a non-metallic central strength member into compact and circular cable core. Then covered with thin PE (polyethylene) inner sheath and a layer of aramid yarn, the cable is completed with a PE outer sheath. ADSS cables are ideal for outside plant aerial applications, the lightweight cable and all-dielectric construction allow cost-effective and safe installation in high voltage overhead power lines.

Advantage:

ADSS (All Dielectric Self-Supporting) Cable is suspended from poles or towers in telecommunication and power outside plant application without shutting off the power.

Feature :

1.The lifespan is over 30 years
2.Large span with the largest span of over 1000m
3.Reliable performance of moistureproof and waterproof
4.Central strength member FRP gives high tensile strength
5.PE or AT sheath ensures safety of cable in high voltage environment
6.All-dielectric structure and light weight provide easy installation and good electromagnetic resistance.

Application:

1)Railways, power and telecommunication pole routes
2)Can be used in areas suffered from frequent lightning
3)Ideal for transmission lines with high electrical field strength
4)Suitable for installation on poles and on the power distribution network
5)Aerial self-supporting applications at short, medium and long span distances.
