GYTA Armored Loose Tube Single Jacket/Single Armor fiber optic
cables are designed to provide high fiber counts with the
flexibility and versatility required for today's most demanding
installations, including duct and underground conduit.
Fiber Parameters | Unit | Specification |
G.652D |
Mode Field Diameter | 1310nm | μm | 9.2±0.4 |
1550nm | μm | 10.4±0.5 |
Cladding Diameter | μm | 124.8±0.7 |
Cladding Non-Circularity | % | ≤0.7 |
Core-Cladding Concentricity Error | μm | ≤0.5 |
Coating Diameter | μm | 245±5 |
Coating Non-Circularity | % | ≤6.0 |
Cladding-Coating Concentricity Error | μm | ≤12.0 |
Cable Cutoff Wavelength | nm | λcc≤1260 |
Attenuation(max.) | 1310nm | dB/km | ≤0.4 |
1550nm | dB/km | ≤0.3 |

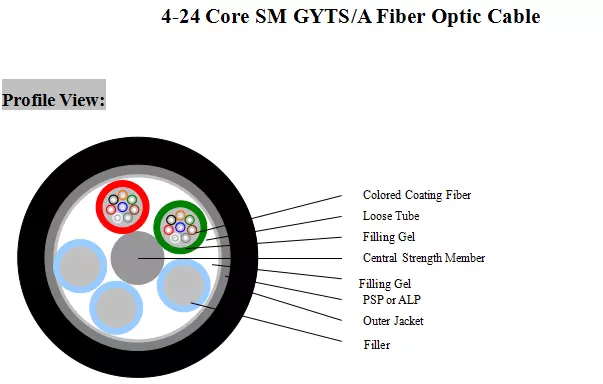

Cable Parameters: | Specifications |
Fiber Count | 4-24 |
Colored Coating Fiber | Dimension | 250µm±15µm |
Color | Blue,Orange,Green,Brown,Gray,
White,Red,Black,Yellow,Purple,Pink,Aqua |
Loose Tube | Dimension | 2.1mm±0.05mm |
Material | PBT |
Color | Red,Blue
Natural,Natural,Natural |
Central Strength Member | Diameter | 1.5mm |
Material | steel |
Outer Jacket | Dimension | 9.0mm±0.2mm |
Material | PE |
Color | Black |
Mechanical and Environmental Characteristics: | Unit | Specifications |
Tension(Long Term) | N | 600 |
Tension(Short Term) | N | 1500 |
Crush(Long Term) | N/10cm | 300 |
Crush(Short Term) | N/10cm | 1000 |
Min. Bend Radius(Dynamic) | mm | 20D |
Min. Bend Radius(Static) | mm | 10D |
Installation Temperature | ℃ | -20~+60 |
Operating Temperature | ℃ | -40~+70 |
Storage Temperature | ℃ | -40~+70 |
