GYFTC8Y53 Figure 8 Fiber Optic Cable PE Sheath self supporting

Ask Lasest Price
Brand Name :	JQ/OEM
Model Number :	GYFTC8S53/GYFTC8Y53
Certification :	ISO9001 ROHS CE-EMC FCC SDOC
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	30KM Per days
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

GYFTC8Y53 Figure 8 Fiber Optic Cable PE Sheath self supporting

Self-Supporting Single Armored Double Sheath 24 Core Aerial Fig 8 Fiber Optic Cable

Description

Aerial Fig8 Armored Loose Tube Double Jacket/Single Armor cable is designed especially for aerial installations while incorporating a second jacket and Single metallic armor when extra mechanical protection is desired. With fiber counts up to 288 and S-Z strand designs.

Features
Loose tube gel-filled construction for superior fiber protection.
Double jacket and double armor to protect cable from rodent attack and mechanical damage.
UV and moisture-resistant design. Self-supporting Figure 8 design.

Optical Characteristics

Items		Unit	Specification
Items		Unit	G652D
Mode Field Diameter	1310nm	um	9.2±0.4
Mode Field Diameter	1550nm	um	10.4±0.5
Cladding Diameter		um	124.8±0.7
Cladding Non-Circularity		%	≤0.7
Core-Cladding Concentricity Error		um	≤0.5
Coating Diameter		um	245±5
Coating Non-Circularity		%	≤6.0
Cladding-Coating Concentricity Error		um	≤12
Cable Cutoff Wavelength		nm	acc≤1260
Attenuation(max.)	1310nm	dB/km	≤0.36
Attenuation(max.)	1550nm	dBkm	≤0.22

Technical Parameters

Type	SADJ
Fiber count	4-144cores
PBT Loose tube diameter	1.9mm
Central strength member diameter FRP	1.5mm
Outer sheath thickness/inner sheath thickness	1.7mm/1.0mm
Cable OD mm	11.5mmx18mm
Messenger	7*1.0mm steel wire
Inner Jacket material	MDPE
Out jacket	HDPE
Cable weight kg/km	220KG/KM
Operation temperature range	-40 ℃ to + 70 ℃
Installation temperature range	-40 ℃ to + 70 ℃
Transport and storage temperature range	-40 ℃ to + 70 ℃
Allowable Tensile Load(N)	Short term:1000
Allowable Tensile Load(N)	Long term:3000
Crush resistance	Short term :3000 N/100mm
Crush resistance	Long term:1000N/100mm
Minimal installation bending radius	20 x OD
Minimal operation bending radius	10 x OD

Samples Picture

GYFTC8Y53 Figure 8 Fiber Optic Cable PE Sheath self supporting

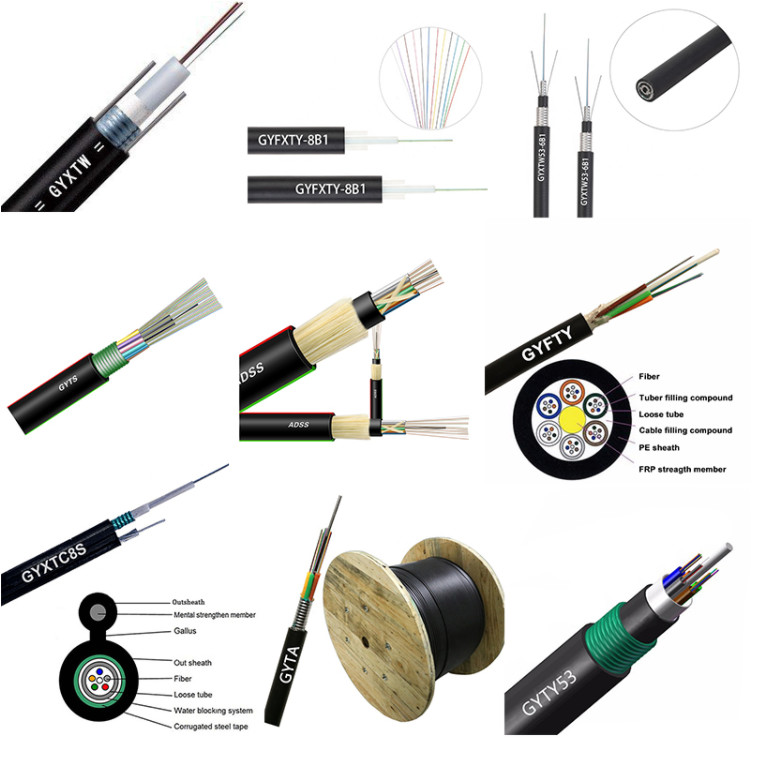

MORE PRODUCT

GYFTC8Y53 Figure 8 Fiber Optic Cable PE Sheath self supporting

Our Service

1.We are the one of biggest manufacture of fiber optic cable in China and has more than 10 years manufacturing and selling experience.

2.We accept OEM. The cable size and material are customized.Ur own logo and own design are welcome. We will produce according to your requirment and description;

3.Please send us inquiry for more products info and we will give you feedback in 12 hours.
