Brand Name : | Jiqian |
Model Number : | ADSS |
Certification : | CE/ISO9001 |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 60000KM/month |
Delivery Time : | 3-5 days, it depends on your quantity |

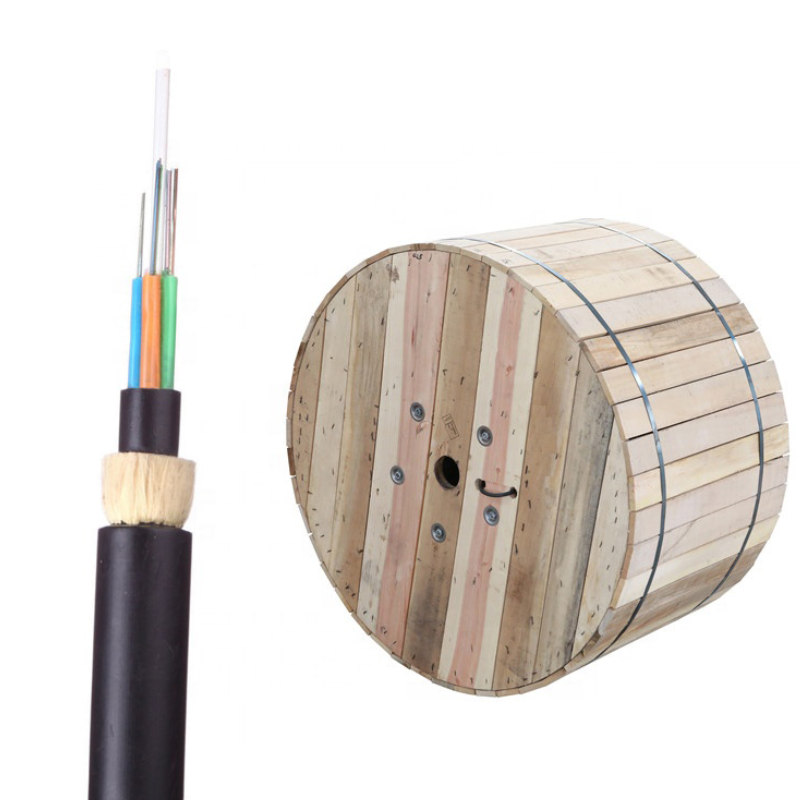

Outdoor Double Sheath 8 12 24 48 96 Core 300m Span ADSS Fiber Optic Cable
Double Layer Aerial ADSS Cable is used for communication cable of overhead high-voltage electricity transmission system,
it also can be used as communication cable at the areas where lighting is frequent or distance is big.
Fiber parameter
Item | Unit | Specification | |
Fiber Type | G.652D | ||
Mode field diameter | 1310nm | mm | 9.2±0.4 |
1550nm | mm | 10.4±0.8 | |
Cladding diameter | mm | 125.0±1 | |
Cladding non-circularity | % | £1.0 | |
Core/cladding concentricity error | mm | £0.5 | |
Coating diameter | mm | 245±5 | |
Coating non-Circularity | % | £6.0 | |
Coating/cladding concentricity error | mm | £12.0 | |
Cable cut-off wavelength | nm | £1260 | |
Attenuation Coefficient | 1310nm | dB/km | £0.36 |
1550nm | dB/km | £0.22 | |
Proof stress level | kpsi | ≥100 |
Note: Other parameters meet standard ITU-T G.652
Packaging Details
1.Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's
requirements are also welcomed;
2.Inner packed in fumigated wooden drum, and outer covered by
polyethelene sheet, then sealed by strong wooden battens.
![]() |
