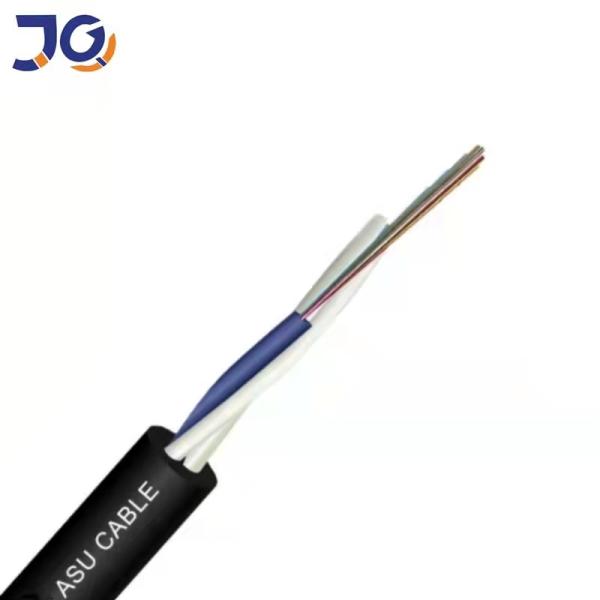

Single Mode G652d 6 12 Core Aerial Self-supported Asu Optic Cable
Fiber Optic Cable (GYFFY) TWO FRP Aerial Fiber Optic Cable (ASU)
Structure
Fiber type:
2-12 fibers G652D/G657A1/G657A2
Uni- loose tube with gel filled
Fiber Brand:
YOFC
Armored:
Non-armored FRP all dielectric mini ADSS outdoor fiber optic cable
Strength Member:
Two Fiber Reinforced Plastic(FRP)
Outer jacket:
Black UV-and moisture-resistant polyethylene (PE)
ASU 80The ASU80 optical cables are self-supporting in spans of up to 80
meters, therefore, they are indicated for cable passage in urban
centers, as within cities the poles are usually, on average, 40
meters apart, which guarantees a good support for this cable.
ASU 100
ASU100 optical cables are self-supporting in spans of up to
100meters, therefore, they are indicated for cable routing in rural
areas, where the poles are usually between 90 and 100 meters apart.
ASU 120
ASU120 optical cables are self-supporting in spans of up to 120
meters, therefore, they are indicated for the passage of cables in
environments where the poles are far apart, such as on roads and
crossings over rivers and bridges.
Technical parameters:
| No. of cable | 1-12 |
| Fiber Model | G.652D |
| Strength Member | Material | FRP |
| Diameter(±0.05)mm | 1.8 |
Loose Tube | Material | PBT |
| Diameter(±0.06)mm | 1.8 |
| Thickness(±0.03)mm | 0.35 |
| The Max.Core NO./Tube | 12 |
| Outer Sheath | Material | PE |
| Cable Diameter(±0.2)mm | 6.7 |
| Cable Weight(±5)kg/km | 38 |
Min. bending radius | Without Tension | 10.0×Cable-φ |
| Under Maximum Tension | 20.0×Cable-φ |
Temperature range (℃) | Installation | -20~+60 |
| Transport&Storage | -40~+70 |
| Operation | -40~+7 |
There are twelve fiber color code.They are A grade fiber.
We are fiber cable manufacturer.We have a factory.
Package: Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's
requirements are also welcomed
We go to exhibitions. We have rich foreign trade experience, you
can save purchasing time.
Don't hesitate to contact me. Whatsapp:+86 18122383351
FQA
Q1.Are you the real manufacturer?
We are the real manufacturer with 10 year’s history.
Q2.What’s the MOQ?
The MOQ of Fiber Optic cable is 1km.
Q3.What’s delivery time?
The general delivery time is 5-7 days after order confirmed. It
depends on the order quantity.
Q4.How to Store the Optical Fiber Cable Properly?
Store the drum indoor before using, the drum should place sideways
not on the end.
Q5. Can you supply customized products and logo?
Yes. We supply OEM service.
Q6.What’s your payment terms?
We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70%
before shipment.
