12 Core Self Supporting FRP Strengthen ASU Cable De Fibra Optica 120M Span

Ask Lasest Price
Brand Name :	Jiqian
Model Number :	ASU
Certification :	ISO9001/CE
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	60000KM/month
Delivery Time :	3-5 working days ,it depends on your order

Add to Cart

Product Details
Company Profile

12 Core Self Supporting FRP Strengthen ASU Cable De Fibra Optica 120M Span

12 Core Self Supporting 120M Span 2 Frp Strengthen Member Aerial ASU Cable De Fibra Optica

Product Description

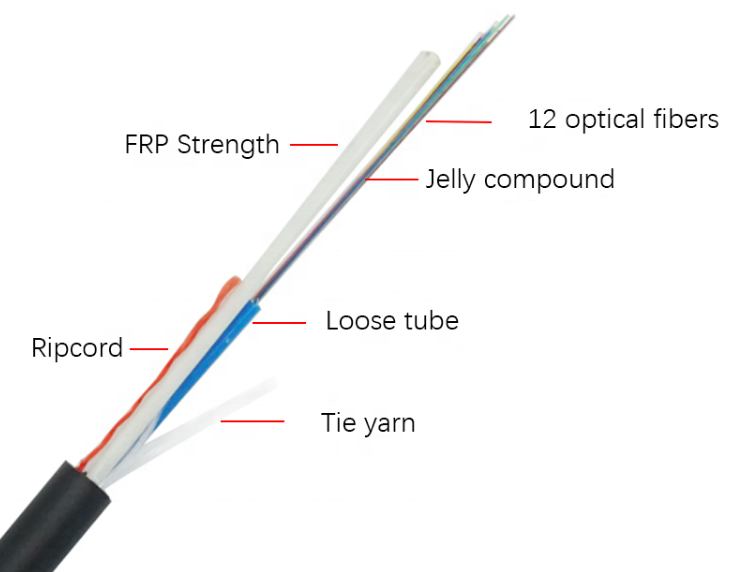

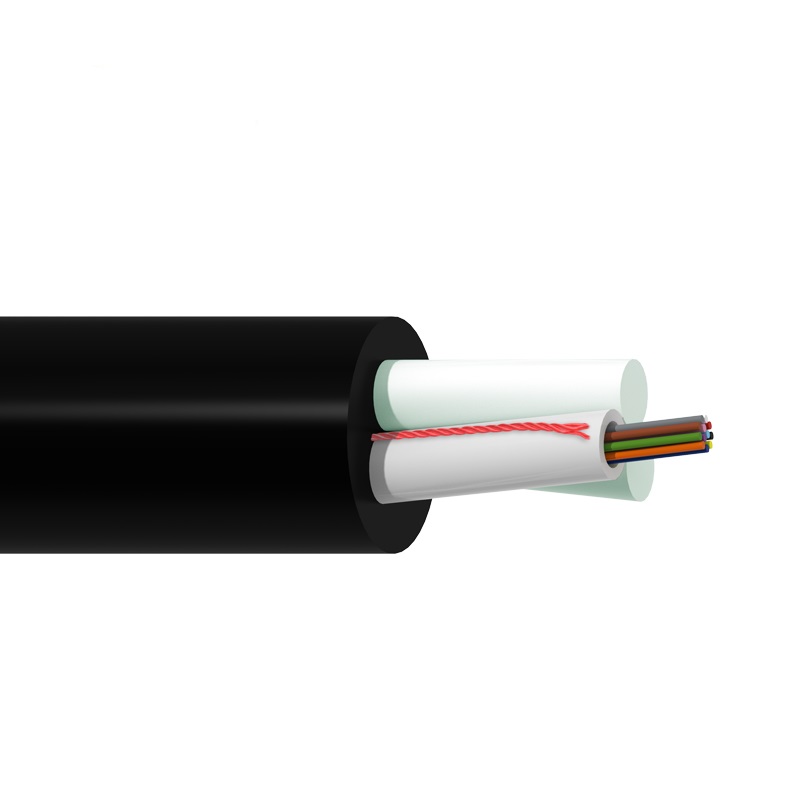

Non-Armored Uni-Tube optical cable with fibers placed in looser
tube.

The cable core is protected with jelly to prevent water intrusion
and migration, and cover with a black polyethylene as outer jacket.

Two embedded FRP or metallic wire provide desire tension.

The red rip cord makes this cable easily to open it.

ASU 100
ASU100 optical cables are self-supporting in spans of up to
100meters.

Therefore, they are indicated for cable routing in rural areas,
where the poles are usually between 90 and 100 meters apart.

ASU 120
ASU120 optical cables are self-supporting in spans of up to 120
meters. Therefore, they are indicated for the passage of cables in
environments

Applicable fields:

Specification

No. of cable		1-12
Fiber Model		G.652D
Strength Member	Material	FRP
	Diameter(±0.05)mm	1.8
Loose Tube	Material	PBT
	Diameter(±0.06)mm	1.8
	Thickness(±0.03)mm	0.35
	The Max.Core NO./Tube	12
Outer Sheath	Material	PE
Cable Diameter(±0.2)mm		6.7
Cable Weight(±5)kg/km		38
Min. bending radius	Without Tension	10.0×Cable-φ
	Under Maximum Tension	20.0×Cable-φ
Temperature range (℃)	Installation	-20~+60
	Transport&Storage	-40~+70
	Operation	-40~+70

We still have self-supporting cables for longer distances on the market.

Such as the ASU500, but the 80, 100 and 120 are the most commonly used due to their applicability.

There are twelve fiber color code.They are A grade fiber.

All products will have been strictly quality checked in house before packing.

All products will be well packed before shipment.

We are fiber cable manufacturer. We have a factory.

We have rich experience in foreign trade.

Give us a chance to server you, saving your time and money.

Contact me!!! Whatsapp & Wechat: +8618122383351
