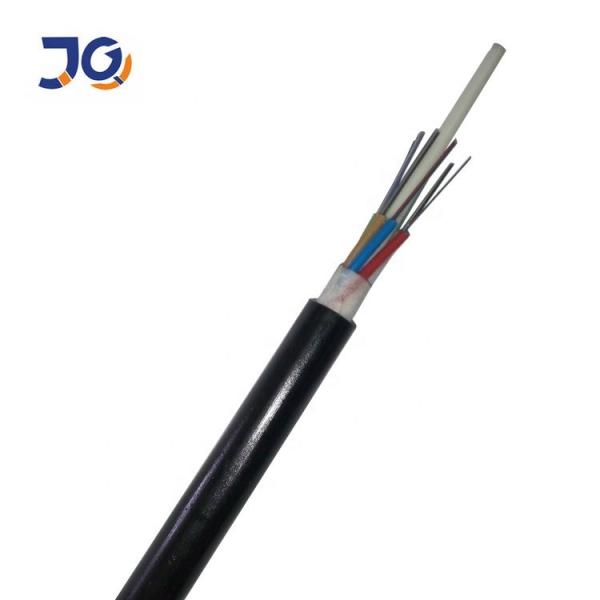

24 core single mode fiber optic cable,Non-metallic Strength Member
Non-armored Cable GYFTY
The fibers, 250μm, are positioned in a loose tube which is made of
a high modulus plastic. All the tubes are filled with a water-
resistent filling compound. We use the FRP(fiber reinforced
plastic) as the strength member. The optical cable have a very good
mechanical and temperature performance. You don't need to worry
about the crush resistance and flexibility during the storage and
operating.
Cable Performance
Item |
Contents | Value |
| 6/12/24 | 48 | 72 | 96 |
| Structure | Type | 1+6 | 1+6 | 1+8 | 1+12 |
Loose tube | Max Fiber counts/tube | 6 | 12 | 12 | 12 |
| Outer diameter (mm) | 1.9±0.1 | 2.2±0.1 | 2.2±0.1 | 2.2±0.1 |
Central strength member | Material | FRP |
| Diameter (mm) | 1.4 | 1.6 | 2.0 | 2.2 |
| PE layer diameter (mm) | -- | -- | | 3.5 |
| Peripheral strength member | Material | FRP |
Sheath | Material | HDPE |
| Color | Black |
| Thickness (mm) | Nominal: 1.6 |
| Cable diameter(mm) Approx. | 9.8±0.2 | 10.0±0.2 | 10.5±0.3 | 11.8±0.3 |
| Cable weight(kg/km) Approx. | 85 | 89 | 99 | 124 |
Fiber parameter
| Parameter | Specification |
| MFD (1310nm) | 8.7~9.5 um |
| Cladding diameter | 125±1.0um |
| Fiber diameter | 235~255um, with UV coating, and colored to : 250±15um |
| Core/cladding concentricity error | ≤ 0.6um |
| Coating/cladding concentricity error | ≤ 12.0um |
| Cladding non circularity | ≤ 1.0% |
| Cut off wavelength | λcc ≤1260nm |
Attenuation coefficient |
1310nm: 0.35dB/km max after cabling 1550nm: 0.21dB/km max after
cabling |
Bending-loss performance of optical fiber @1310nm&1550nm |
≤0.05dB (100 turns around a mandrel of 50mm diameter) |
| Polarization mode dispersion maximum individual fibre |
≤0.2ps/√km |
| Polarization mode dispersion link value | ≤0.1ps/√km |
| Zero-dispersion wavelength | 1300~1324nm |
| Zero-dispersion slope | ≤0.092ps/nm2·km |
FAQ:
1,Q:Are you a factory or trade company?
A:We are a factory
2,Q:What is the MOQ?
A:The MOQ of Fiber Optic cable is 1km.
3.Q:Which brand of fiber do you use?
A:YOFC,Fiberhome,etc
4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our
customers as we know business is always from small order.
5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It
depends on the order quantity.
6.Can you supply customized products and logo?
A:Yes. We supply OEM service.
7.What’s your payment terms?
A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before
shipment.
